CRL EH260 Brass Wall-to-Glass Single Hinges

Your Price: $36.91

Retail Price:$44.18

Your Savings:$7.27(16%)

CRL EH260 Brass Hinges for wall-mounted glass, supporting 1/4" to 5/16" thickness. Durable forged brass with protective vinyl pads.

Part Number : CRL_EH260

Availability: 173 In Stock

Quantity

Description

CRL EH260 Brass Wall-to-Glass Single Hinges

C.R. Laurence EH260 Brass Single Wall-to-Glass Hinges are expertly designed for wall-mounted glass applications, providing a robust and stylish solution for your door hardware needs. Constructed from forged brass, these hinges ensure durability while featuring a screw attachment for secure installation. The hinges come with clear vinyl pad inserts that protect the glass, enhancing longevity and functionality. These hinges accommodate glass thicknesses ranging from 1/4" to 5/16" (6 to 8 mm) and require a 1/2" (12 mm) hole for mounting. With a polished brass finish, they add an elegant touch to any interior, while the lacquered finish helps maintain their appearance over time. Maximum door width is 14" (356 mm), and the weight capacity is rated at 10 lbs. (4.5 kg), making them ideal for lightweight glass doors. Packaged in pairs, the C.R. Laurence EH260 hinges are not only an aesthetic choice but also adherence to quality and compliance standards. It's important to note that while brass is durable, it may undergo oxidation over time, potentially leading to a tarnished look. For seamless integration and reliable performance, trust in C.R. Laurence's commitment to exceptional craftsmanship.

Brass Single Wall-to-Glass Hinges

For 1/4" to 5/16" (6 to 8 mm) Glass
Two Per Package
One 1/2" (12 mm) Hole Required

For wall mounted glass applications. CRL Brass Single Wall-to-Glass Hinges are made of forged brass construction with a screw attachment feature. Clear vinyl pad inserts protect glass. Available in polished brass with lacquered finish or chrome plated. Requires 1/2" (12 mm) holes in glass for mounting. The maximum recommended door width is 14" (356 mm) and maximum weight should not exceed 10 lbs. (4.5 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Brass

Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)

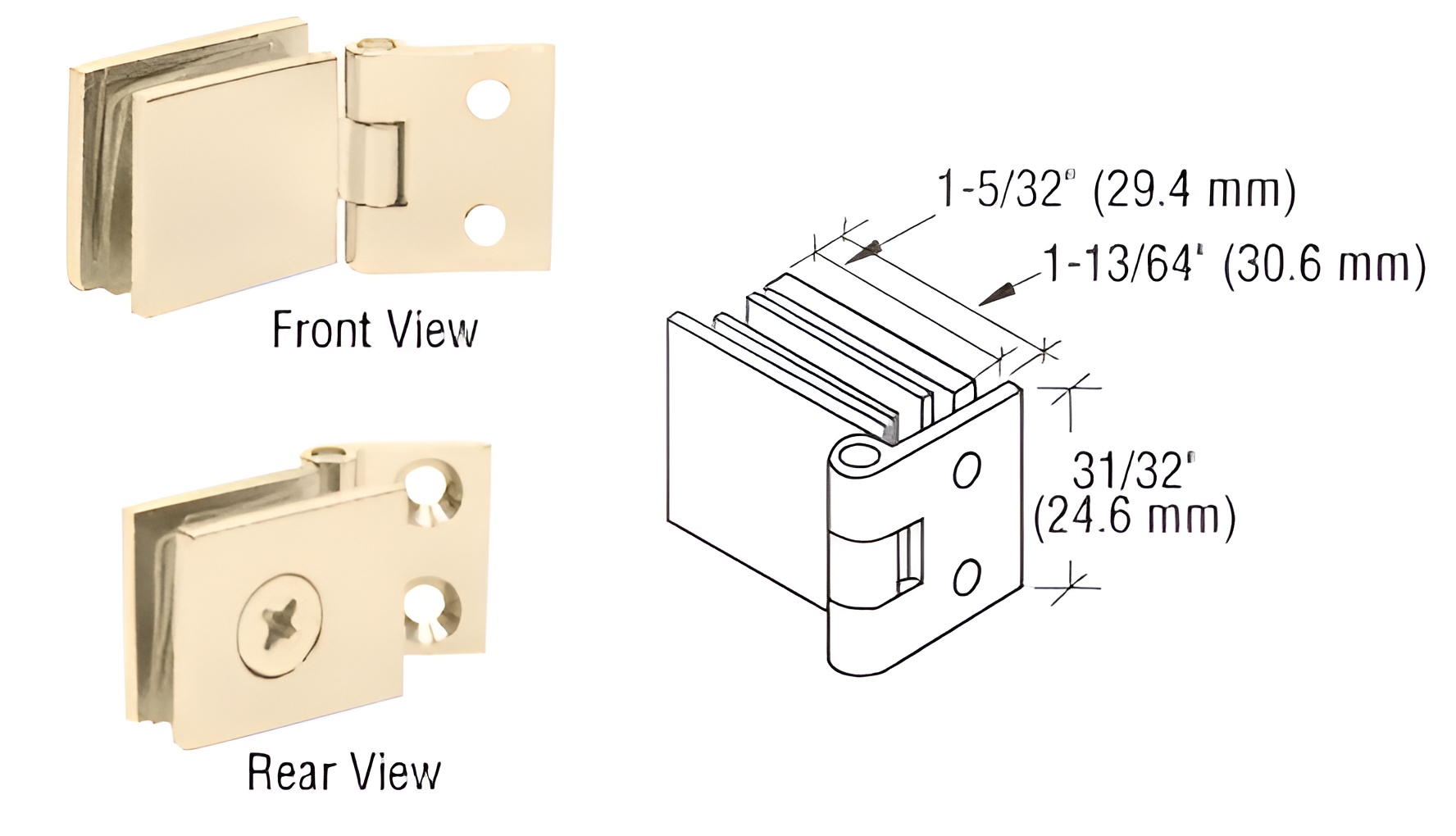

Height: 31/32 in. (24.6 mm)

Material: Brass

Maximum Door Width: 14 in. (355.6 mm)

Pack Quantity: 2

Shipping Limitations: None

Weight Capacity: 10 lbs. (4.5 kg)

Width: 1-13/64 in. (30.6 mm)
