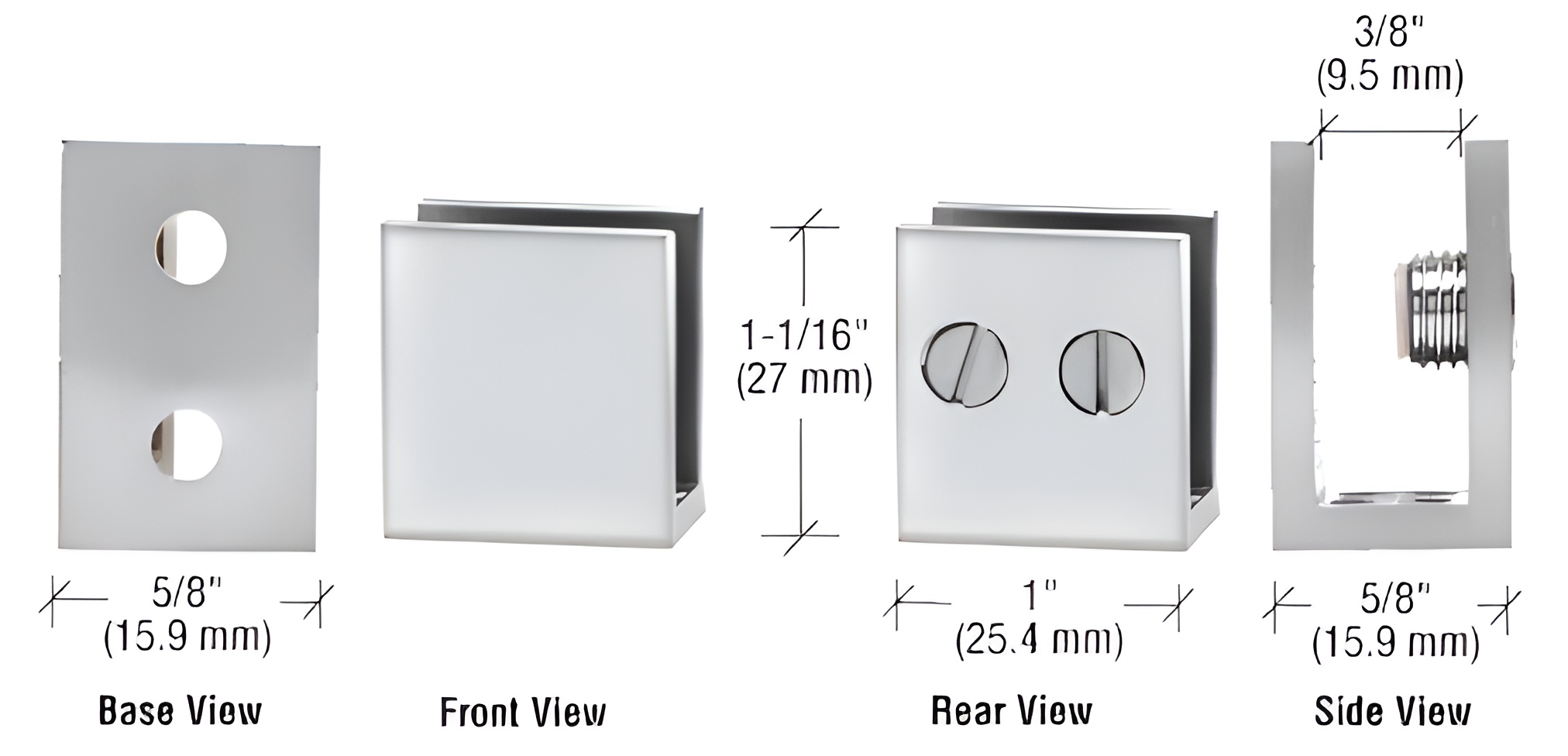

C.R. Laurence EH34 Chrome Double Set Screw Clamp for 1/4" to 5/16" Glass offers a robust solution for mounting glass panels in various applications. Designed for versatility, this solid brass clamp features double plastic-tipped set screws, ensuring a secure grip on glass thicknesses ranging from 1/4" to 5/16" (6 mm to 8 mm). Its innovative design allows for installation without the need to drill holes in the glass, making it ideal for flush glazing or connecting panels in railing systems, office partitions, and display signage. Measuring 1-1/16 inches in height, 1 inch in length, and 5/8 inch in width, the EH34 clamp is compact yet strong enough to support larger glass panels. The polished chrome finish adds an elegant touch, enhancing the overall aesthetic of any installation. For optimal performance, it is recommended to use tempered glass and attach the clamps into wall studs or a wood substrate using CRL Cat. No. 8X112FHPSMS Flat Head Phillips Screws. Each pack contains one clamp, providing a reliable and efficient solution for your glass mounting needs. No shipping limitations apply, and the product is compliant with safety regulations. Choose C.R. Laurence for quality and innovation in architectural glass solutions.
Chrome Double Set Screw Clamp for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 1-1/16 in. (27 mm)
Length: 1 in. (25.4 mm)
Material: Brass
Shipping Limitations: None
Width: 5/8 in. (15.9 mm)
