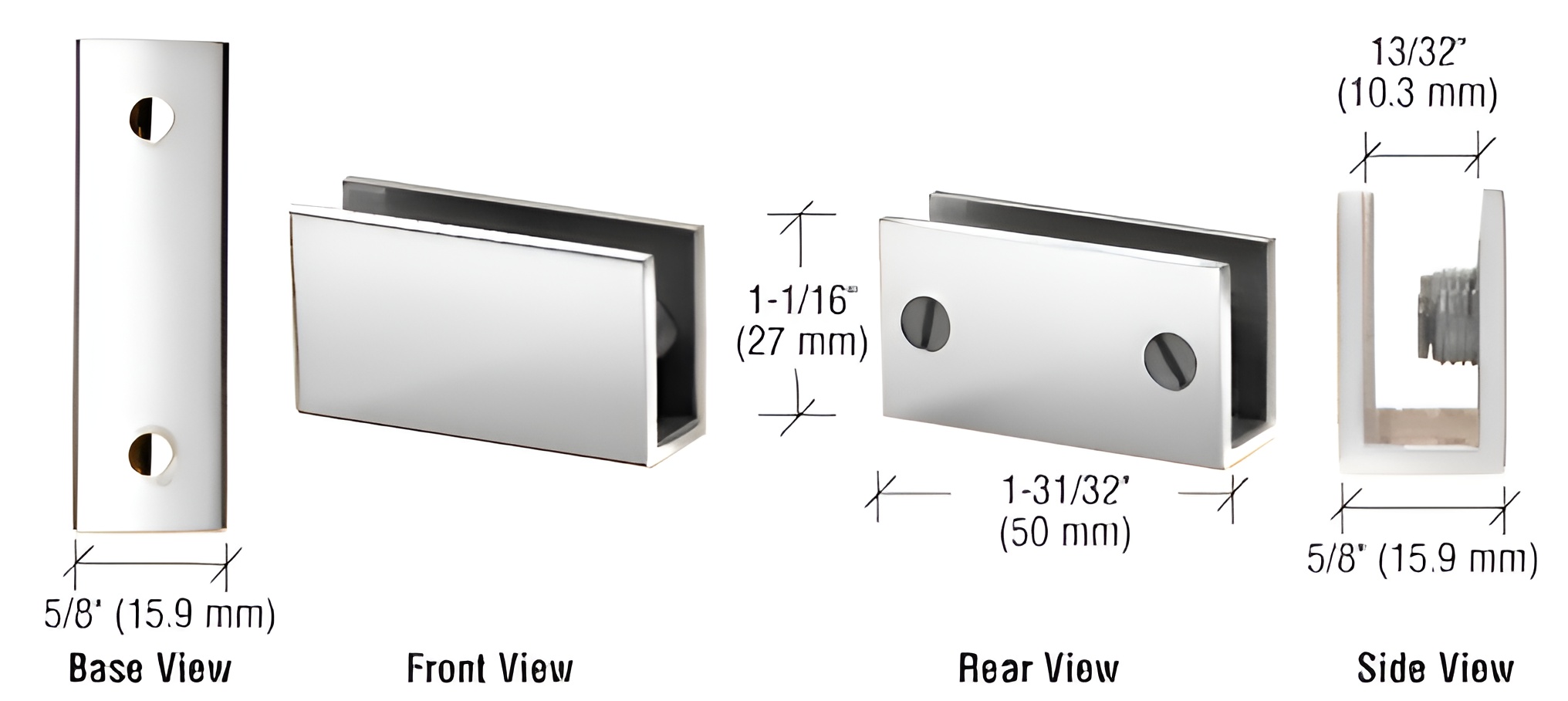

C.R. Laurence EH38 Chrome Long Set Screw Clamp for 1/4" to 5/16" Glass is an essential solution for securely mounting glass in a variety of applications. Designed to accommodate glass thicknesses ranging from 1/4 inch (6 mm) to 5/16 inch (8 mm), this clamp allows for effortless installation without the need for drilling holes. The innovative design employs two plastic tipped set-screws to hold the glass firmly in place, making it ideal for flush glazing, connecting panels for railing systems, or attaching shelves to walls. For optimal performance, it is recommended that the shelf depth does not exceed 5 inches (127 mm) and that the clamps are anchored into wall studs or a wood substrate. The clamp is crafted from durable brass and finished in polished chrome, providing both style and strength. Measuring 1 inch (25.4 mm) in height, 1-31/32 inches (50 mm) in length, and 5/8 inch (15.9 mm) in width, it fits seamlessly into various design schemes. To enhance the installation process, utilize Cat. No. 820 Tuff-Pak Tape for 1/4 inch (6 mm) glass. The EH38 clamp not only delivers reliability but also elevates the aesthetic appeal of any project.
Chrome Long Set Screw Clamp for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 1 in. (25.4 mm)
Length: 1-31/32 in. (50 mm)
Material: Brass
Shipping Limitations: None
Width: 5/8 in. (15.9 mm)
