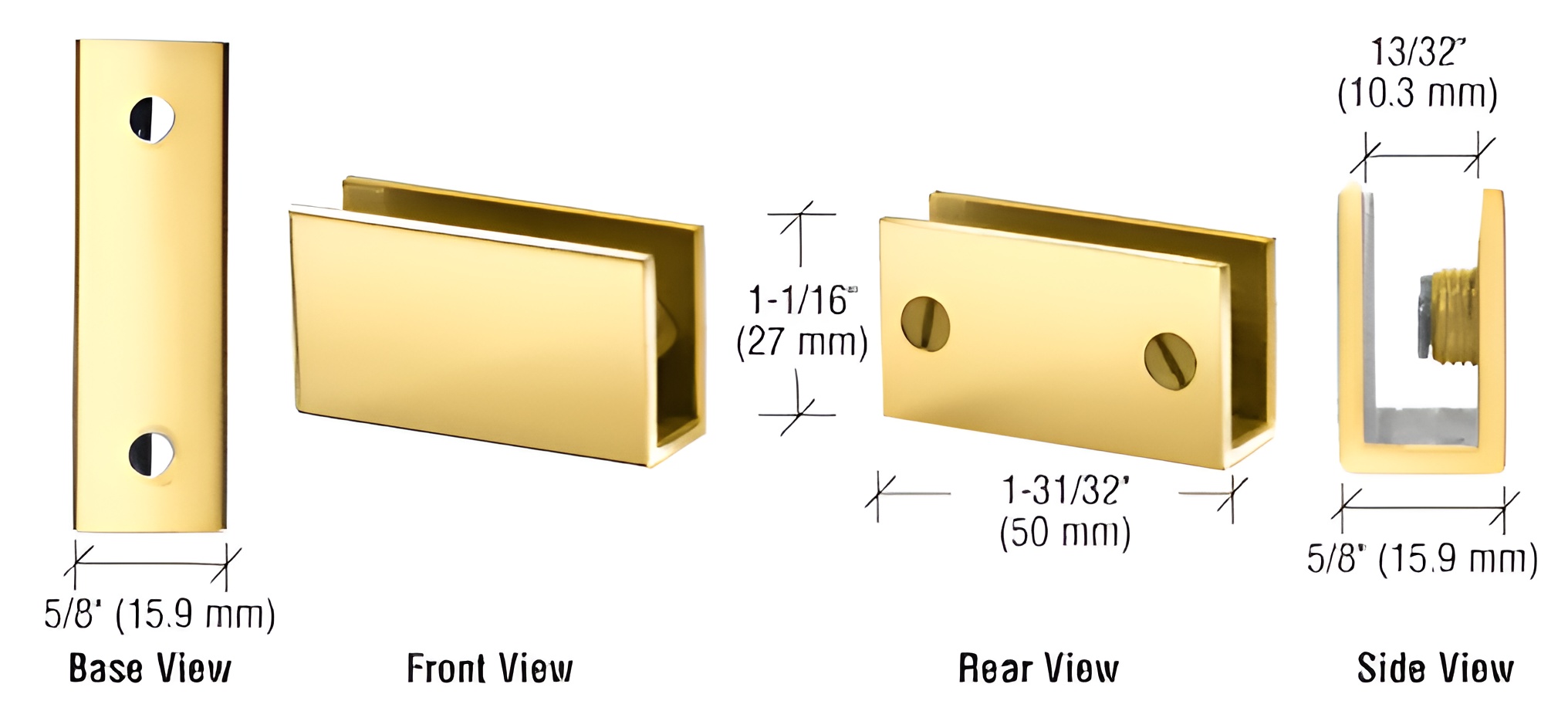

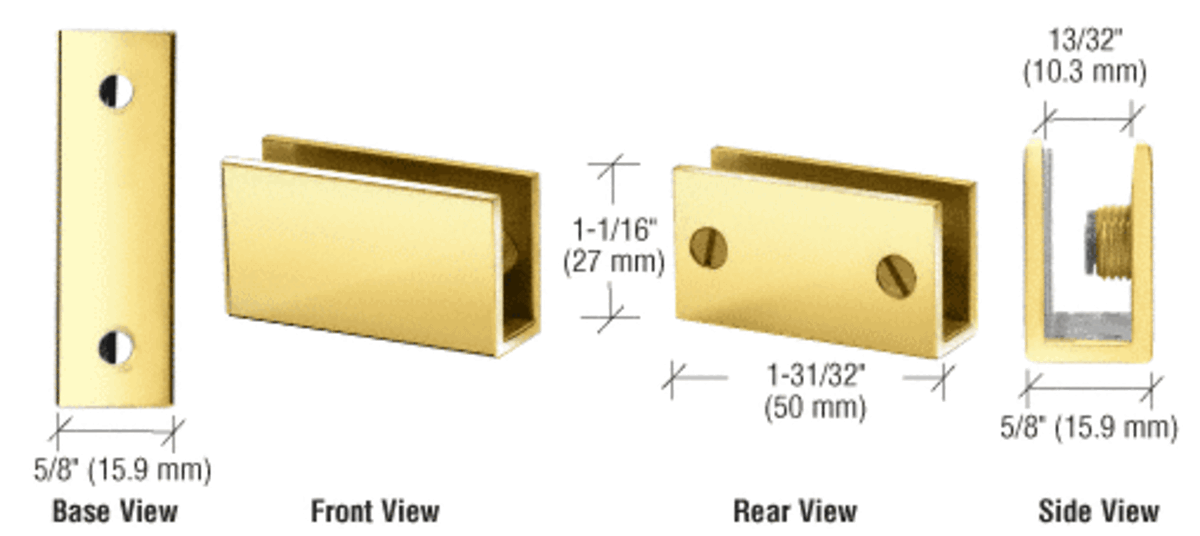

C.R. Laurence EH40 Brass Long Set Screw Clamp for 1/4" to 5/16" Glass offers an innovative solution for securely mounting glass in various applications. Designed to accommodate glass thicknesses from 1/4" to 5/16" (6 mm to 8 mm), this clamp allows for versatile installation options, whether for flush glazing, connecting panels in railing systems, or attaching shelves to walls. The strength of the long clamp is enhanced by two plastic-tipped set screws that ensure a firm grip on the glass without the need for drilling holes, streamlining the installation process. With a polished brass finish, the clamp not only provides durability but also an elegant aesthetic. However, it is important to note that brass can oxidize over time, potentially resulting in a tarnished appearance. For optimal performance, it is recommended that shelf depth does not exceed 5" (127 mm) and that installation is performed into wall studs or wood substrates using #8 flat head screws. Measuring 1-31/32" in length and 1" in height, with a width of 5/8", the EH40 clamp effectively blends functionality with style, making it a reliable choice for both building professionals and discerning homeowners.
Brass Long Set Screw Clamp for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 1 in. (25.4 mm)
Length: 1-31/32 in. (50 mm)
Material: Brass
Shipping Limitations: None
Width: 5/8 in. (15.9 mm)
