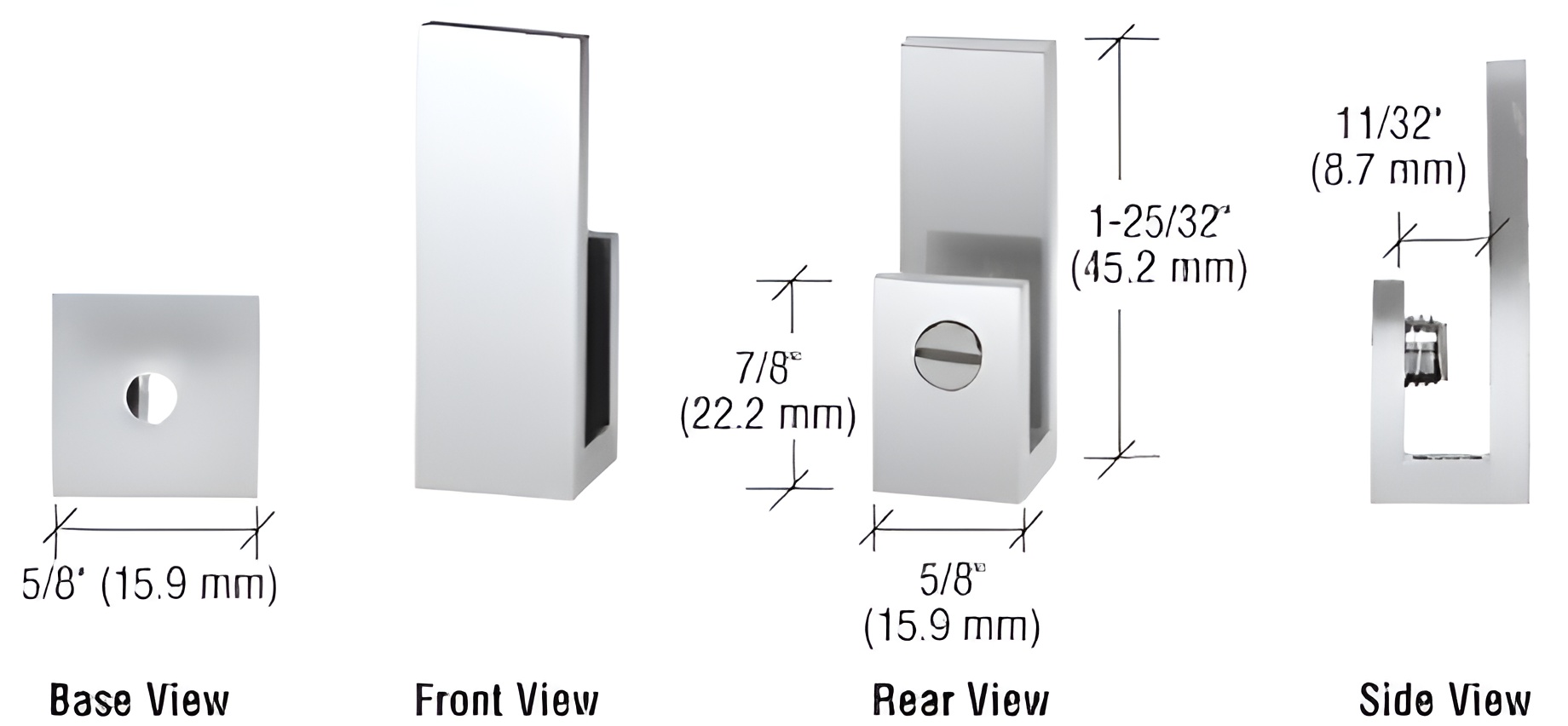

C.R. Laurence EH42 Chrome "J" Set Screw Clamp for 1/4" to 5/16" Glass offers a highly versatile solution for securely mounting glass without the need for drilling. Crafted from solid brass and finished in a polished chrome, this clamp is suitable for glass thicknesses ranging from 1/4" to 5/16" (6 to 8 mm), making it ideal for various applications including flush glazing, railing systems, and wall-mounted shelves. The EH42 clamp features a plastic-tipped set screw that provides a secure hold on the glass while minimizing the risk of damage. It can be easily attached to any substrate, and each clamp comes with a wood screw for straightforward installation. However, it is recommended that shelves do not exceed 5" (127 mm) in depth and that clamps are installed into wall studs or a suitable wood substrate for optimal support. With compact dimensions of 1-25/32" (45.2 mm) in height on the blank side and 7/8" (22.2 mm) on the set screw side, and a width of 3/4" (19.1 mm), the EH42 clamp is designed to blend seamlessly into your architectural projects. Each clamp is sold individually, allowing for tailored quantities based on your specific needs.
Chrome "J" Set Screw Clamp for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height - Blank Side: 1-25/32 in. (45.2 mm)
Height - Set Screw Side: 7/8 in. (22.2 mm)
Length: 5/8 in. (15.9 mm)
Material: Brass
Shipping Limitations: None
Width: 3/4 in. (19.1 mm)
