C.R. Laurence EH50 Chrome Long Leg Set Screw Clamp for 1/4" to 5/16" Glass offers exceptional versatility for a range of glass applications. Designed specifically for 1/4" to 5/16" (6 to 8 mm) tempered glass, this solid brass clamp is ideal for securely attaching shelves to walls while providing added support through its extra-long leg design. The EH50 clamp can be easily mounted to any substrate, ensuring robust glass support. The glass is held firmly in place with a plastic-tipped set screw, which prevents damage while ensuring stability. Each clamp package includes two wood screws, facilitating straightforward installation. These clamps are particularly effective for addressing glass mounting challenges, such as flush glazing and connecting panels for railing systems. It is important to note that for optimal use, the depth of the shelf should not exceed 5" (127 mm), and clamps should be installed into wall studs or a wooden substrate. With a polished chrome finish, the EH50 clamp combines elegance and functionality. The overall height of the clamp is 1-29/32 inches (48.4 mm) on the blank side and 1-1/32 inches (26.2 mm) on the set screw side. This product is compliant with shipping regulations and has no shipping limitations, making it a reliable choice for both professionals and knowledgeable homeowners.
Chrome Long Leg Set Screw Clamp for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)

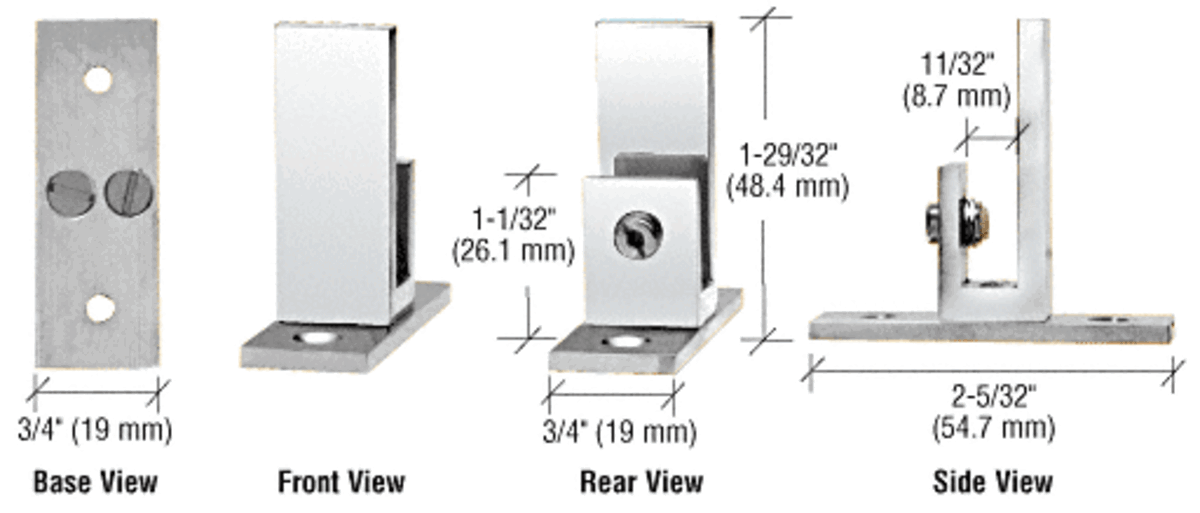

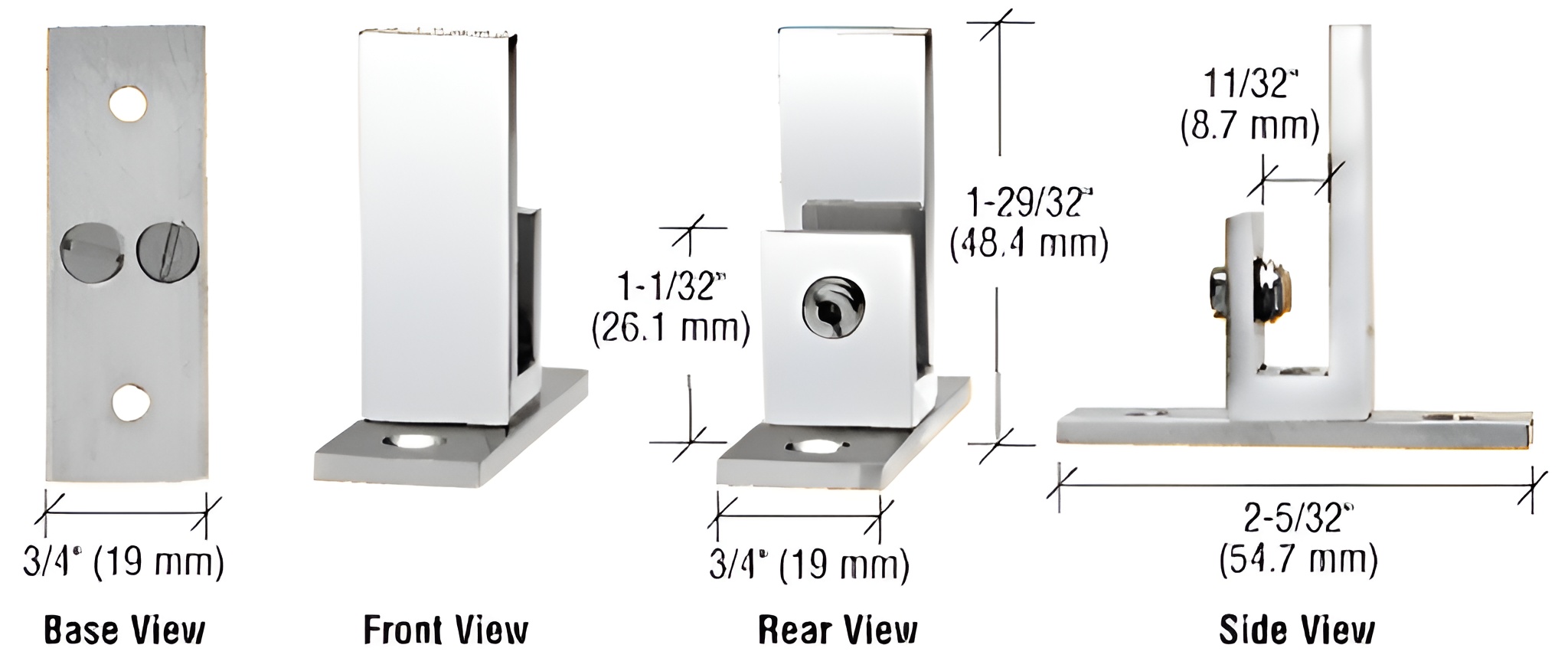

Height - Overall Blank Side: 1-29/32 in. (48.4 mm)
Height - Overall Set Screw Side: 1-1/32 in. (26.2 mm)
Length - Base Plate: 2-5/32 in. (54.8 mm)
Length - Clamp: 3/4 in. (19.1 mm)
Material: Brass
Shipping Limitations: None
Thickness - Base Plate: 1/8 in. (3.2 mm)
Width - Base Plate: 3/4 in. (19.1 mm)
Width - Clamp: 3/4 in. (19.1 mm)
