C.R. Laurence EH52 Brass Long Leg Set Screw Clamp for 1/4" to 5/16" Glass offers exceptional versatility for your glass mounting needs. Designed specifically for tempered glass thicknesses ranging from 1/4" to 5/16" (6 to 8 mm), this solid brass clamp is perfect for securely attaching shelves to walls, as its extra-long leg provides enhanced support. The EH52 clamp is engineered to tackle a variety of glass applications, including flush glazing and connecting panels for railing systems. Its reliable design allows for easy attachment to any substrate, ensuring your glass is held firmly in place with a plastic-tipped set screw. Each clamp comes complete with two wood screws for straightforward installation, making it a practical choice for both professional builders and skilled homeowners. For optimal performance, it is important to note that shelf depth should not exceed 5" (127 mm), and clamps should be installed into wall studs or a suitable wood substrate. The polished brass finish adds a touch of elegance, although it is advisable to be aware of potential oxidation over time. C.R. Laurence's EH52 clamp is the ideal solution for those seeking a durable, stylish, and versatile glass mounting option.
Brass Long Leg Set Screw Clamp for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)

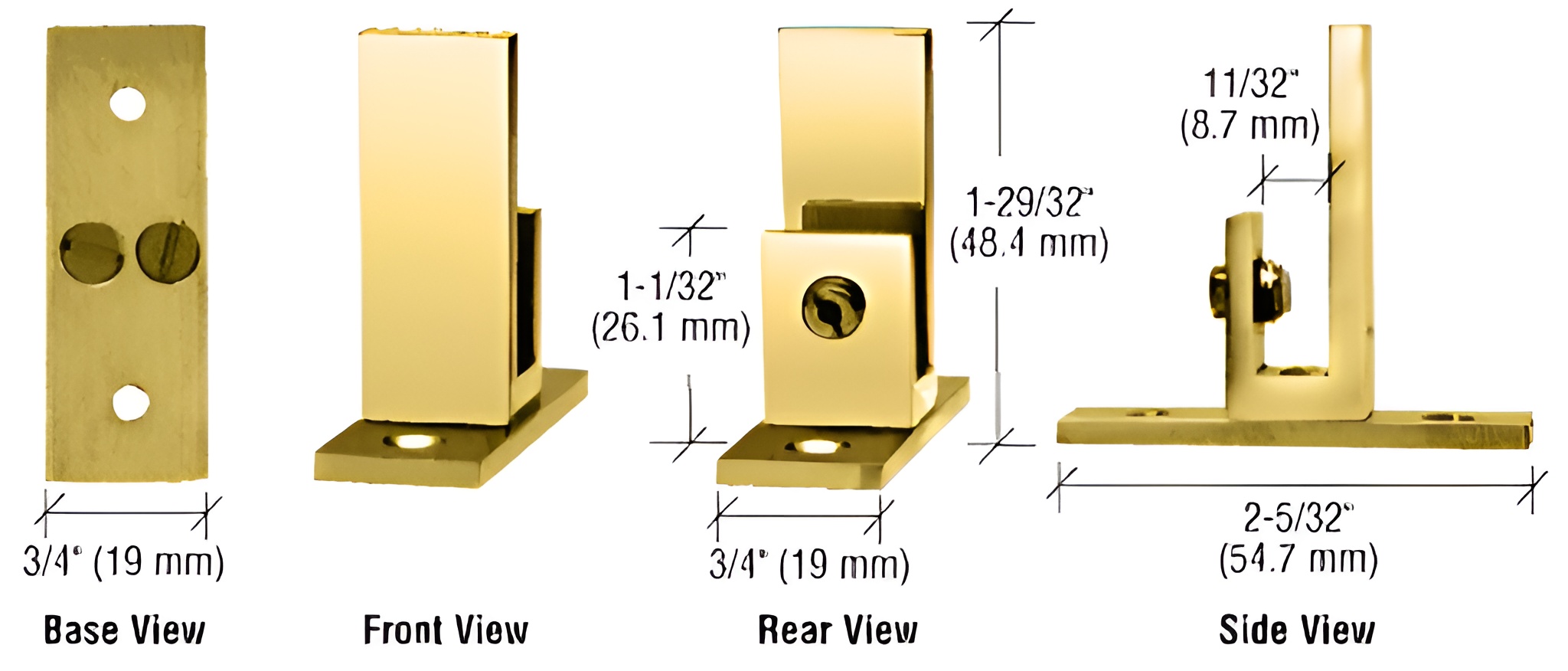

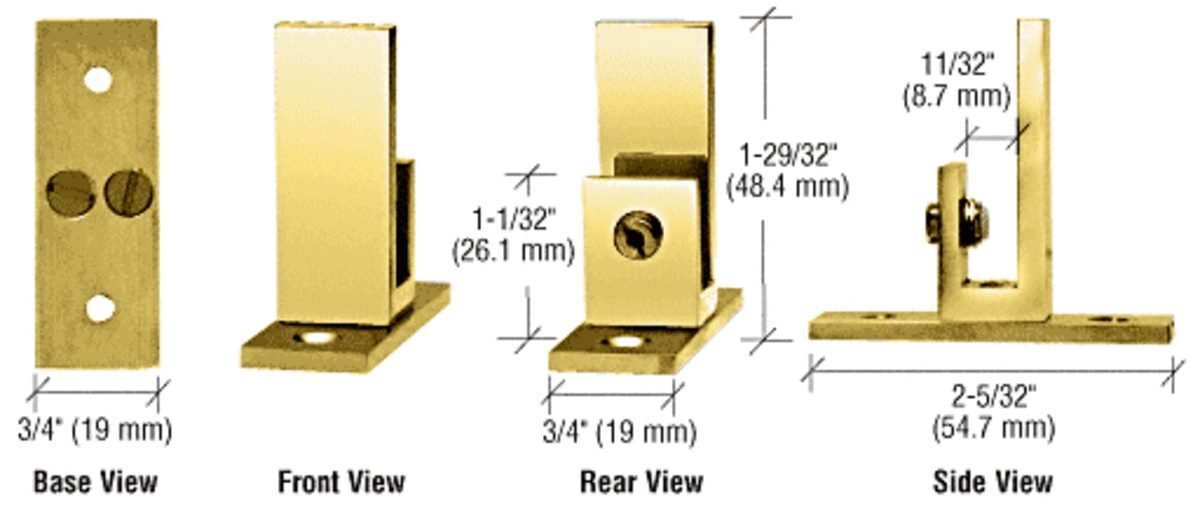

Height - Overall Blank Side: 1-29/32 in. (48.4 mm)
Height - Overall Set Screw Side: 1-1/32 in. (26.2 mm)
Length - Base Plate: 2-5/32 in. (54.8 mm)
Length - Clamp: 3/4 in. (19.1 mm)
Material: Brass
Shipping Limitations: None
Thickness - Base Plate: 1/8 in. (3.2 mm)
Width - Base Plate: 3/4 in. (19.1 mm)
Width - Clamp: 3/4 in. (19.1 mm)
