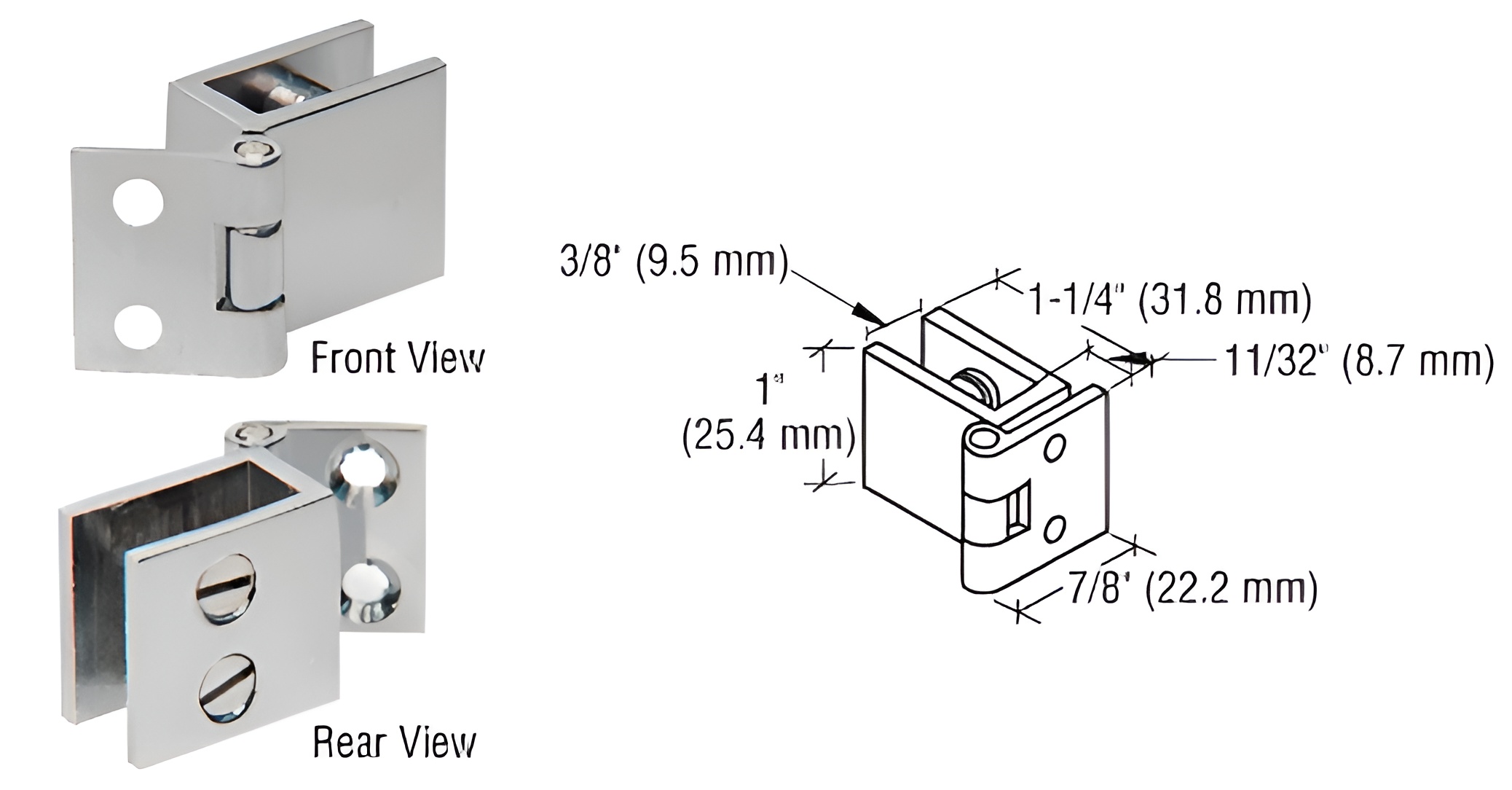

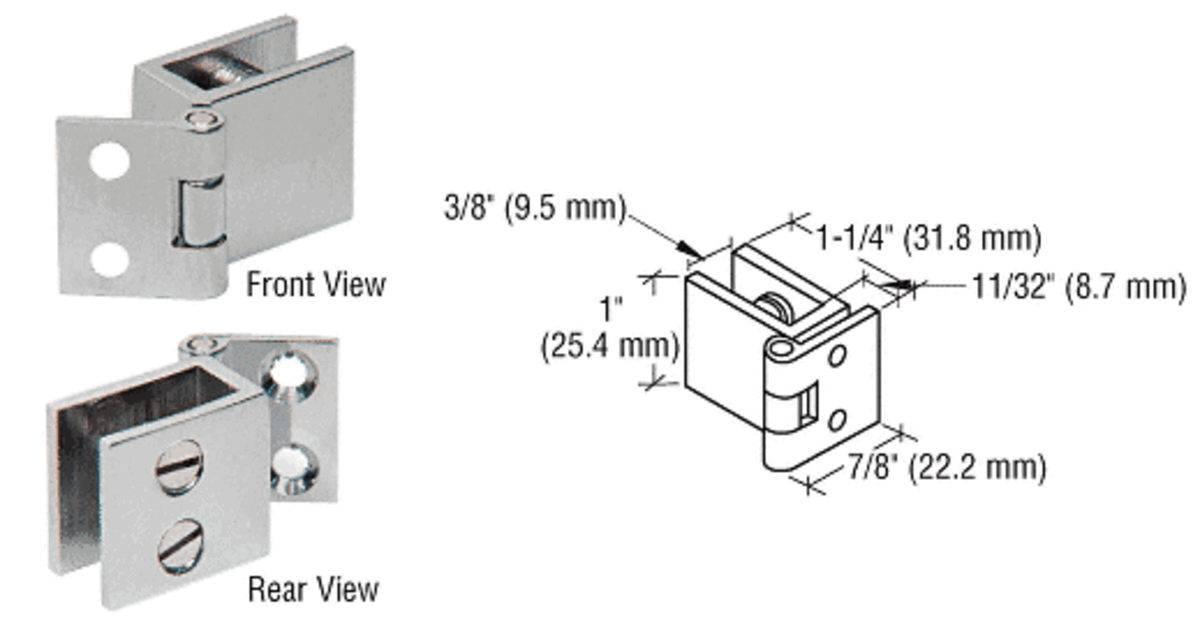

C.R. Laurence EH73 Brushed Nickel Small Set Screw Hinge for 1/4" to 5/16" Glass offers a reliable and elegant solution for glass-to-wall installations. Crafted from durable brass and finished in brushed nickel, this hinge combines aesthetic appeal with robust functionality. Designed for monolithic tempered glass, it accommodates glazing thicknesses ranging from 1/4 inch to 5/16 inch (6 mm to 8 mm), making it versatile for various applications. One of the standout features of the EH73 hinge is its no-drill attachment mechanism, utilizing plastic-tipped set screws to secure the glass without the need for holes or cut-outs. This not only simplifies installation but also preserves the integrity of the glass. With a maximum recommended door width of 16 inches (406 mm) and a weight capacity of 8 lbs. (3.6 kg), this hinge is ideal for lightweight glass doors. Each pack contains two hinges, along with matching finish wood screws, ensuring a cohesive look for your project. Whether you're a building professional or a knowledgeable homeowner, the C.R. Laurence EH73 hinge is an excellent choice for enhancing your glass installations with style and ease.
Brushed Nickel Small Set Screw Hinge for 1/4" to 5/16" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Nickel
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 1 in. (25.4 mm)
Material: Brass
Maximum Door Width: 16 in. (406.4 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 8 lbs. (3.6 kg)
Width: 1-1/4 in. (31.8 mm)
