CRL EHK98BA Brite Anodized 95" EZ-Adjust Shower Door Header Kit

CRL EHK98BA Brite Anodized 95" EZ-Adjust Shower Door Header Kit

C.R. Laurence EHK98BA Brite Anodized 95" EZ-Adjust Shower Door Header Kit is designed to enhance the safety and aesthetics of frameless shower enclosures that do not extend to the ceiling. This innovative header acts as a structural crown over your glass, ensuring stability while allowing for side-to-side hinge adjustments after installation, making it easier to achieve a precise fit. Constructed from heavy 6063-T5 aluminum alloy, the EZ-Adjust Header Kit is robust and available in a striking Brite Anodized finish. It accommodates various glass thicknesses-5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm)-and comes in stock lengths of 95" and 144" (2.49 and 3.66 m), which can be customized as needed. The kit includes a 36" Snap-In Filler Insert for the door pocket, Deluxe Wall Mount Brackets, and 8' of clear glazing vinyl for a complete installation solution. Importantly, this kit is compatible with Prima Hinge Model PPH06 and Senior Prima Hinge Model SRPPH06, eliminating the need for drilling through the header when using these specific hinges. Elevate your shower design with the reliability and versatility of the CRL EZ-Adjust Shower Door Header Kit.

Brite Anodized 95" EZ-Adjust Shower Door Header Kit

• Secures Shower Enclosure Not Going to Ceiling
• Use Monolithic Tempered Glass
• Allows Horizontal (Side-to-Side) Adjustment of Hinge After Installation
• No Hole Drilling Required Through Header for Adaptor, if Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06
• Constructed of Heavy 6063-T5 Aluminum Alloy
• For Use with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) Thick Glass

The CRL EZ-Adjust Shower Door Header Kit provides a safe and beautiful frameless shower installation by securing enclosures that do not reach the ceiling. Acting as a "crown" over the top of the glass, the EZ-Adjust Shower Door Header Kit is bracketed to each wall. The EZ-Adjust System allows adjustability after installation in that the hinge (PPH06 and SRPPH06 only) can be moved left and right as desired. No drilling through the Header is required for an Adaptor Block if using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06, due to a built-in adaptation to the hinges. Constructed of heavy 6063-T5 aluminum alloy, the EZ-Adjust Header Kit is stocked in up to eight popular finishes. A choice of 95" and 144" (2.49 and 3.66 m) stock lengths allow the user to cut as desired. A Snap-in Filler Insert for the door pocket, along with Wall Mounting Brackets and Clear Glazing Vinyl round out the Kit.


IMPORTANT NOTE: Prima Hinge Model PPH06 and Senior Prima Hinge Model SRPPH06 can be used only with the EZ-Adjust Header System, due to a built-in adaptation to the hinges. No drilling required in Header when using those hinges. If using other Top Mount Pivot Hinges with the EZ-Adjust Header System, an Adaptor Block, and drilling will be required through the Header to accommodate the Adaptor Block.

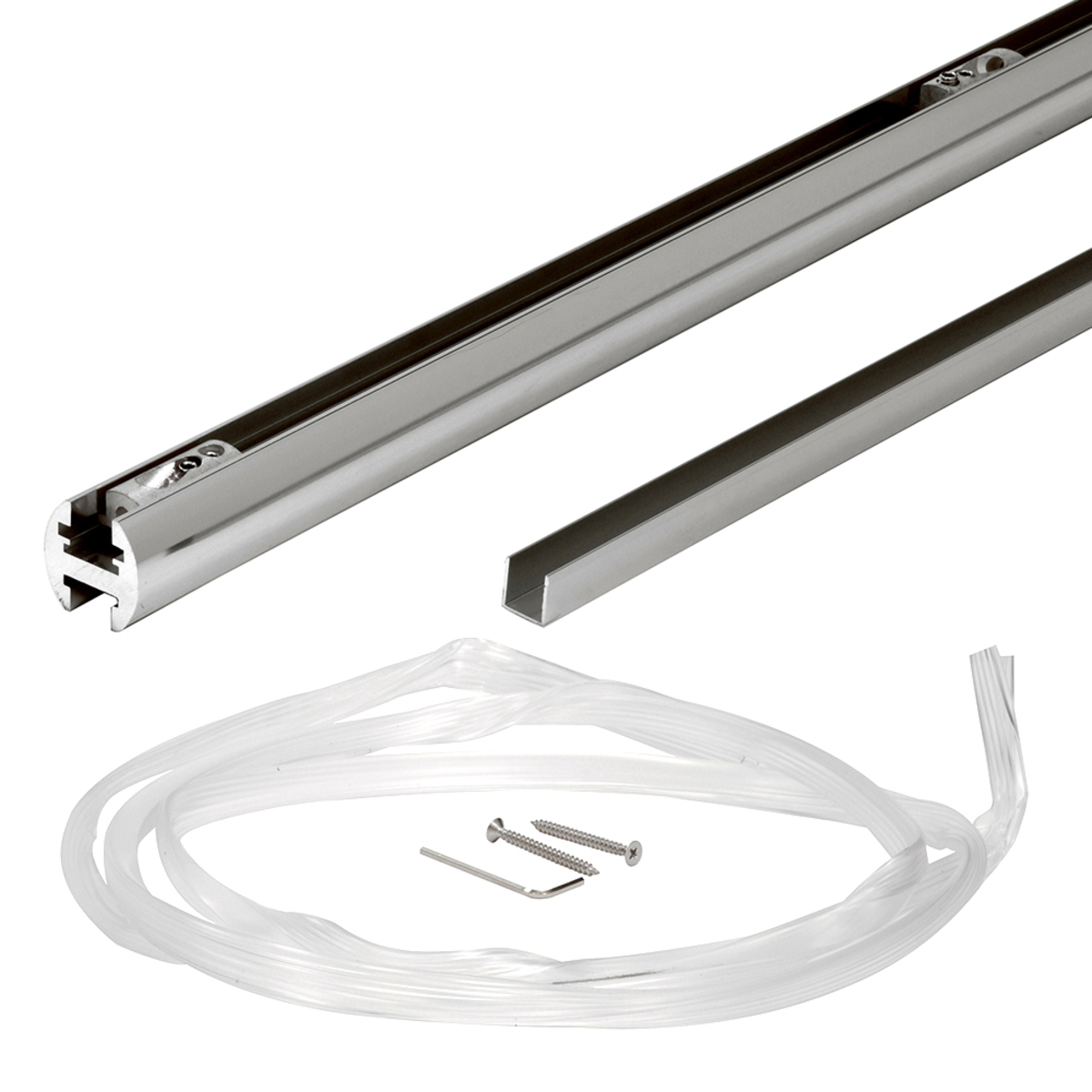

EACH EZ-ADJUST HEADER KIT CONTAINS:
1 – 95" (2.41 m) or 144" (3.66 m) Header Length
1 – 36" (914 mm) Snap-In Filler Insert for Door Pocket
1 – Deluxe Wall Mount Bracket Kit (Two Brackets)
8' (2.44 m) of 5/16" and 3/8" (8 and 10 mm) Clear Vinyl


Product Warning:

Prima Hinge Model PPH06 and Senior Prima Hinge Model SRPPH06 can be used only with the EZ-Adjust Header System, due to a built-in adaptation to the hinges. No drilling required in Header when using those hinges. If using other Top Mount Pivot Hinges with the EZ-Adjust Header System, an Adaptor Block must be ordered separately, and drilling will be required through the Header to accommodate the Adaptor Block. Bracket used for Header attachment is BWB2.
