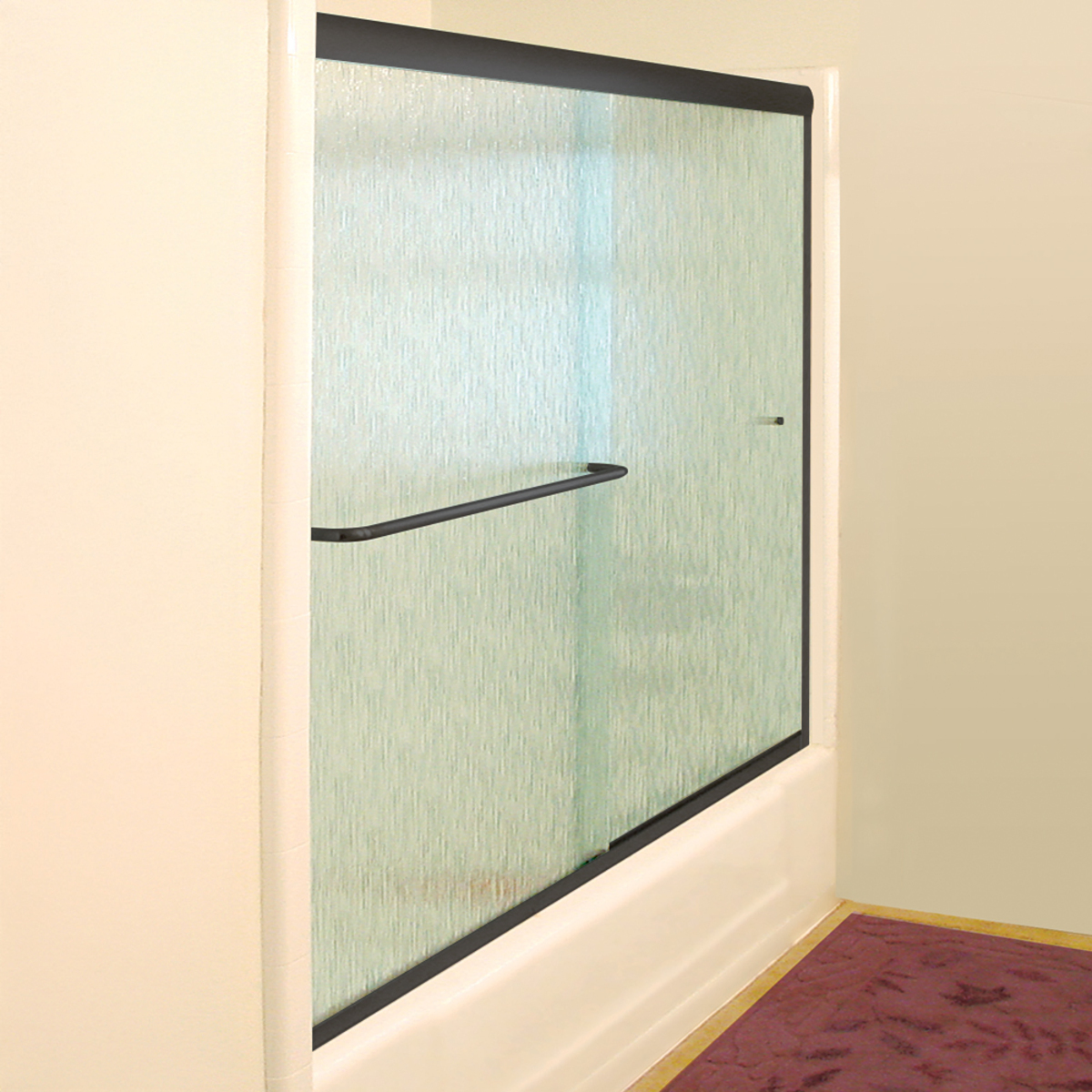

CRL EK1460600RB Oil Rubbed Bronze 60"x60" EK Series Shower Door Kit

CRL EK1460600RB Oil Rubbed Bronze 60"x60" EK Series Shower Door Kit

C.R. Laurence EK1460600RB Oil Rubbed Bronze 60" x 60" Suite "EK" Series Shower Door Kit delivers a sleek, modern aesthetic combined with practical functionality. Designed exclusively for use with 1/4" (6 mm) thick monolithic tempered glass, this frameless sliding shower door kit features a low-profile header that stands at just 2-9/16" (65 mm) tall, offering a choice between a curved or flat appearance to suit your design preferences. The innovative clamp-on hanger bracket eliminates the need for glass drilling, ensuring a smoother installation process while providing a long-lasting, quiet operation. The kit is tailored for inline units with stylish metal side jambs, enhancing both stability and elegance. Available in two stock sizes-60" W x 60" H and 60" W x 72" H-and four finishes including Oil Rubbed Bronze, Brite Anodized, Brite Gold Anodized, and Brushed Nickel, the Suite "EK" Series allows for customization with options for specific dimensions, as long as they do not exceed 60" wide or 72" tall. The material composition includes aluminum extrusions and solid brass components, ensuring durability and a polished look. Elevate your bathroom space with the sophisticated design and reliable performance of this C.R. Laurence shower door kit.

Oil Rubbed Bronze 60" x 60" Suite "EK" Series Shower Door Kit

• Designed for Use Only With 1/4" (6 mm) Thick Glass
• Use Monolithic Tempered Glass
• Low Profile 2-9/16" (65 mm) Header is Reversible So You Can Expose Either the Curved or Flat Side
• Clamp-On Hanger Bracket Eliminates Glass Drilling
• Offered Only in Inline Units With Metal Side Jambs
• Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze in Two Stock Sizes
• Custom Size Units Also Available

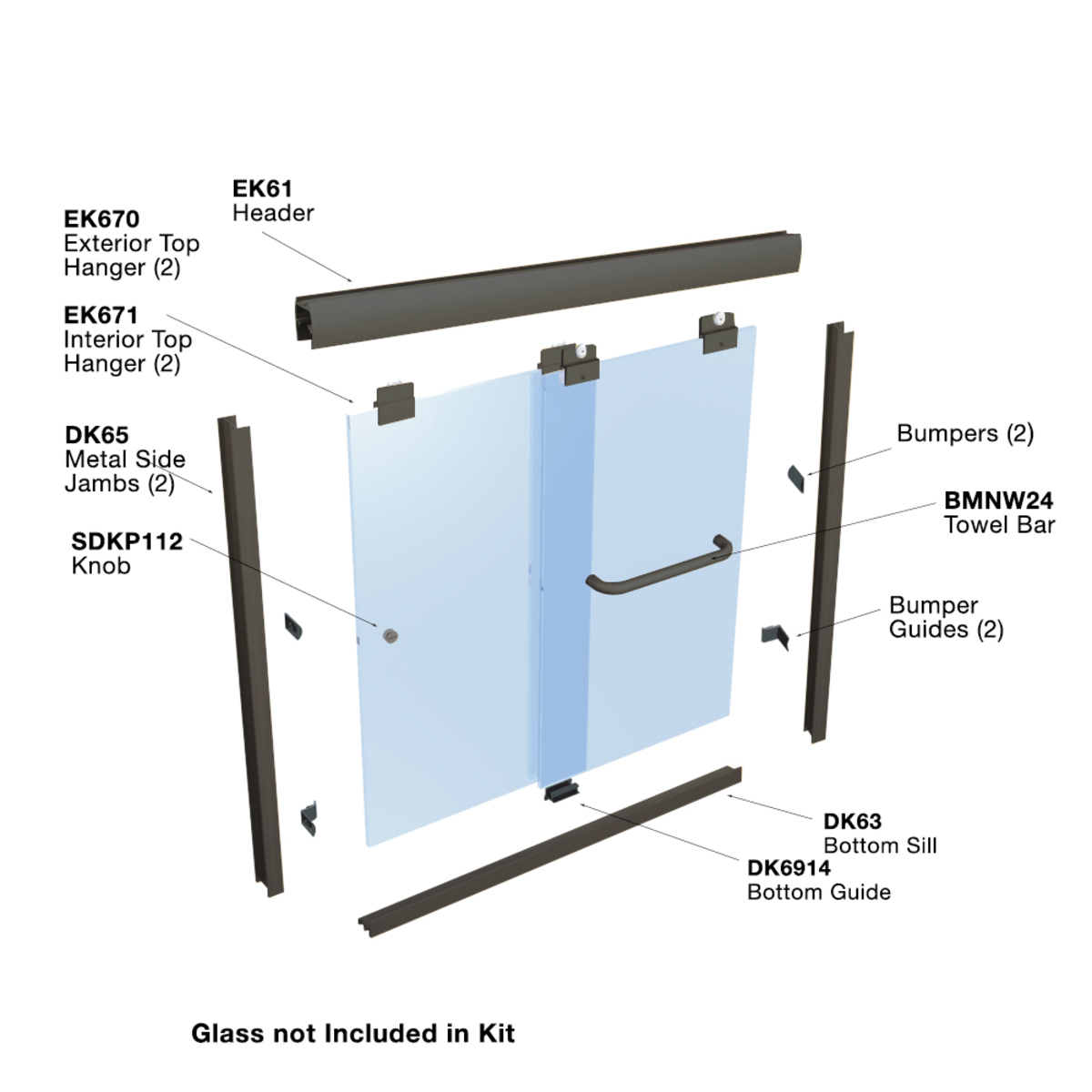

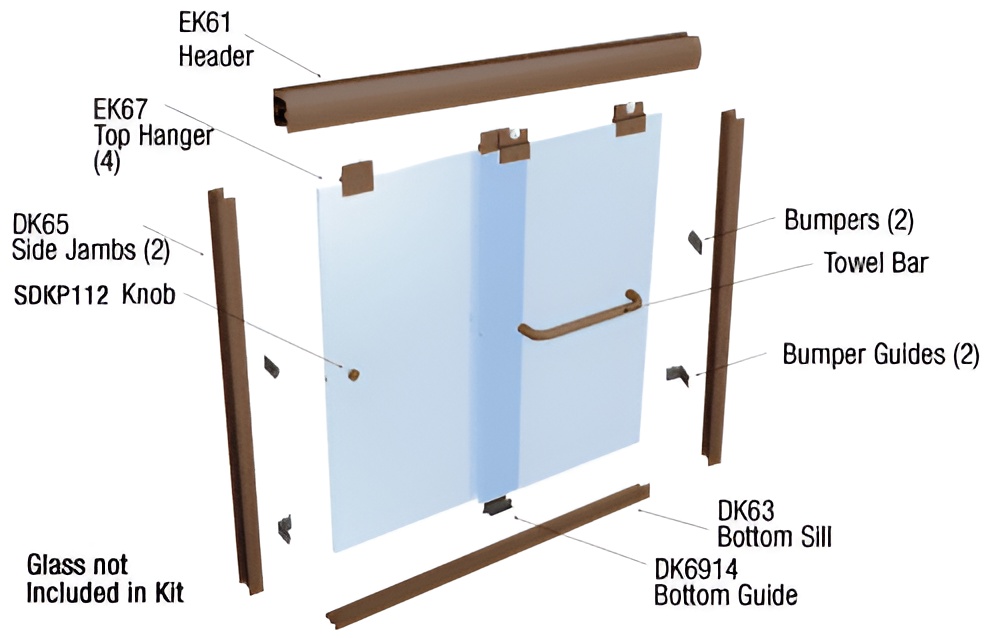

The "EK" Suite Series Frameless Sliding Shower Door Kit for 1/4" (6 mm) thick glass provides an alternative design and mounting method to our Deluxe Cottage Series Sliders. The Hanger Bracket is a cost-reducing device, as it clamps directly onto the glass and eliminates the need for drilling holes (set screws only). The brackets allow for smooth, quiet operation and long service life at a lower cost.


The specially designed Header is only 2-9/16" (65 mm) tall. This reduces the profile of the top metal, and allows more of the frameless 'all-glass' look. It is reversible so the customer has the choice of using the gently curved side, or the flat side with top and bottom edge bevels.

The "EK" Suite Series is available exclusively with metal side jambs, does not offer the clear jamb system, and is available only for inline units. Kits with fixed panels are not available.

Two popular stock sizes are available: 60" W x 60" H (1.52 x 1.52 m) and 60" W x 72" H (1.52 x 1.83 m). Custom inline sizes are also available, but not to exceed 60" (1.52 m) wide or 72" (1.83 m) tall. The "EK" Suite Series comes in four popular finishes.

SPECIFICATIONS:
Material: Extrusions (Aluminum); Towel Bar (Brass Tubing); Knob (Solid Brass)
Glass Thickness: 1/4" (6 mm) (Glass not included in Kit)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole
Maximum Recommended Size: 60" W x 72" H (1.52 x 1.83 m)
