Images may not represent actual product and finish

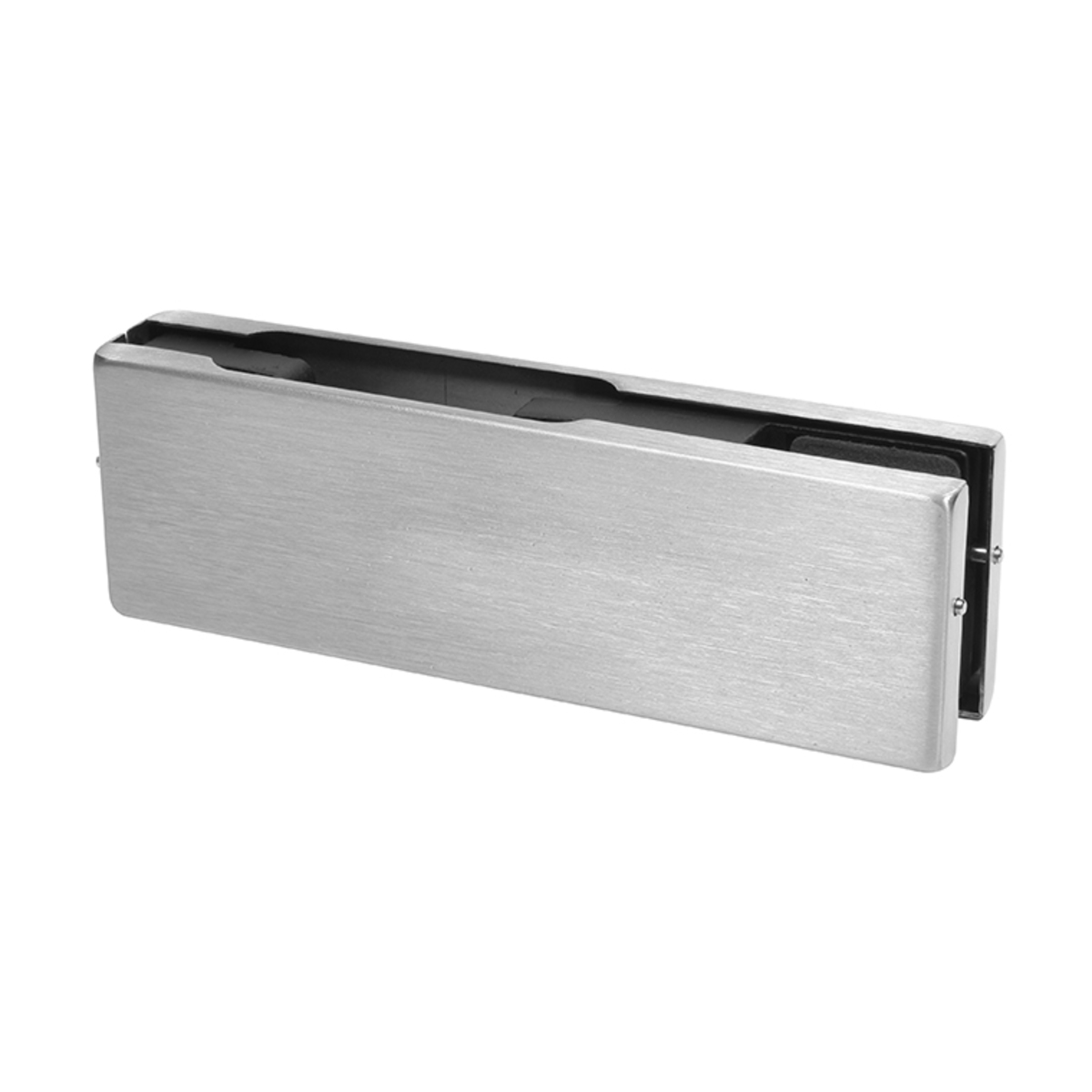

CRL EUR201BS Brushed Stainless EUR Series Patch Fitting - Top/Bottom, No Insert

Your Price: $46.85

Retail Price:$56.08

Your Savings:$9.23(16%)

The CRL EUR201BS Brushed Stainless Patch Fitting offers versatile installation for 3/8" or 1/2" glass with a durable cast body.

Part Number : CRL_EUR201BS

Availability: 737 In Stock

Quantity

Description

CRL EUR201BS Brushed Stainless EUR Series Patch Fitting - Top/Bottom, No Insert

C.R. Laurence EUR201BS Brushed Stainless EUR Series Top or Bottom Patch Fitting - Less Insert offers a versatile solution for glass door applications. Designed to accommodate both top and bottom installations, this patch fitting requires only the appropriate insert for seamless integration. Constructed from a high-density cast body, it features a secure locking mechanism that ensures reliability and safety. This fitting is compatible with 3/8" (10 mm) or 1/2" (12 mm) glass, providing flexibility for various glazing thicknesses. Each unit comes complete with gaskets, cover plates available in your choice of finish, and a detailed template with instructions for straightforward installation. However, note that glass fabrication requires a corner notch for proper fit. The EUR201BS is engineered to support maximum dimensions of 102" in height and 42" in width, with a weight capacity of up to 176 lbs. Be sure to follow the guidelines provided and utilize full door rails for larger doors exceeding these limits. While the brushed stainless steel finish enhances aesthetic appeal, regular maintenance is advised to preserve its factory appearance. Please remember these fittings are not suitable for laminated glass applications. Elevate your glass installations with the C.R. Laurence EUR201BS, a reliable choice for professionals and discerning homeowners alike.

Brushed Stainless EUR Series Top or Bottom Patch Fitting - Less Insert

For Use with EUR Series Top and Bottom Inserts
High Density Cast Body with Lock Mechanism
Gaskets for use with 3/8" or 1/2" Glass

This CRL EUR Series Patch Fitting (Less Fitting) will allow you to use the same fitting for either top or bottom by simply installing the appropriate insert.

Glass Fabrication Required:

One Corner Notch

Includes:

High Density Cast Body

Cover Plates (finish of your choice)

Gaskets for 3/8" or 1/2" (10 or 12 mm)

Template and Instructions

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

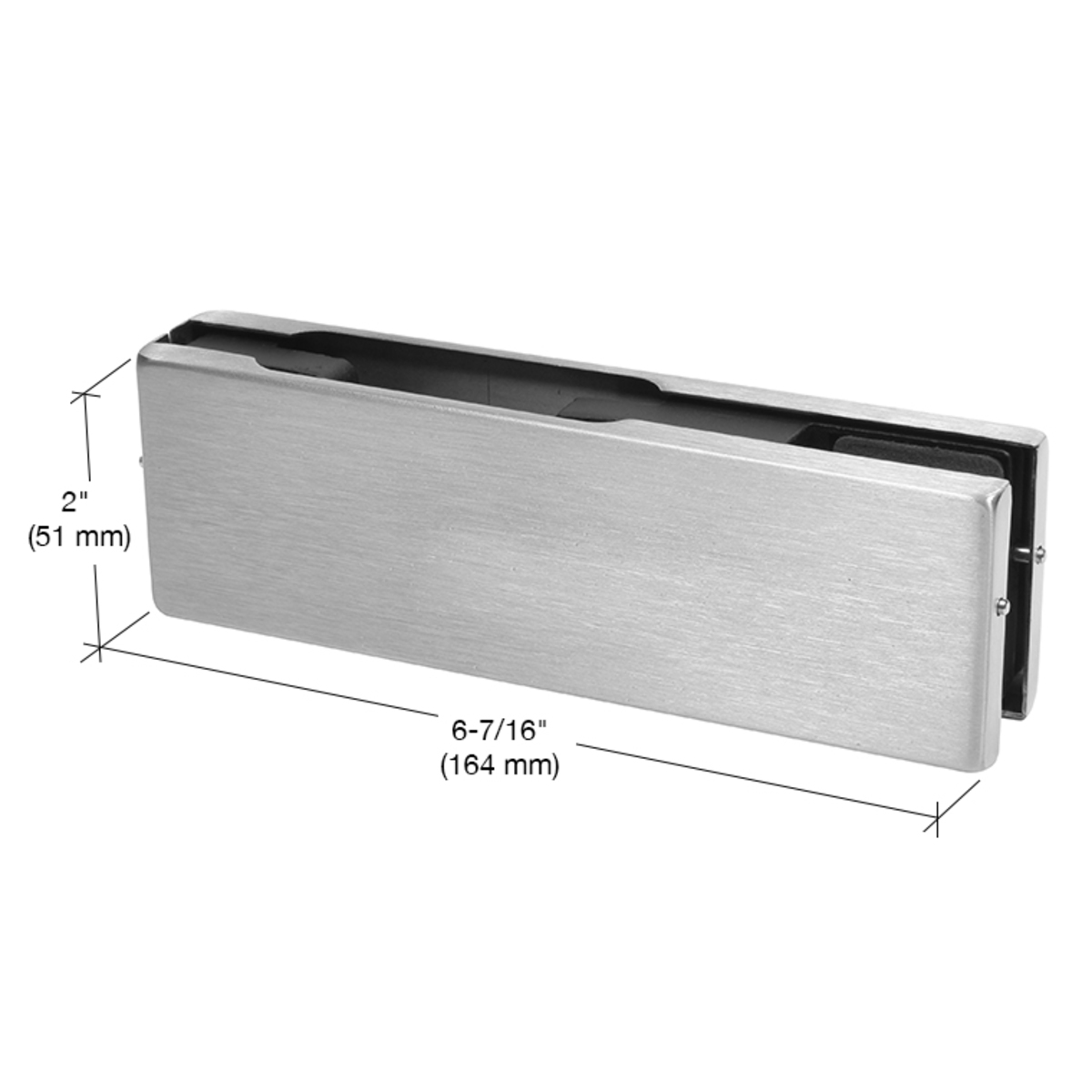

Height: 2 in. (51 mm)

Series: European

Shipping Limitations: None

Type: Top or Bottom

With Insert: No
