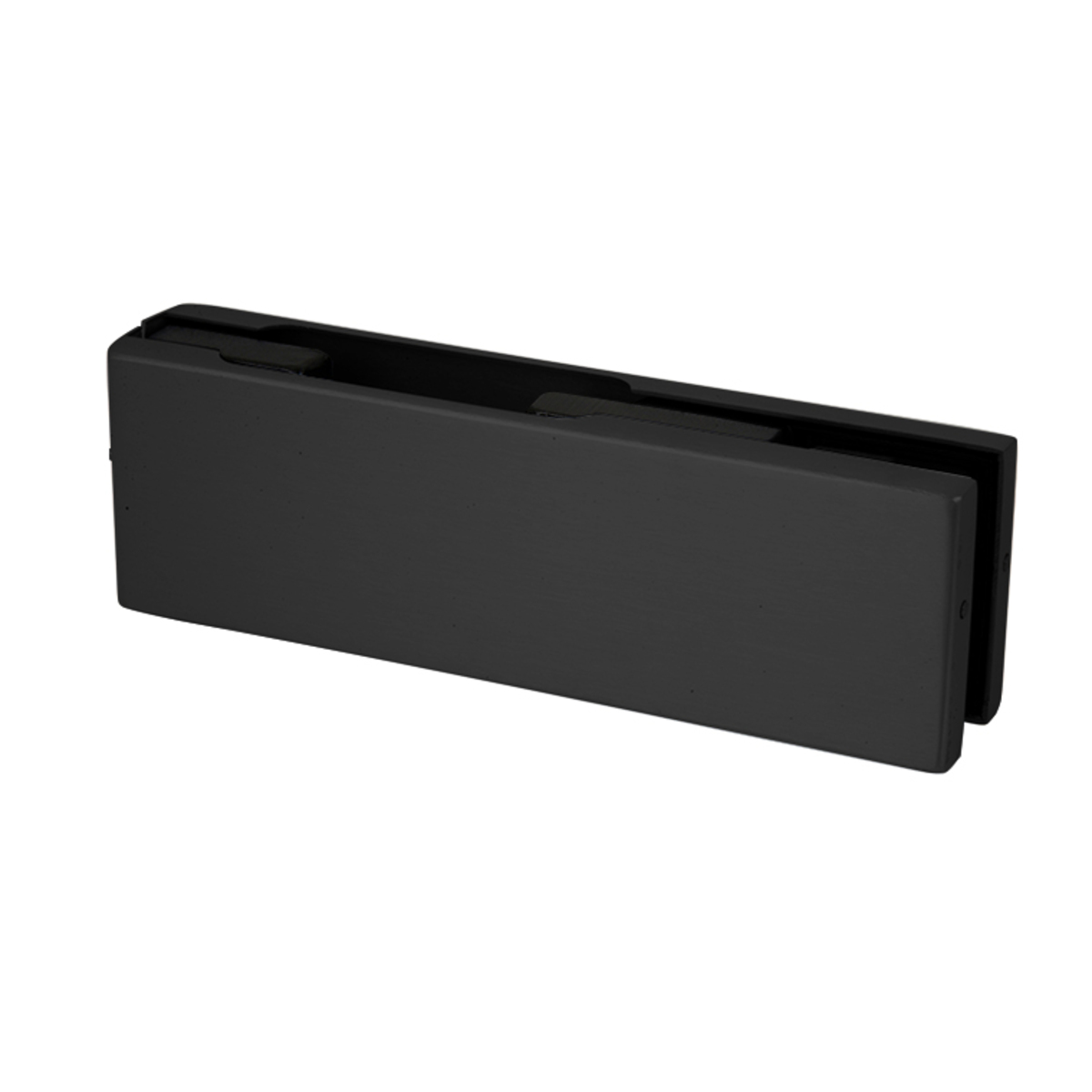

C.R. Laurence EUR201MBL Matte Black EUR Series Top or Bottom Patch Fitting - Less Insert is designed for versatility in modern glass installations. This fitting is compatible with both top and bottom inserts, allowing you to customize your hardware solution to meet specific project needs. Constructed from high-density cast material, it features a robust lock mechanism that ensures security and reliability. The EUR201MBL comes complete with gaskets suitable for 3/8" or 1/2" (10 mm or 12 mm) glass, making it adaptable to various glass thicknesses. When fabricating glass, a corner notch is required to ensure a precise fit. The package includes cover plates in your choice of finish, along with a template and detailed instructions for straightforward installation. Important specifications include a height of 2 inches (51 mm) and the ability to support doors up to 102 inches (2.59 m) in height and 176 lbs. (80 kg) in weight, with a maximum width of 42 inches (1.09 m). However, it’s crucial to note that these fittings are not suitable for laminated glass. Elevate your architectural designs with the sleek Matte Black finish of the EUR201MBL, combining aesthetics with functionality for any contemporary space.
Matte Black EUR Series Top or Bottom Patch Fitting - Less Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

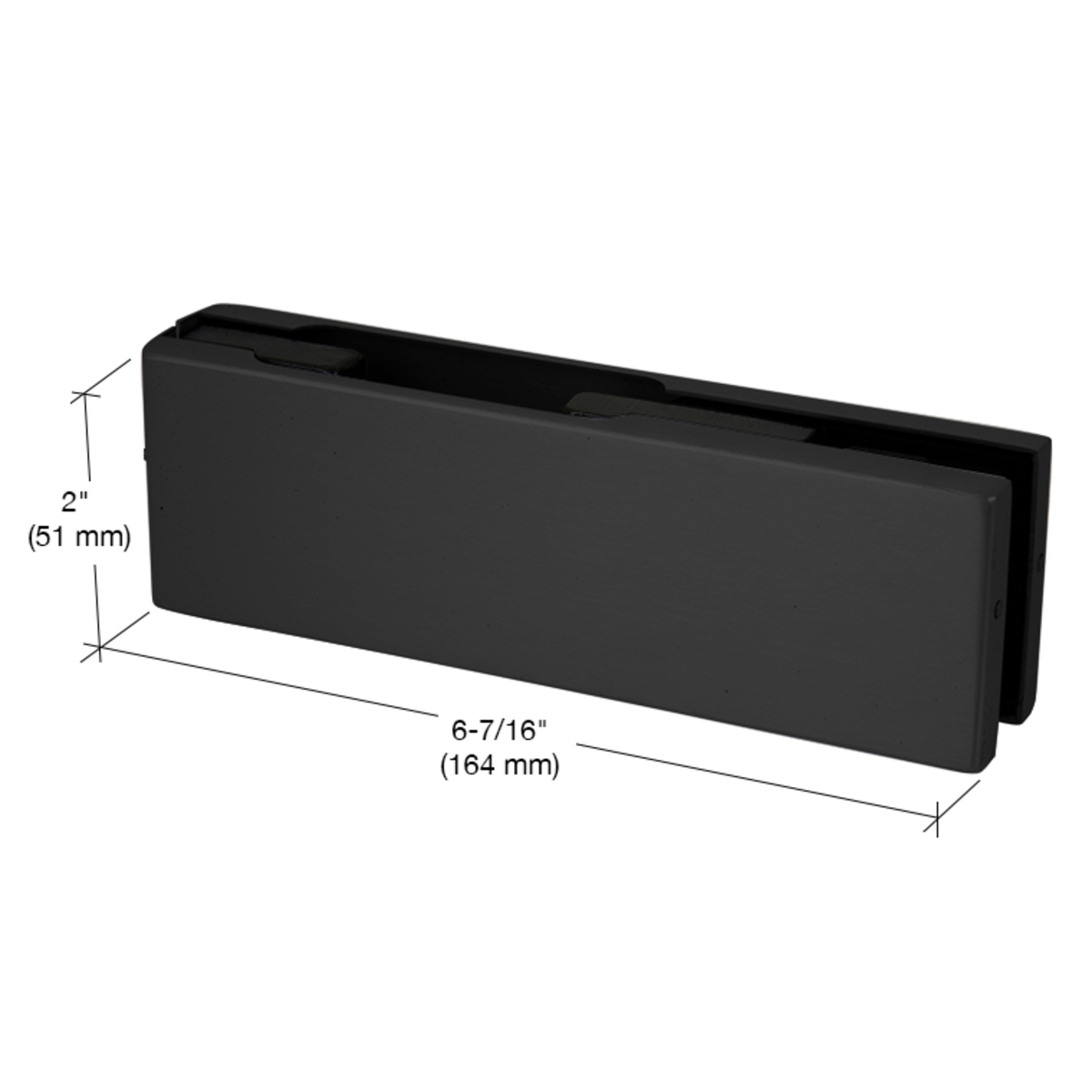

Height: 2 in. (51 mm)
Series: European
Shipping Limitations: None
Type: Top or Bottom
With Insert: No
