CRL EUR205BS Brushed Stainless EUR Series Complete Patch Lock with CylinderC.R. Laurence EUR205BS Brushed Stainless EUR Series Complete Patch Lock Including Cylinder offers a robust locking solution ideal for modern glass door applications. Constructed with a high-density cast body, this patch lock is designed for durability and security, making it an excellent choice for both residential and commercial settings. Compatible with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, the EUR205BS can be mounted on the top or bottom of doors, or along the vertical edge, allowing for versatile installations. The unit comes complete with a keeper for securing it to a jamb and can also be paired with the EUR206 Sidelite Mount Keeper for additional support. For enhanced convenience, an optional "Easy Clean" Bottom Keeper (EUR208) is available. Installation is straightforward, with included templates and instructions. Note that glass fabrication is required, including one corner notch and one U-Cutout for top and bottom mounting. For double door setups, an additional Bottom Patch Lock is necessary on the inactive leaf to ensure proper security. While the brushed stainless steel finish provides a sleek appearance, periodic maintenance is advised to maintain its factory sheen. This product is compliant with relevant regulations and ships conveniently via UPS.
Brushed Stainless EUR Series Complete Patch Lock Including Cylinder
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The

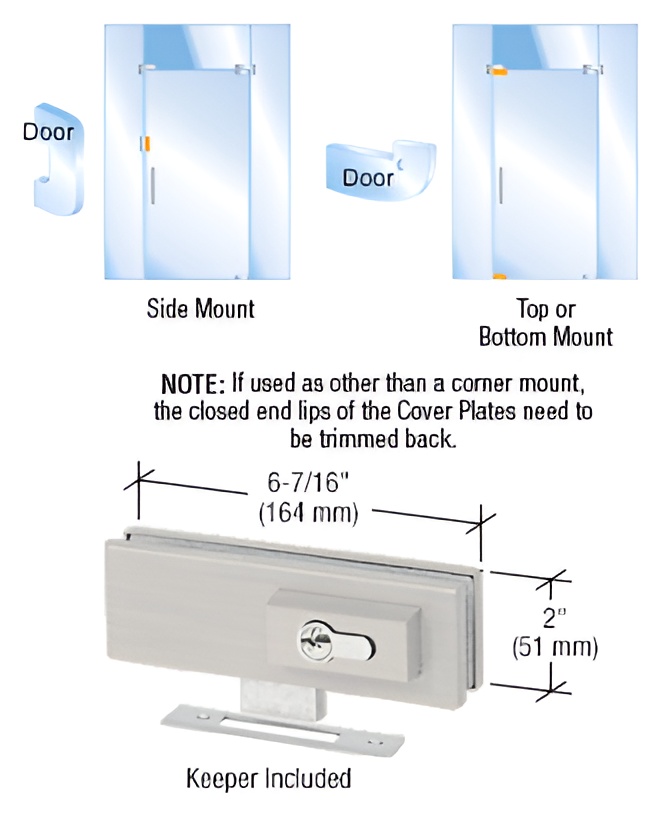

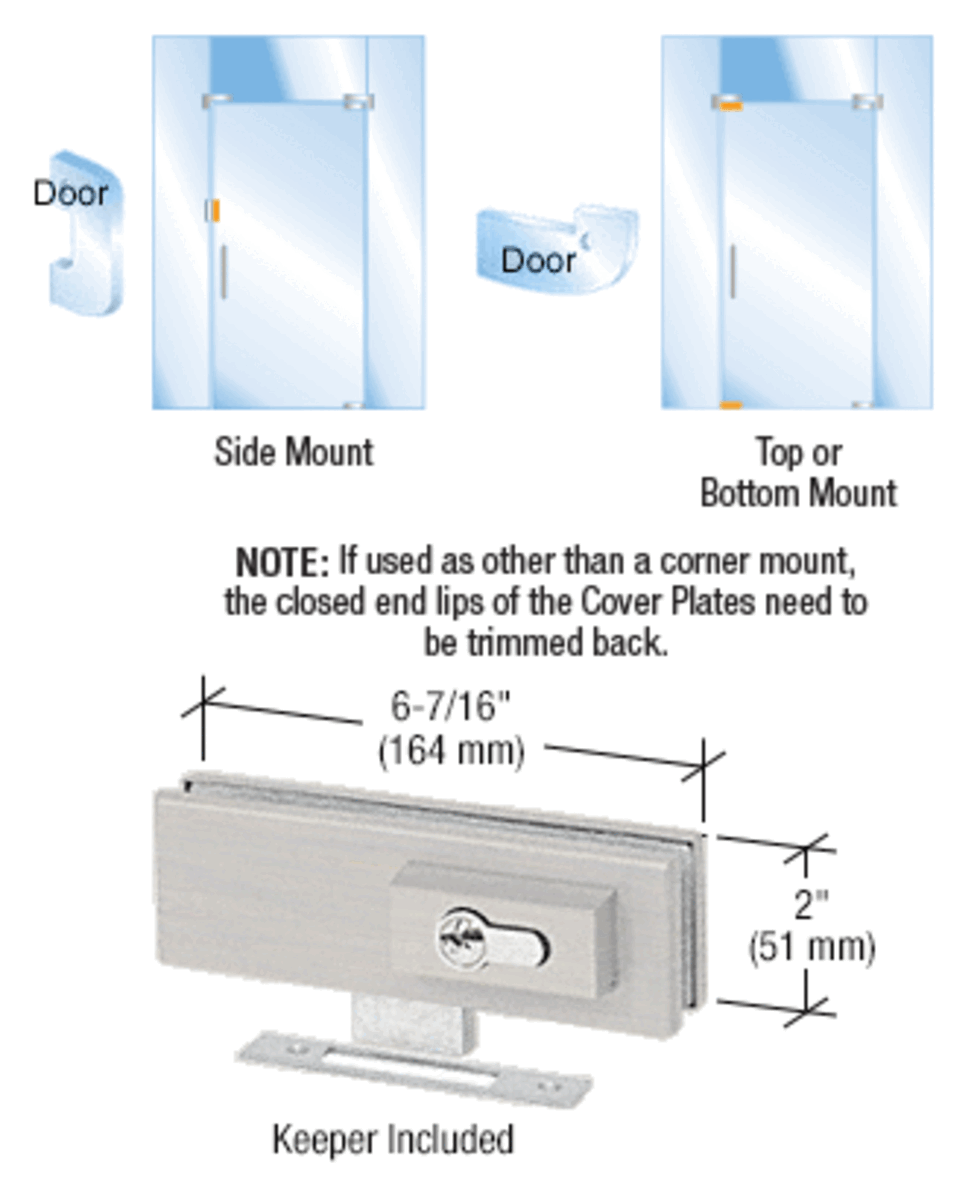

CRL European Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
EUR206 Sidelite Mount Keeper. Optional "Easy Clean" Bottom Keeper
EUR208 is available to accommodate most types of installations.
Glass Fabrication Required:
Top and Bottom Mount:
One Corner Notch Side Mount: One U-Cutout
Includes: Template and Instructions
Double Door Application: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
NOTE: If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
Product Warning:
If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Height: 2 in. (51 mm)
Shipping Limitations: None
Resources
