CRL FA1430 15" Window Channel Balance 1430/14-3

CRL FA1430 15" Window Channel Balance 1430/14-3

C.R. Laurence FA1430 15" Window Channel Balance - 1430 or 14-3 offers a robust solution for window sash balancing, ensuring smooth operation and durability in various applications. Measuring 5/8" in depth yet commonly referred to as 1/2" in the trade, this channel balance accommodates a vent weight range of 10 to 12 pounds, making it ideal for standard window sizes. Available in lengths from 13" to 43" (330 mm to 1.09 m), the FA Series caters to a variety of weight requirements with options for 10, 20, 30, 40, and 50 weight ranges. Each balance requires specific nylon guides, which can be easily riveted using the Cat. No. H3740 Rivet Set Tool, ensuring a secure fit and reliable performance. When ordering, it is crucial to measure the length of the metal channel accurately, excluding the guides, and to note the stamped or laser-etched number on the back of the balance for optimal selection. Special order options are available for unique weight ranges, ensuring that you find the perfect fit for your window needs. Whether for new installations or replacements, the C.R. Laurence FA1430 provides the quality and precision that building professionals and knowledgeable homeowners demand.

15" Window Channel Balance - 1430 or 14-3

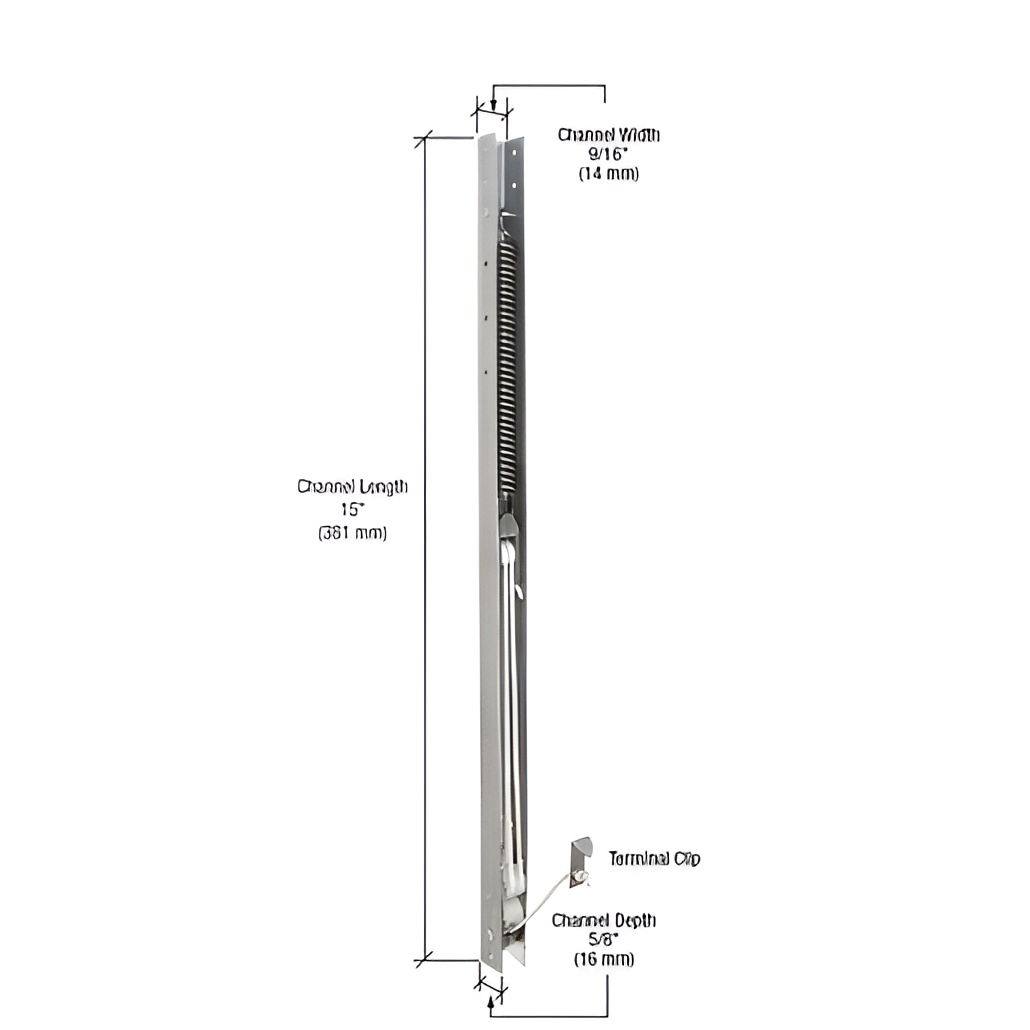

• Measures 5/8" (16 mm) Depth, but Referred to as 1/2" (13 mm) in the Trade
• 10, 20, 30, 40, and 50 Weight Range Balances in Lengths from 13" to 43" (330 mm to 1.09 m)

Each CRL FA Series 3/30 Weight Range Sash Balances requires one of several types of nylon guides to be riveted onto the top and bottom of the channel. Customers can mount the guides using Cat. No. H3740 Rivet Set Tool (sold separately), which mushrooms the rivet, giving it a very strong set.


Guide Options are:
FS290B, FS291B, FS292B, FS293B, FS294B, FS295B, FS296B, FS297B, FS298B, and FS299B


Ordering Tips for FA Series Sash Balances

Remove the existing Channel Balance from the window. Measure the length of the metal channel only. Do not include the Guides. This measurement should be at full inch increments.

NOTE: There have been a few window manufacturers that have used special 1/2" (12.7 mm) increment channel lengths. These Channel Balances are not stocked, however they can be special ordered.

Always look for the stamped or laser etched number on the back of the Channel Balance. This number will either be four numbers or two numbers and a letter. For example: 2710 or 27-2.

Using the numbers on the back of the Channel Balance, refer to the chart. If you have a full 18" (457 mm) length channel, and the corresponding number on the back of the Channel Balance is 1710 or 17-1, the corresponding CRL Cat. No. is FA1710.

If you have a full 27" length channel, and the number on the back of the Channel Balance is 2610 or 26-1, the corresponding Cat. No. is FA2610. The chart also includes a vent weight range. This range indicates the amount of sash weight that a pair of Channel Balances will hold. This range does not account for any excessive weatherstrip friction.

NOTE: The weight range chart should be used for reference only, or if the stamped number is too difficult to read.

Special weight range Channel Balances are available by special order. The standard balance chart shows stocked weight ranges from FA1210 to FA4240. The 10, 20, 30, 40 and 50 represents the counter-balance weight designation. If your Channel Balance has a number 90 or 9, instead of the five weight ranges listed above (for example: 2790-26) this Channel Balance was made specifically to carry a 26-pound sash weight per pair of Balances. If your Channel Balance has a "DS" after the length, for example 27DS-34, this pair of Channel Balances was made specifically to carry a 34-pound sash weight. These special weight Channel Balances are sometimes designed specifically for upper or lower sashes only. This information will need to be provided at time of order.


Product Warning:

The first two numbers of the CRL Catalog Number do not represent the length of the channel.

Resources

• Window Channel Sash Balance Weight Range Information
