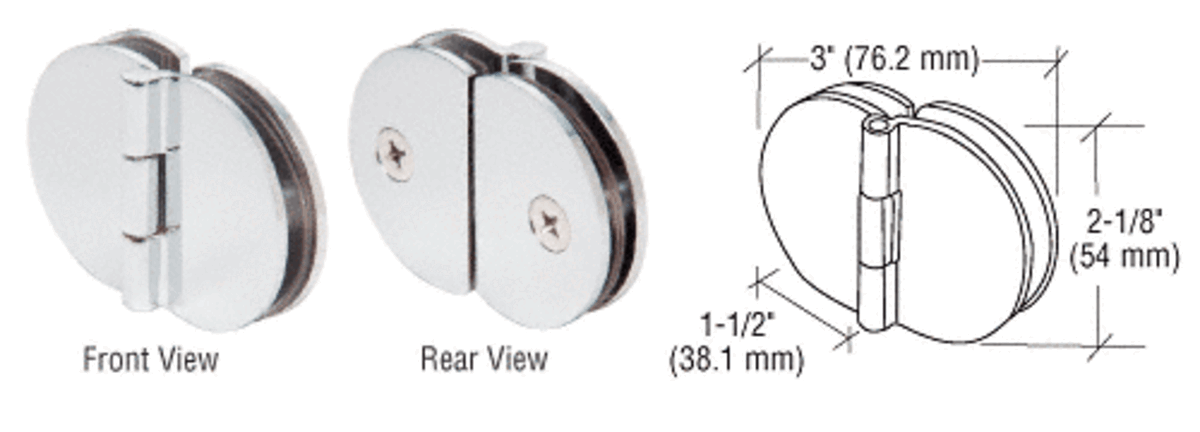

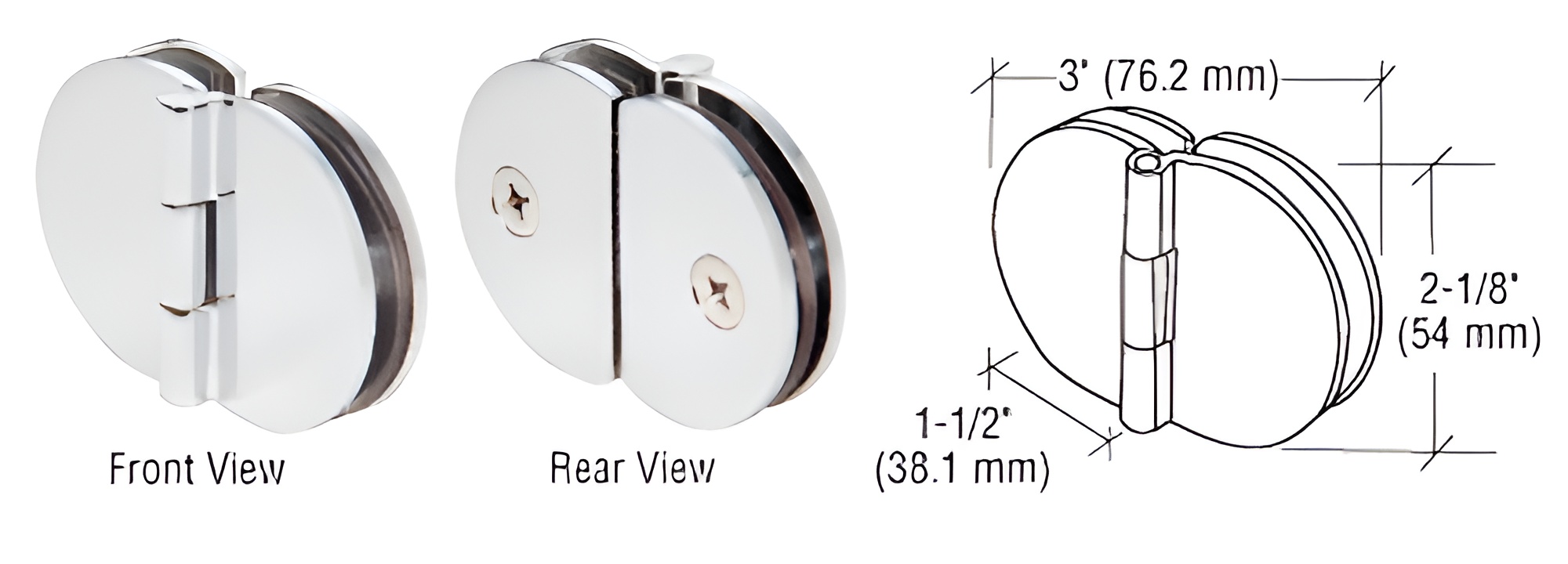

C.R. Laurence FA180CH Chrome 180 Degree Glass-to-Glass Cabinet Hinge offers a sleek and durable solution for your glass door installations. Designed for use with 1/4" to 5/16" (6 to 8 mm) thick glass, this hinge is constructed from solid brass, ensuring long-lasting strength and reliability. The polished chrome finish adds a contemporary touch, making it an ideal choice for modern interiors. This hinge requires two 5/8" (16 mm) holes for installation, with clear vinyl pad inserts included to protect the glass from scratches and damage. The FA180CH can support a maximum door width of 24" (609.6 mm) and a weight capacity of up to 50 lbs. (22.7 kg) when using two hinges. For heavier applications, three hinges can accommodate up to 75 lbs. (34 kg). Each pack contains two hinges, making it a convenient option for various projects. With a height of 2-1/8" (54 mm) and an open width of 3" (76.2 mm), the FA180CH is designed to provide a seamless operation while maintaining a clean aesthetic. Whether you're a building professional or a knowledgeable homeowner, this hinge is an excellent choice for enhancing your glass cabinetry.
Chrome 180 Degree Glass-to-Glass Cabinet Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 2-1/8 in. (54 mm)
Material: Brass
Maximum Door Width: 24 in. (609.6 mm)
Open Width: 3 in. (76.2 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 50 lbs. (22.7 kg)
