CRL FA2320 24" Window Channel Balance 2320/23-2

CRL FA2320 24" Window Channel Balance 2320/23-2

C.R. Laurence FA2320 24" Window Channel Balance - 2320 or 23-2 is designed to offer exceptional performance and reliability for your window sash needs. This channel balance measures 5/8" in depth, though it is commonly referred to as 1/2" in the trade. It is available in a variety of weight ranges from 10 to 50 pounds and lengths from 13" to 43", allowing for tailored solutions for different window specifications. Each FA Series balance requires nylon guides, which can either be pre-attached at the factory or ordered separately for user mounting. For added convenience, the CRL Cat. No. H3740 Rivet Set Tool is available to ensure a secure fit when attaching guides. When ordering, simply measure the length of the metal channel without including the guides, and refer to the stamped number on the back for precise identification. The FA2320 balance is engineered to support sash weights ranging from 9 to 15 pounds, making it ideal for a variety of window applications. Please note that special weight range balances can be special ordered if needed. Trust C.R. Laurence for high-quality, dependable window channel balances that meet your project’s demands with ease.

24" Window Channel Balance - 2320 or 23-2

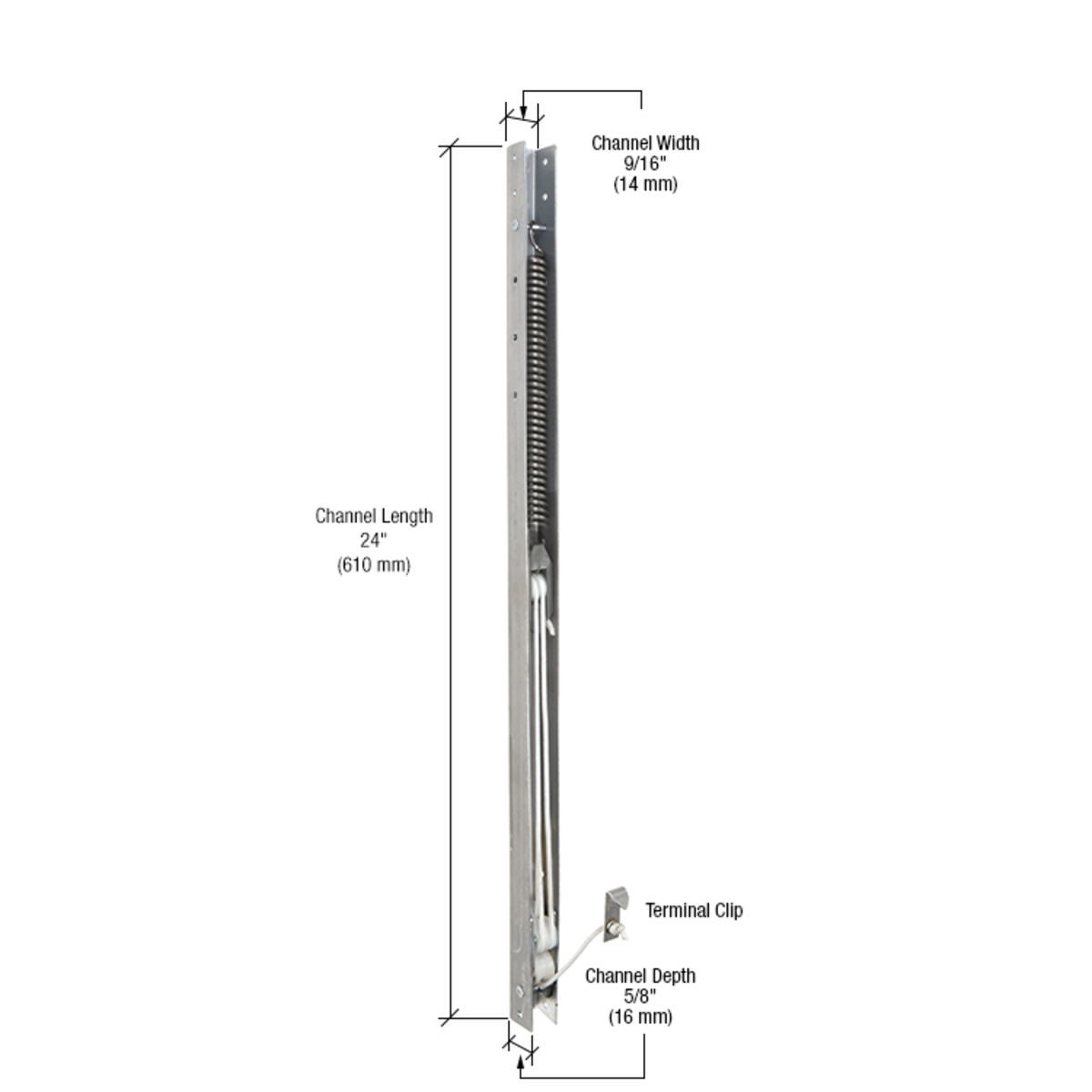

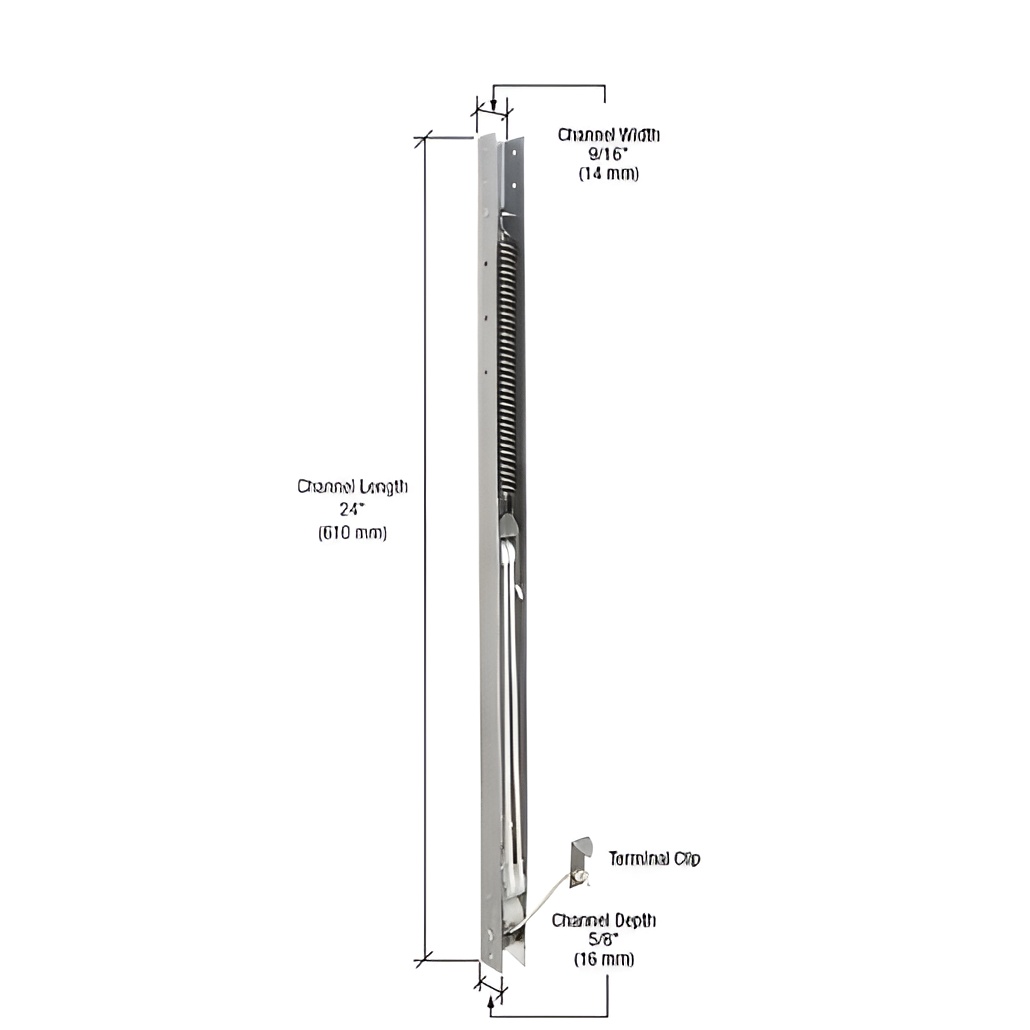

• Measures 5/8" (16 mm) Depth, but Referred to as 1/2" (13 mm) in the Trade
• 10, 20, 30, 40, and 50 Weight Range Balances in Lengths from 13" to 43" (330 mm to 1.09 m)

Each CRL FA Series 2/20 Weight Range Sash Balances requires one of several types of nylon guides to be riveted onto the top and bottom of the channel. Customers can either order channel balances with guides pre-attached at the factory, or can order guide kits, with rivets included, and mount the guides themselves. CRL also offers the handy Cat. No. H3740 Rivet Set Tool, which mushrooms the rivet, giving it a very strong set.


Ordering Tips for FA Series Sash Balances

Remove the existing Channel Balance from the window. Measure the length of the metal channel only. Do not include the Guides. This measurement should be at full inch increments.

NOTE: There have been a few window manufacturers that have used special 1/2" (12.7 mm) increment channel lengths. These Channel Balances are not stocked, however they can be special ordered.

Always look for the stamped or laser etched number on the back of the Channel Balance. This number will either be four numbers or two numbers and a letter. For example: 2710 or 27-2.

Using the numbers on the back of the Channel Balance, refer to the chart. If you have a full 18" (457 mm) length channel, and the corresponding number on the back of the Channel Balance is 1710 or 17-1, the corresponding CRL Cat. No. is FA1710.

If you have a full 27" length channel, and the number on the back of the Channel Balance is 2610 or 26-2, the corresponding Cat. No. is FA2610. The chart also includes a vent weight range. This range indicates the amount of sash weight that a pair of Channel Balances will hold. This range does not account for any excessive weatherstrip friction.

NOTE: The weight range chart should be used for reference only, or if the stamped number is too difficult to read.

Special weight range Channel Balances are available by special order. The standard balance chart shows stocked weight ranges from FA1210 to FA4240. The 10, 20, 30, 40 and 50 represents the counter-balance weight designation. If your Channel Balance has a number 90 or 9, instead of the five weight ranges listed above (for example: 2790-26) this Channel Balance was made specifically to carry a 26-pound sash weight per pair of Balances. If your Channel Balance has a "DS" after the length, for example 27DS-34, this pair of Channel Balances was made specifically to carry a 34-pound sash weight. These special weight Channel Balances are sometimes designed specifically for upper or lower sashes only. This information will need to be provided at time of order.


Product Warning:

The first two numbers of the CRL Catalog Number do not represent the length of the channel.

Resources

• Window Channel Sash Balance Weight Range Information
