CRL FD62652 U.S. Aluminum DF800 White KYNAR 76"x126" Tubular Offset Transom Frame Blank

CRL FD62652 -U.S. Aluminum White KYNAR Paint 76" x 126" Series DF800 Tubular Offset Hung Transom Frame Blank (2FT) is expertly designed for building professionals seeking a reliable and durable solution for offset hung doors. This complete frame accommodates a 72" x 84" door opening, featuring robust 1H476 tubular jambs and a sturdy 1H457 header, ensuring structural integrity and long-lasting performance. Constructed with a sleek white Kynar finish, this transom frame not only enhances aesthetic appeal but also offers excellent resistance to weathering, making it ideal for various environments. The frame measures 76" x 126" (1.9 x 3.2 m) in outside dimensions and includes an aluminum threshold for added convenience. The assembly comes with essential components such as door stops, weatherstrip, and standard hardware, ensuring a straightforward installation process. All necessary fasteners for frame assembly are included, while customers are responsible for providing fasteners to attach the frame to the opening. Designed for common carrier shipping only, this product offers an efficient and reliable option for your architectural needs. With its combination of quality materials and precise engineering, the CRL FD62652 transom frame is the perfect choice for both commercial and residential applications.

-U.S. Aluminum White KYNAR Paint 76" x 126" Series DF800 Tubular Offset Hung Transom Frame Blank (2FT)

• 72" x 84" (1.8 x 2.1 m) Door Opening
• Aluminum Threshold is Included

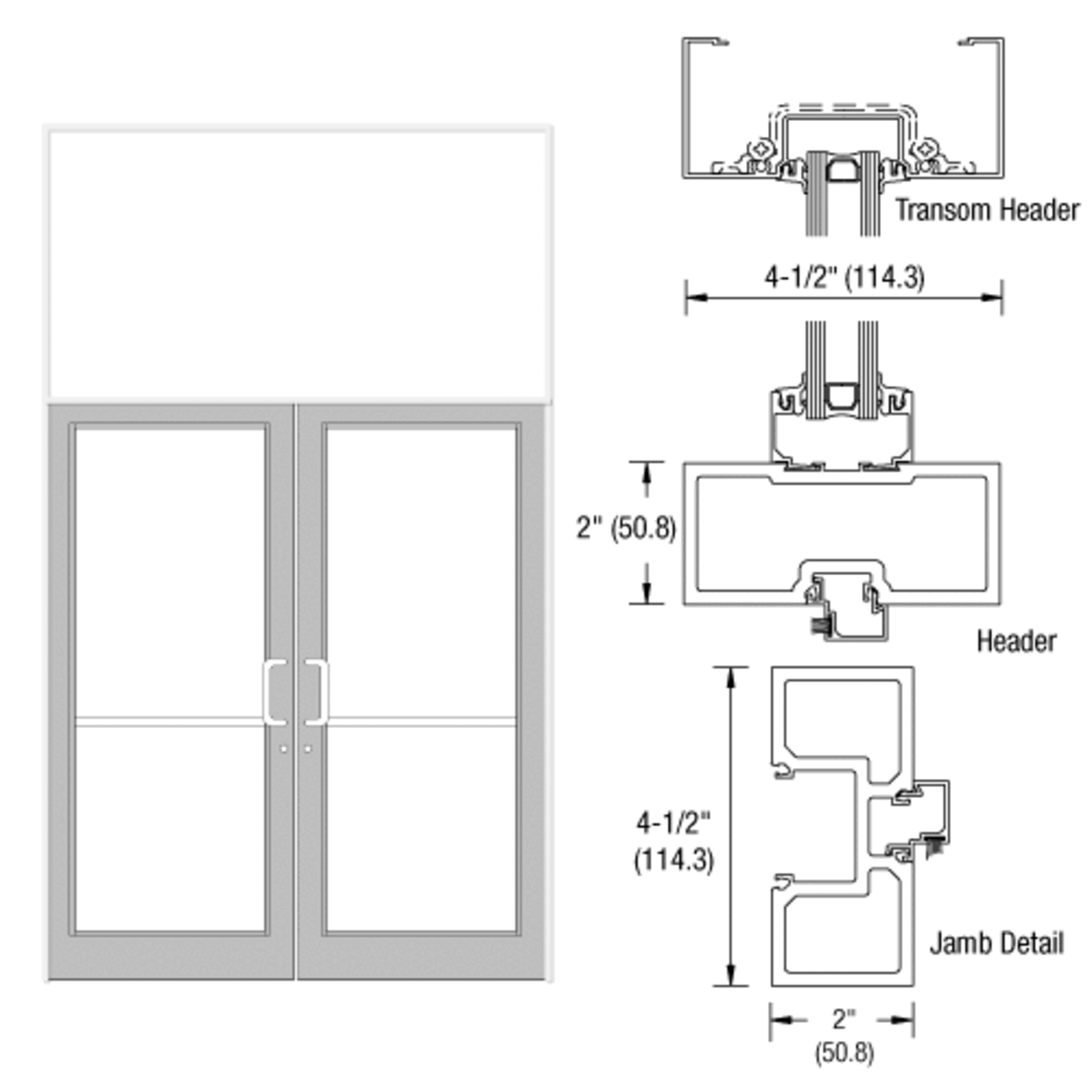

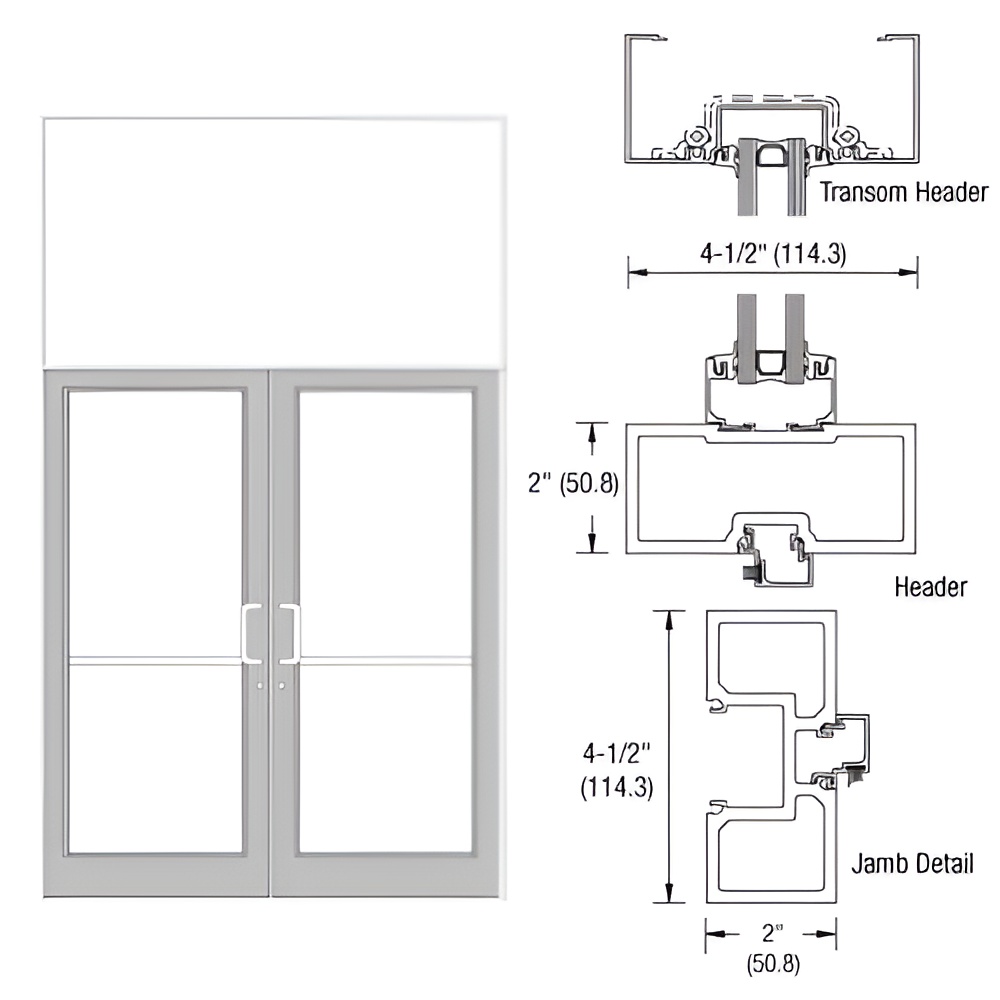

• 2" x 4-1/2" (50.8 x 114.3 mm) Transom Frame with Tubular Jambs
• 76" x 126" (1.9 x 3.2 ) Base Frame Size (Outside Dimensions)
