CRL FD71552 U.S. Aluminum DF800 White KYNAR Open Back Butt Hinge Frame 38" x 85-3/4"

CRL FD71552 - U.S. Aluminum White KYNAR Paint 38" x 85-3/4" Series DF800 Open Back Butt Hinge Up and Over Frame Complete provides a robust solution for your commercial or residential needs. This complete frame is designed to accommodate a standard 36" x 84" butt hinge door, ensuring compatibility with a surface mount closer. Constructed with durable TJ455 Open Back Jambs and a JS467 Header, it promises reliability and ease of installation. Measuring 1" x 4-1/2" (25.4 x 114.3 mm) with open back jambs, the frame boasts outside dimensions of 38" x 85-3/4" (1.0 x 2.2 m). The included aluminum threshold adds functionality while the door stops and weatherstrip enhance performance against the elements. All necessary fasteners and standard hardware for frame assembly are provided, allowing for a seamless installation experience. It’s important to note that frame widths less than 38" (.9 m) may not pass A.D.A. inspection, ensuring compliance for accessibility. The striking white KYNAR finish not only enhances the aesthetic appeal but also provides added protection against corrosion. For shipping, please be aware that this product is only available via common carrier, not UPS. Elevate your entryway with the reliability and style of the CRL FD71552 frame.

-U.S. Aluminum White KYNAR Paint 38" x 85-3/4" Series DF800 Open Back Butt Hinge Up and Over Frame Complete (1F)

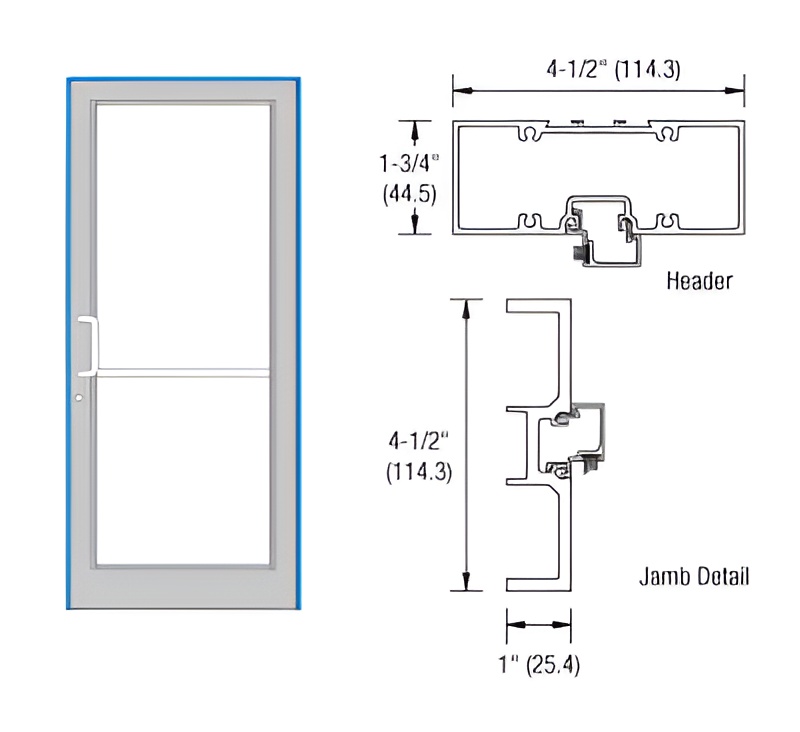

• 1" x 4-1/2" (25.4 x 114.3 mm) Up and Over Frame with Open Back Jambs
• 38" x 85-3/4" (1.0 x 2.2 m) Base Frame Size (Outside Dimensions)
• 36" x 84" (.9 x 2.1 m) Door Opening
• Aluminum Threshold is Included
