CRL FD72752 U.S. Aluminum DF800 White Painted Up/Over Sub Frame for Double Doors

CRL FD72752 - U.S. Aluminum White Painted Series DF800 Up/Over Sub Frame for a Pair of Doors offers a robust and versatile solution for your door framing needs. This frame measures 1" x 4-1/2" (25 x 114 mm) and features open back jambs, making it ideal for center hung overhead concealed door closer applications. Specifically designed to accommodate a pair of Durafront Doors, this frame ensures a seamless integration with your existing architecture. The CRL FD72752 includes a threshold and is constructed with high-quality TJ455/P050 open back jambs, paired with a durable 1G457/P427 header that comes complete with weatherstrip for enhanced insulation. All necessary fasteners and standard hardware are included for straightforward assembly, while customers only need to supply the fasteners to attach the frame to the opening. It’s important to note that frame widths less than 38" (.9 m) may not meet A.D.A. inspection criteria, ensuring compliance and safety. With its white Kynar finish, the frame not only provides functionality but also adds an aesthetically pleasing element to any space. For shipping, please be aware that this product is limited to common carrier delivery only.

-U.S. Aluminum White Painted Series DF800 Up/Over Sub Frame for a Pair of Doors

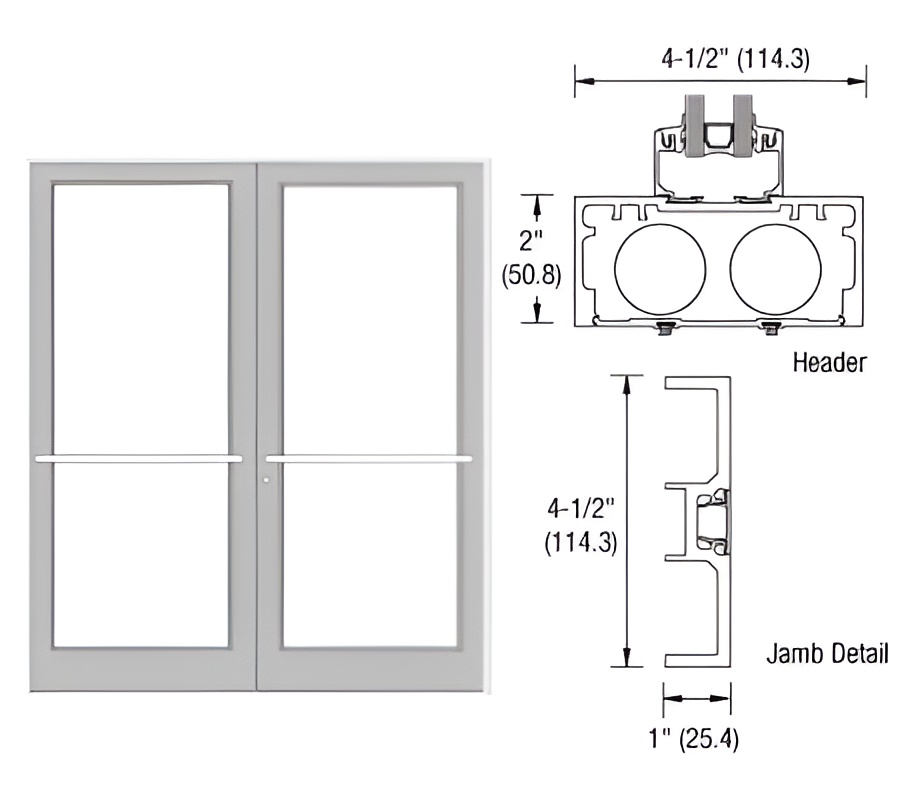

• 1" x 4-1/2" (25 x 114 mm) Up/Over Frame with Open Back Jambs
• For Center Hung Overhead Concealed Door Closer Applications
• Built to Accommodate a Pair of Durafront Doors
• Threshold included
