CRL FG3000S45 3/64" x 7/16" Fire Glazing Tape - 45 Min.

CRL FG3000S45 3/64" x 7/16" Fire Glazing Tape - 45 Min.

C.R. Laurence FG3000S45 3/64" x 7/16" Fire Glazing Tape - 45 Minute is a specially formulated high-performance intumescent glazing tape designed to enhance safety and functionality in fire-rated applications. This tape features an adhesive backing on one side, allowing for easy installation on wood and hollow metal doors with vision lites, accommodating larger glass areas in 20, 45, 60, and 90-minute rated assemblies. Tested to UL standards, the FG3000S45 has successfully passed fire tests, achieving ratings of 20 minutes with hose stream and 45 minutes on both wood and metal doors. Its compatibility with wire glass products such as Pilkington, Asahi, and Central Glass, as well as non-wire glazing like Firelite™, makes it a versatile choice for various glazing needs. The tape measures 3/64 inches in thickness and 7/16 inches in width, with a roll length of 16 feet (5 meters). It performs optimally when installed at temperatures between 65ºF and 80ºF. For best results, use within six months of purchase, ensuring compliance with your door and frame manufacturer's specifications. With its proven performance and robust design, the C.R. Laurence FG3000S45 is an essential component for any fire-rated glazing project.

3/64" x 7/16" Fire Glazing Tape - 45 Minute

• Specially Formulated High Performance Intumescent Glazing Tape
• Positive Pressure Tested and Listed
• Use With Wire Glass and Firelite™

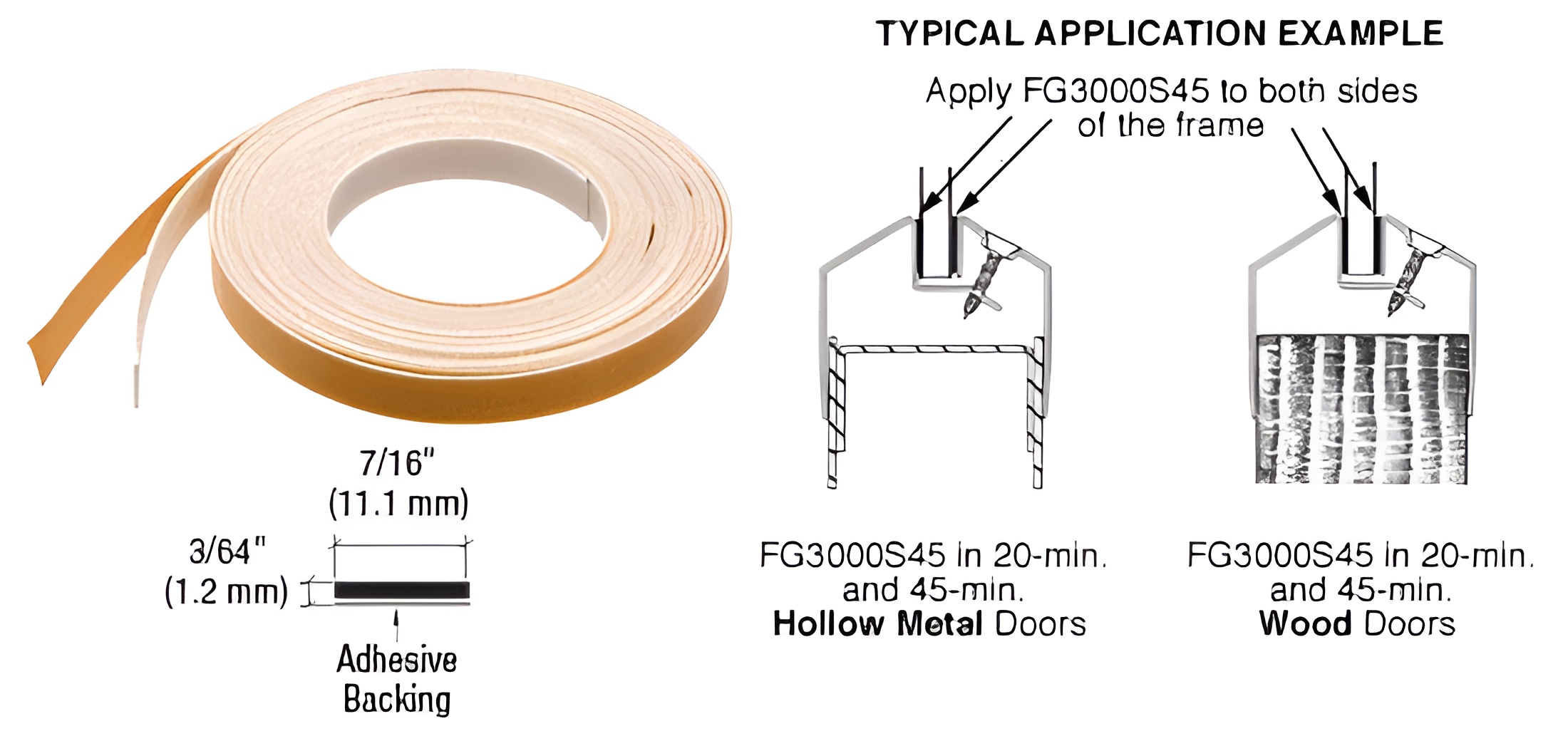

CRL FG3000 Fire Glazing Tapes are specially formulated high performance intumescent glazing tapes with adhesive backing on one side, that allow for much larger vision lites in 20, 45, 60 and 90 minute rated wood and hollow metal doors with metal vision frames. In 20 and 45 minute rated hollow metal screens the use of FG3000 allows for much larger side lites, borrowed lites and glass transoms. Successfully passed 20 minutes (with hose stream) and 45 minutes on wood and metal doors with vision lites installed.


Maximum Wood Door Size:
48" x 96" (1.22 x 2.44 m) single and/or pairs approved.

Maximum Hollow Metal Door Size:
48" x 120" (1.22 x 3.05 m) single and/or pairs approved.

Listed glazing products include:
(Wire Glazing) Pilkington, Asahi, and Central Glass; (Non-Wire Glazing) Firelite™.

Verify all applications with your door and/or frame manufacturer.

Underwriters Laboratory IS47
Fire Rated - UL10C - Positive Pressure

Smoke Tested: Tested to UL 1784 and meets the requirements of NFPA 105-2013 for smoke leakage in an opening; allows no more than 3.0 cfm per square foot at 0.10" water column (about 75 Pa).

Fire Rated: Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies.


Product Warning:

Verify all applications with your door and/or frame manufacturer.
Suggested Application Temperature= Between 65ºF (18ºC) and 80ºF (26ºC).
Do not install on frames at less than 50ºF (10ºC) or more than 100ºF (37ºC).

These Tapes perform best when used within 6 months of purchase.

Resources

• Safety Data Sheets 1050.pdf
