CRL FH3320 33
Images may not represent actual product and finish

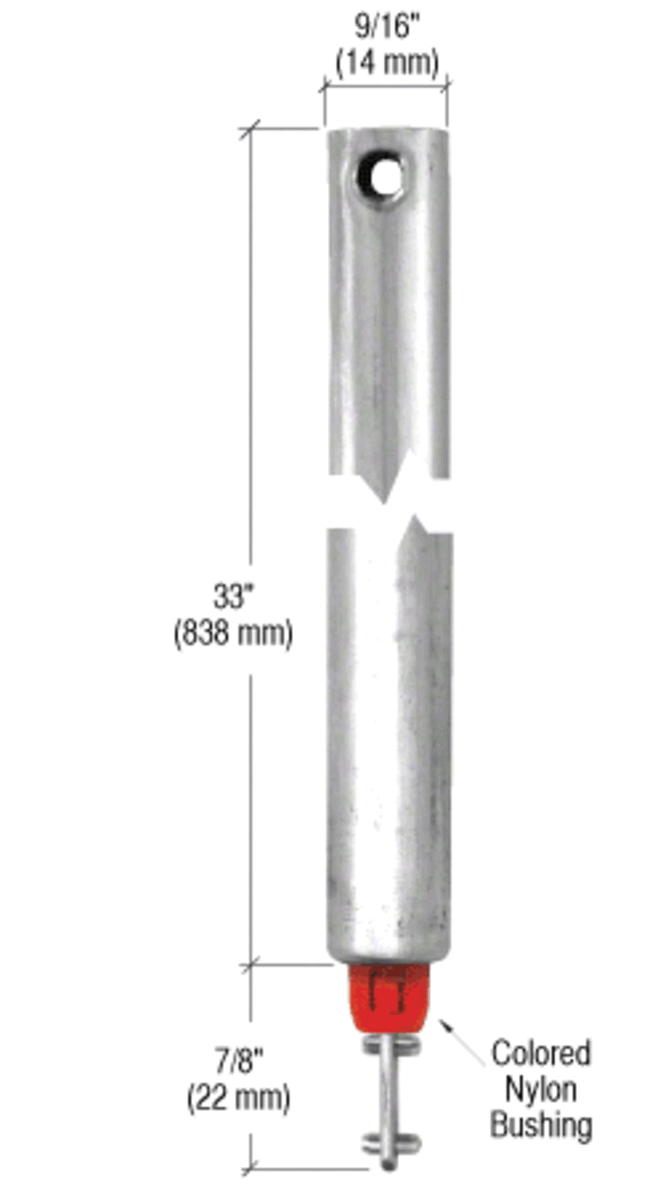

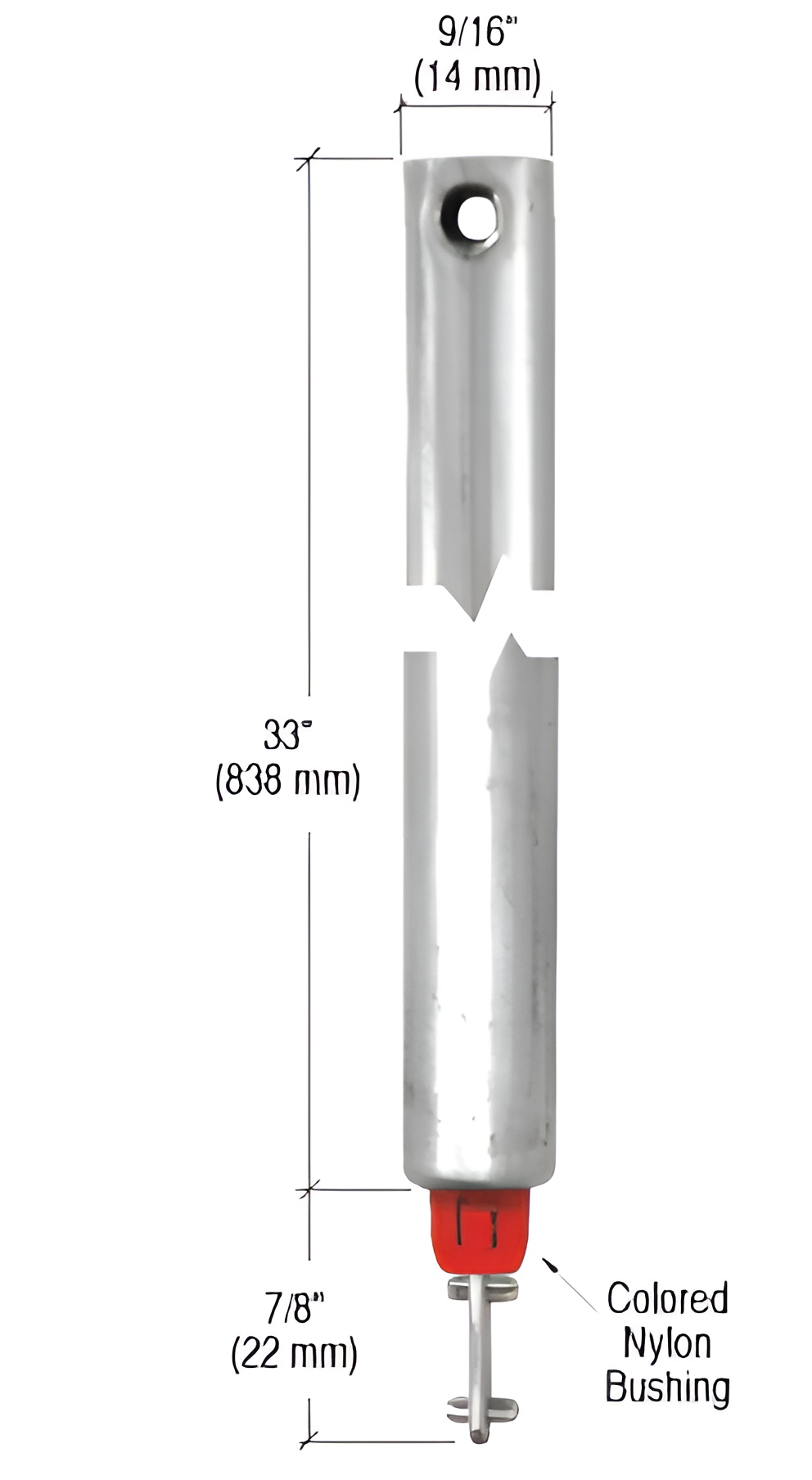

CRL FH3320 33" Tubular Spiral Tilt Window Balance with Red Bushing

Your Price: $8.88
Retail Price:$10.63
Your Savings:$1.75(16%)
CRL FH3320 33" Tubular Spiral Tilt Window Balance with red bushing supports up to 25 lbs, replacing metal or plastic balances.
Part Number : CRL_FH3320
Availability: 65 In Stock
CRL FH3320 33" Tubular Spiral Tilt Window Balance with Red Bushing

C.R. Laurence FH3320 33" Tubular Spiral Tilt Window Balance Red Bushing offers a reliable solution for tilt-type windows, effectively replacing both metal and plastic tube balances. Designed to accommodate sash loads up to 25 pounds (11.3 kg), this balance is equipped with a red bushing, indicating its strength and suitability for heavier window sashes. With an industry-standard tube diameter of 9/16" (14 mm), the FH3320 ensures compatibility with a range of window systems. It is essential to replace both balances in a window simultaneously for optimal performance, contributing to the overall longevity and functionality of your window system. To ensure a proper fit, measure the tube diameter and length from the end of the balance to the bottom of the colored nylon bushing, excluding the rod extension. Confirm the nylon bushing color and verify that the rod extension matches the specifications. This balance ships via UPS and is a practical choice for homeowners and building professionals alike. Please be aware of compliance warnings related to reproductive harm, and always consult with C.R. Laurence Customer Service for any shipping inquiries. Trust C.R. Laurence for high-quality glazing supplies that enhance your projects.

33" Tubular Spiral Tilt Window Balance Red Bushing

  • Red Bushing Indicates Sash Load Weights of Up to 25 Pounds (11.3 kg)
  • Tilt Window Type with Industry Standard 9/16" (14 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

These CRL Tubular Spiral Window Balances for tilt type windows will replace a metal or plastic tube balance with a sash load capacity of up to 25 pounds (11.3 kg). It will also replace the same size spiral balance with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.


How to Order Tubular Spiral Window Balances:
  • 1. Check the tube diameter of the metal or plastic tube on the old balance.
  • 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.
  • 3. Check the color of the nylon bushing.
  • 4. Verify that the rod extension protruding from the nylon bushing matches.
  • 5. Match tube diameter, tube length, nylon bushing color against the information shown next to the catalog number. If all agree, and the rod extension matches one in the photo, then this is the correct balance.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Bushing Color: Red

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Heaviest Vent Weight Range: 25

    Shipping Limitations: None

    Tube Diameter: 9/16

    Tube Length: 33

    Window Type: Tilt
