CRL FH4DUS Black Bronze Anodized Floating Header for 36" Concealed Door Closers

CRL FH4DUS Black Bronze Anodized Floating Header for 36" Concealed Door Closers

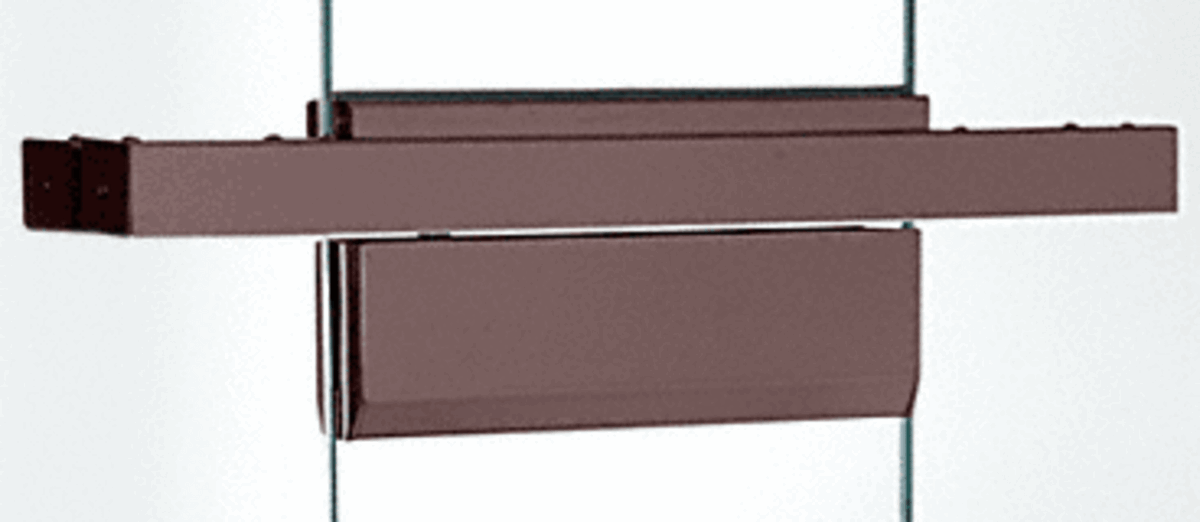

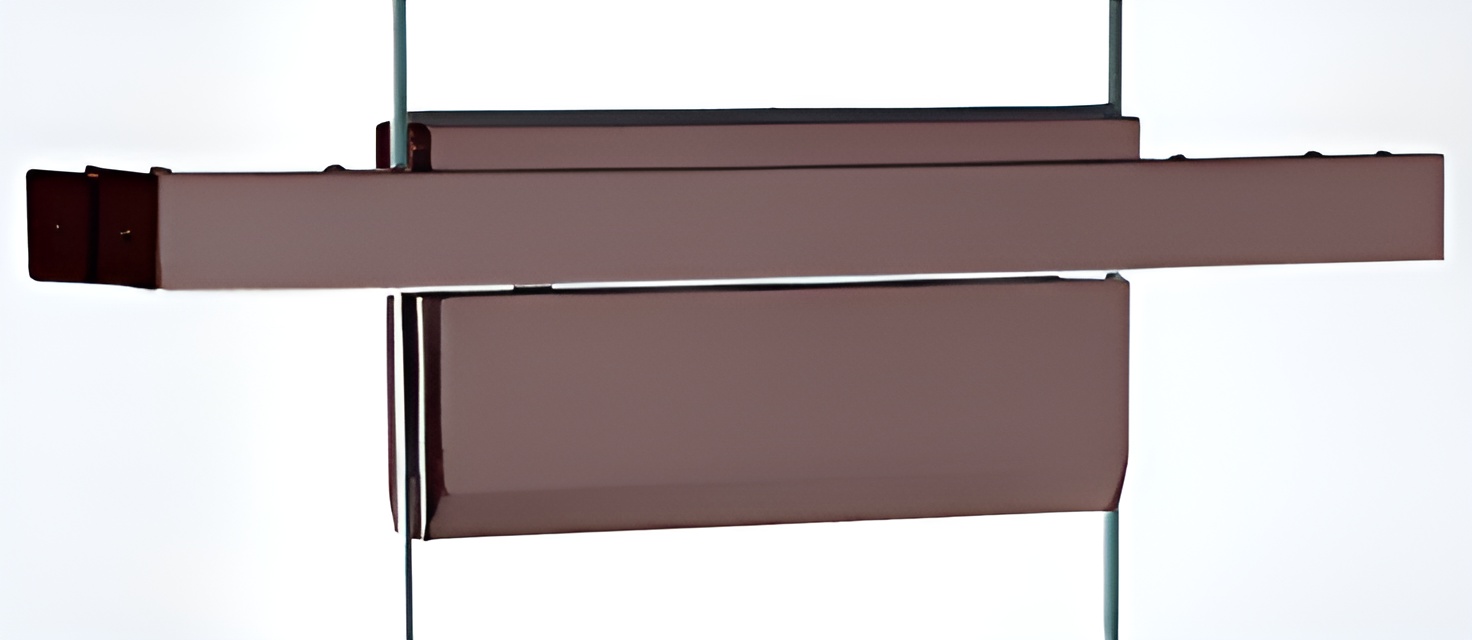

C.R. Laurence FH4DUS Black Bronze Anodized Single Floating Header for Overhead Concealed Door Closers is designed to elegantly support overhead door mechanisms without cutting into the floor. This floating header is ideal for installations featuring 1/2" (12 mm) glass, making it perfect for both glass-to-glass and glass-to-wall applications. With a width of 4 inches (102 mm) and a height of 1-3/4 inches (44 mm), it seamlessly integrates with a variety of design aesthetics. The FH4DUS is particularly beneficial for scenarios where floor closers cannot be utilized due to special finishes or minimal floor thickness. It accommodates overhead concealed door closers or pivots, ensuring a clean and sophisticated look. Available in six standard architectural finishes, this header can also be customized for different configurations, glass thicknesses, and lengths upon special order. For installations where the transom's weight exceeds 100 lbs. (45.4 kg), it must be supported from the ceiling to prevent bowing, utilizing either the B5BC Smoke Baffle Channel or PH94 Patch Fittings. Always consult a structural engineer to confirm suitability for your specific application and ensure compliance with local regulations. Trust in C.R. Laurence for durable, high-quality architectural solutions.

Black Bronze Anodized Single Floating Header for Overhead Concealed Door Closers for 36" Wide Opening

• For Use with 1/2" (12 mm) Glass Only
• Ideal for Use on Jobs Where Cutting Into the Floor for a Floor Closer is Not an Option
• Available for Glass-to-Glass or Glass-to-Wall Installations With Overhead Concealed Door Closers or Pivots
• Six Standard Architectural Finishes
• Custom Headers Available on Special Order

These CRL Floating Headers for Overhead Concealed Door Closers allow the mounting of single or double doors off glass sidelites, with a transom above. Stock Floating Headers are for use in 1/2" (12 mm) glass-to-glass installations, and are prepared to accept CRL Overhead Concealed Door Closers and a 1/2" (12 mm) thick glass transom.


Custom Floating Headers cover the rest of the offered configurations, including various glass thicknesses, Headers in custom lengths, glass-to-wall configurations, and Headers prepped for surface mounted magnetic locks, magnetic shear locks, a surface mounted top pivot, a walking beam pivot or an overhead concealed door closer.

NOTE: If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. You can use either B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales for assistance.

APPLICATION TIP: For jobs where floor closers are not an option due to special finishes or minimal floor thickness, the CRL Floating Header for Overhead Concealed Door Closers is the ideal solution.

STOCK FLOATING HEADERS: For 1/2" (12 mm) glass-to-glass installations, and prepped for Overhead Concealed Door Closers.


Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

If the weight of the transom above the header exceeds 100 pounds (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.

Resources

• Floating Header Clad Glass Preparation Template.dwg
• Floating Header Clad Glass Preparation Template.pdf
• Floating Header Installation Instructions
• Floating Header Non Clad Glass Preparation Template.dwg
• Floating Header Non Clad Glass Preparation Template.pdf
