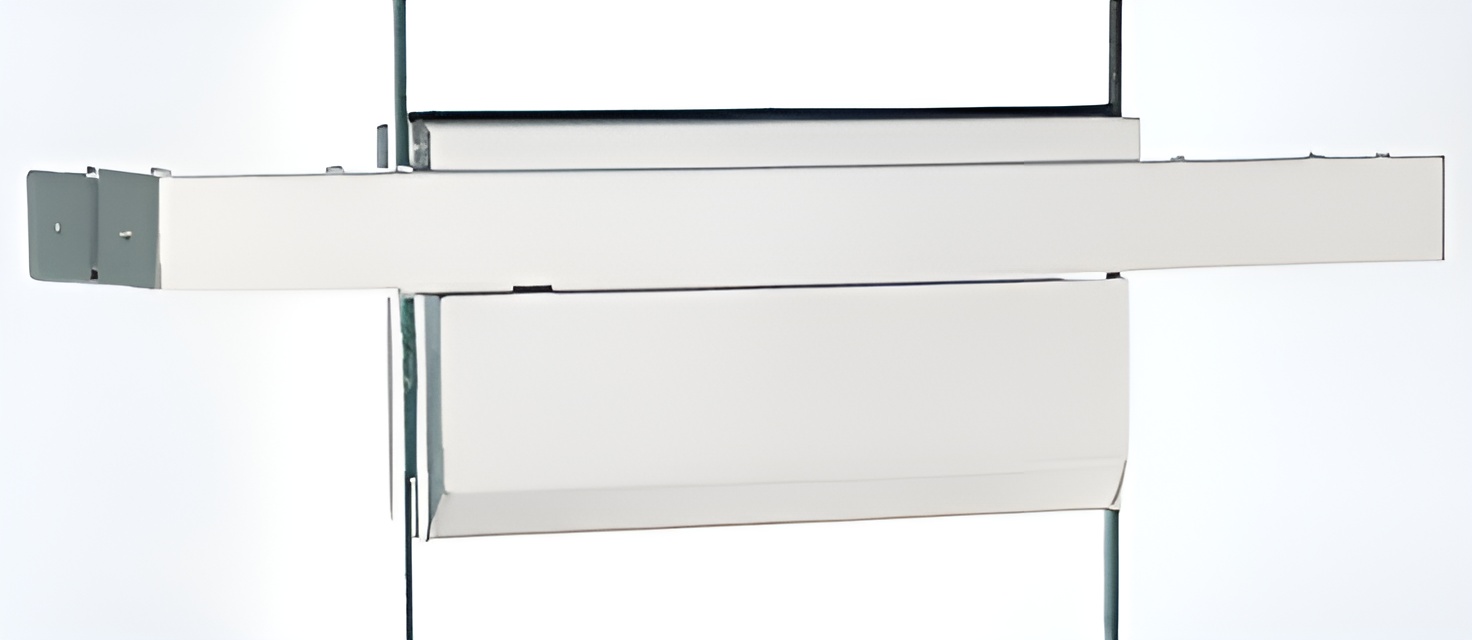

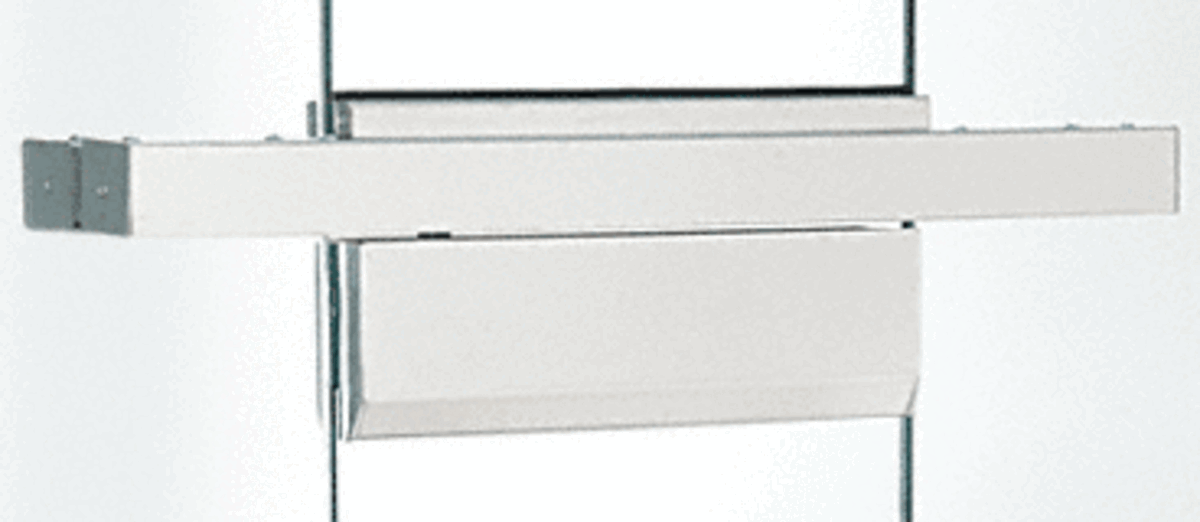

CRL FH4PSS Polished Stainless Single Floating Header for 36" Concealed Door Closers

CRL FH4PSS Polished Stainless Single Floating Header for 36" Concealed Door Closers

C.R. Laurence FH4PSS Polished Stainless Single Floating Header for Overhead Concealed Door Closers is designed to provide a sleek and efficient solution for overhead door installations. Constructed for use with 1/2" (12 mm) glass, this header is ideal for projects where traditional floor closers are impractical, allowing for a streamlined design without compromising functionality. This versatile floating header accommodates glass-to-glass or glass-to-wall configurations, making it suitable for various applications. It is specifically prepared to integrate seamlessly with CRL Overhead Concealed Door Closers and supports a 1/2" (12 mm) thick glass transom. Available in six standard architectural finishes, the FH4PSS can also be customized to meet unique project specifications. When using this header, it’s essential to note that if the weight of the transom exceeds 100 lbs. (45.4 kg), additional support from the ceiling is necessary to prevent bowing. Recommended supporting options include the B5BC Smoke Baffle Channel or PH94 Patch Fittings. With a height of 1-3/4 in. (44 mm) and width of 4 in. (102 mm), the polished stainless steel finish not only enhances durability but also provides a modern aesthetic. For a reliable and stylish solution to overhead door installations, the C.R. Laurence FH4PSS is an excellent choice.

Polished Stainless Single Floating Header for Overhead Concealed Door Closers for 36" Wide Opening

• For Use with 1/2" (12 mm) Glass Only
• Ideal for Use on Jobs Where Cutting Into the Floor for a Floor Closer is Not an Option
• Available for Glass-to-Glass or Glass-to-Wall Installations With Overhead Concealed Door Closers or Pivots
• Six Standard Architectural Finishes
• Custom Headers Available on Special Order

These CRL Floating Headers for Overhead Concealed Door Closers allow the mounting of single or double doors off glass sidelites, with a transom above. Stock Floating Headers are for use in 1/2" (12 mm) glass-to-glass installations, and are prepared to accept CRL Overhead Concealed Door Closers and a 1/2" (12 mm) thick glass transom.


Custom Floating Headers cover the rest of the offered configurations, including various glass thicknesses, Headers in custom lengths, glass-to-wall configurations, and Headers prepped for surface mounted magnetic locks, magnetic shear locks, a surface mounted top pivot, a walking beam pivot or an overhead concealed door closer.

NOTE: If the weight of the transom above the header exceeds 100 lbs. (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. You can use either B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales for assistance.

APPLICATION TIP: For jobs where floor closers are not an option due to special finishes or minimal floor thickness, the CRL Floating Header for Overhead Concealed Door Closers is the ideal solution.

STOCK FLOATING HEADERS: For 1/2" (12 mm) glass-to-glass installations, and prepped for Overhead Concealed Door Closers.


Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

If the weight of the transom above the header exceeds 100 pounds (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• Floating Header Clad Glass Preparation Template.dwg
• Floating Header Clad Glass Preparation Template.pdf
• Floating Header Installation Instructions
• Floating Header Non Clad Glass Preparation Template.dwg
• Floating Header Non Clad Glass Preparation Template.pdf
