CRL FL2820 28" Tubular Spiral Tilt Window Balance with Red Bushing

Your Price: $19.87
Retail Price:$23.78
Your Savings:$3.91(16%)
CRL FL2820 28" Tubular Spiral Tilt Window Balance with red bushing supports up to 25 lbs, replacing metal or plastic balances.
Part Number : CRL_FL2820
Availability: 823 In Stock
CRL FL2820 28" Tubular Spiral Tilt Window Balance with Red Bushing

C.R. Laurence FL2820 28" Tubular Spiral Tilt Window Balance with Red Bushing is designed specifically for tilt-type windows, providing reliable support and functionality. Capable of handling sash load weights of up to 25 pounds (11.3 kg), this balance is an ideal replacement for both metal and plastic tube balances. With an industry-standard 3/8" (10 mm) tube diameter, it seamlessly integrates into various window systems. This balance features a red bushing, allowing for easy identification of the load capacity, and it can replace existing spiral balances that utilize a white bushing of the same size. For optimal performance and safety, it is recommended to replace both balances in the window simultaneously to ensure even weight distribution and smooth operation. When ordering, make sure to check the tube diameter, tube length-measured from the end of the balance to the bottom of the colored nylon bushing-along with the bushing color and rod extension length. With no shipping limitations and a straightforward installation process, this balance is a reliable choice for both building professionals and knowledgeable homeowners looking to maintain window functionality. Trust in C.R. Laurence for quality glazing supplies that deliver exceptional performance and durability.

28" Tubular Spiral Tilt Window Balance Red Bushing

  • Red Bushing Indicates Sash Load Weights of Up to 25 Pounds (11.3 Kg)
  • Tilt Window Type with Industry Standard 3/8" (10 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

This CRL Tubular Spiral Window Balance for tilt type windows will replace a metal or plastic tube balance with a sash load capacity of up to 25 pounds (11.3 kg). It will also replace same size spiral balances with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.


How to Order Tubular Spiral Window Balances
  • 1. Check the tube diameter of the metal or plastic tube on the old balance.

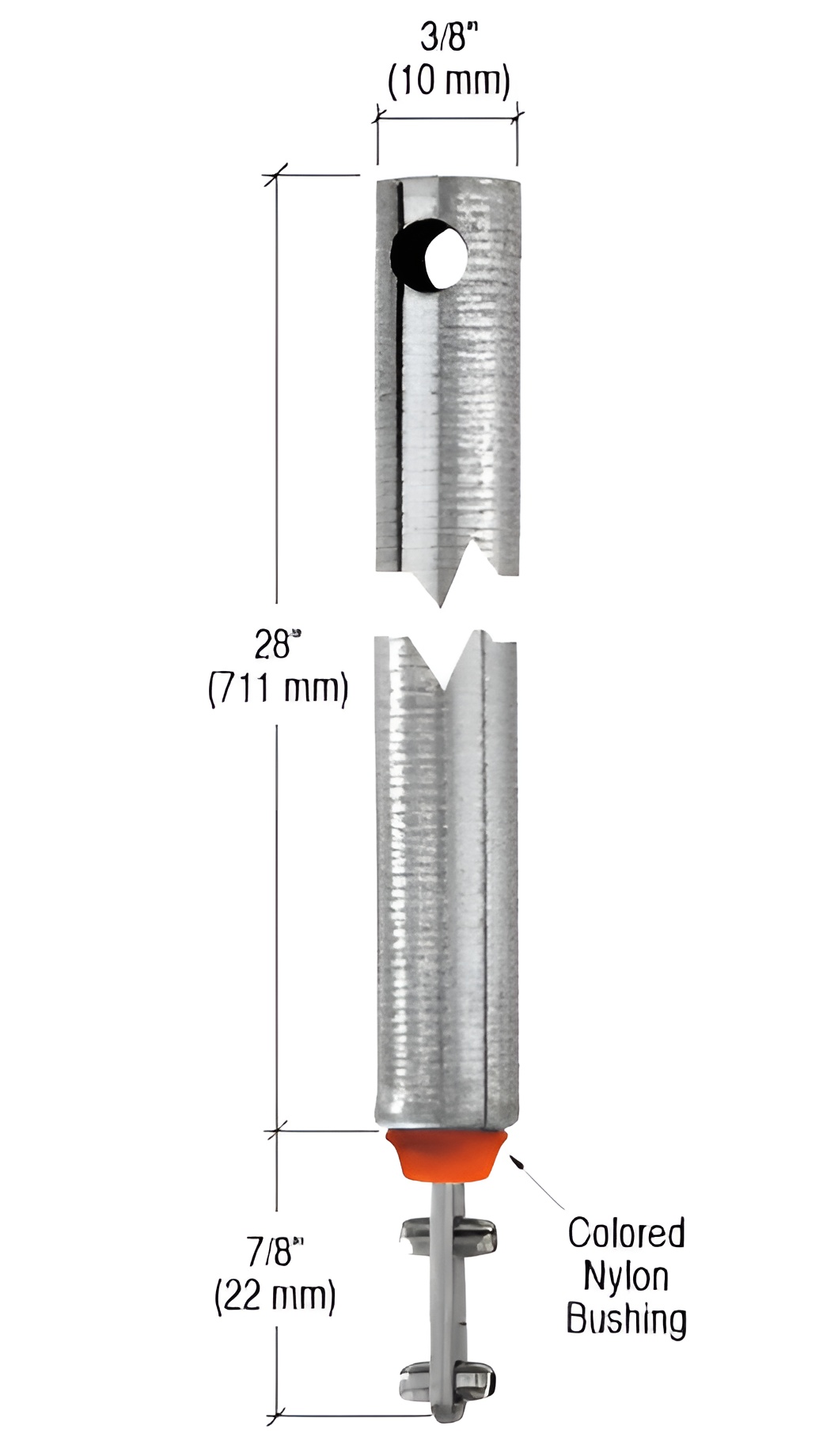

  • 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.
  • 3. Check the color of the nylon bushing.
  • 4. Verify that the rod extension protruding from the nylon bushing matches.
  • 5. Match tube diameter, tube length, nylon bushing color against the information shown next to the catalog number. If all agree, and the rod extension matches the one in the photo, then this is the correct balance.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Bushing Color: Red

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Guides Attached: No

    Heaviest Vent Weight Range: 25

    Series: FL Series Balances

    Shipping Limitations: None

    Tube Diameter: 3/8

    Tube Length: 28

    Window Type: Tilt
