CRL FM1820 18
Images may not represent actual product and finish

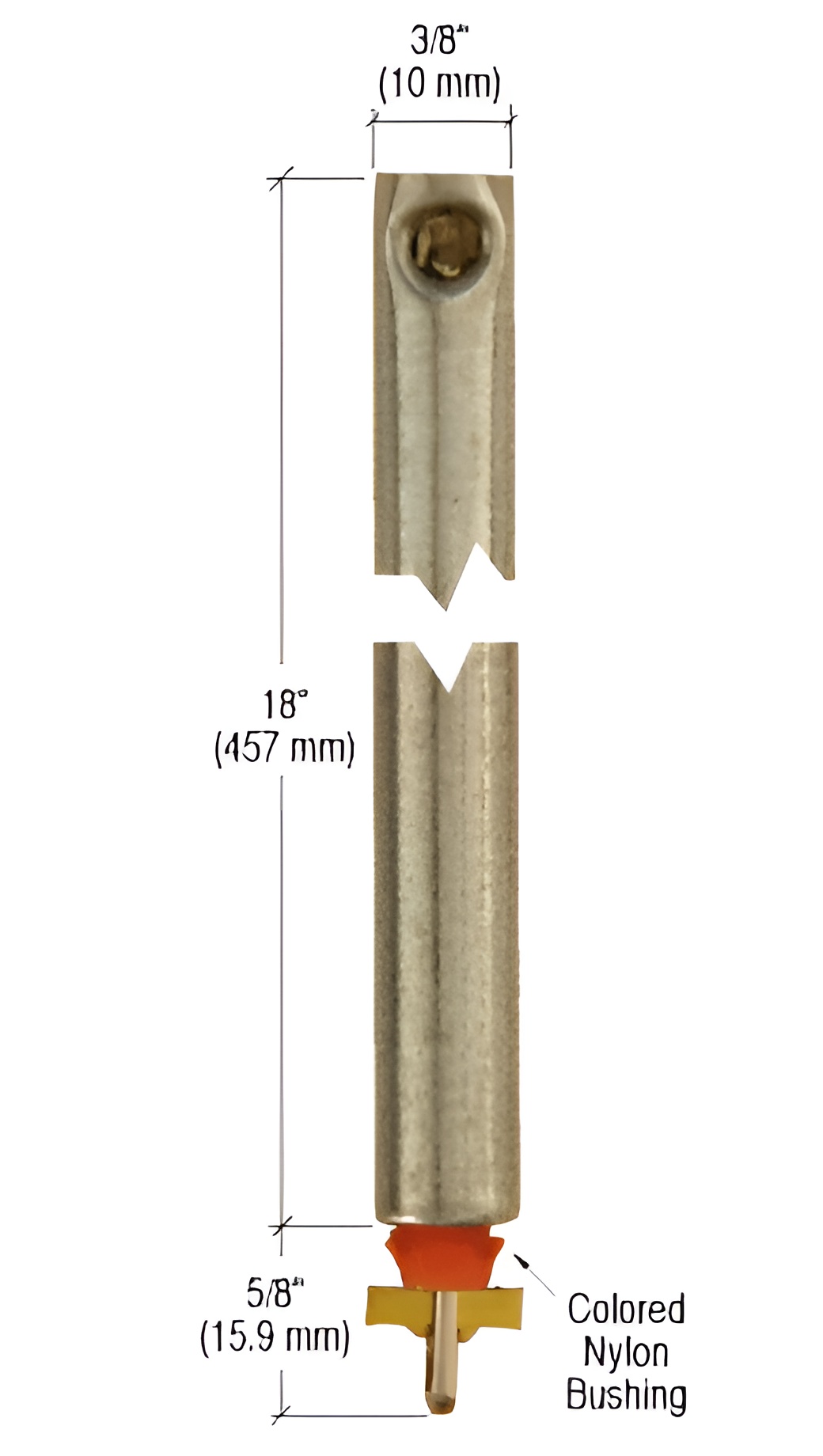

CRL FM1820 18" Tubular Spiral Non-Tilt Window Balance with Red Bushing

Your Price: $15.61
Retail Price:$18.68
Your Savings:$3.07(16%)
CRL FM1820 18" Tubular Spiral Non-Tilt Window Balance supports up to 25 lbs, featuring a standard 3/8" diameter tube.
Part Number : CRL_FM1820
Availability: 20 In Stock
CRL FM1820 18" Tubular Spiral Non-Tilt Window Balance with Red Bushing

C.R. Laurence FM1820 18" Tubular Spiral Non-Tilt Window Balance is designed for optimal performance, accommodating sash load weights of up to 25 pounds. With an industry-standard tube diameter of 3/8" (10 mm), this window balance provides a reliable solution for replacing both metal and plastic tube balances, including those with a white bushing. This standard-duty balance is particularly beneficial for maintaining the functionality of non-tilt windows. Although each unit is sold individually, it's advisable to replace both balances in a window simultaneously for enhanced performance and consistency. When selecting a Tubular Spiral Window Balance, it's essential to verify the diameter of the old balance's tube and measure the tube length, excluding the rod length. The red nylon bushing indicates it is a standard-duty option, while compatibility checks on the rod fitting will ensure the correct series selection between "FM" and "FR." The FM1820 balance is a straightforward, durable choice for window maintenance, ensuring smooth operation while providing peace of mind. For shipping, this product can conveniently ship via UPS, making it a hassle-free addition to your glazing supplies.

18" Tubular Spiral Non-Tilt Window Balance Red Bushing

  • For Sash Load Weights of Up to 25 Pounds
  • Industry Standard 3/8" (10 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

This standard duty CRL Tubular Spiral Non-Tilt Window Balance will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds. This unit will also replace spiral balances with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.


How to Order Tubular Spiral Window Balances
  • 1. To select the proper Tubular Spiral Balance, check diameter of the metal or plastic tube on the old balance: 9/16" is Series "FJ"; 3/8" is Series "FM" or "FR", depending on the fitting at the end of the rod.
  • 2. Measure Tube Length only; do not include rod length.
  • 3. Check color of Nylon Bushing. If White or Red, select a Standard Duty Balance; if Blue, select a Heavy-Duty Balance.
  • 4. Verify if fitting on rod protruding from the Nylon Bushing matches. Select the appropriate series ("FM" or "FR") if balance diameter is 3/8".
  • 5. Order quantity required of each new balance by the catalog number.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Bushing Color: Red

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Guides Attached: No

    Heaviest Vent Weight Range: 25

    Series: FM Series Balances

    Shipping Limitations: None

    Tube Diameter: 3/8

    Tube Length: 18

    Window Type: Non-Tilt
