CRL FM2420 24
Images may not represent actual product and finish

CRL FM2420 24" Spiral Non-Tilt Window Balance with Red Bushing

Your Price: $19.87
Retail Price:$23.78
Your Savings:$3.91(16%)
CRL FM2420 24" Tubular Spiral Non-Tilt Window Balance supports up to 25 lbs, featuring a durable 3/8" tube diameter.
Part Number : CRL_FM2420
Availability: 51 In Stock
CRL FM2420 24" Spiral Non-Tilt Window Balance with Red Bushing

C.R. Laurence FM2420 24" Tubular Spiral Non-Tilt Window Balance Red Bushing is an essential component for maintaining window functionality in your home or commercial building. Designed to support sash load weights of up to 25 pounds, this standard duty balance is ideal for replacing either metal or plastic tube balances, ensuring a seamless fit and reliable performance. With an industry-standard 3/8" (10 mm) tube diameter, the FM2420 is compatible with various window types, specifically non-tilt windows. The red nylon bushing indicates its standard-duty classification, making it suitable for a wide range of applications. For optimal performance and longevity, it is recommended to replace both balances in a window simultaneously, promoting balanced operation. To select the right tubular spiral balance, consider the diameter of your existing balance and the color of the bushing. This unit can effectively replace spiral balances featuring a white bushing as well. Its straightforward installation process ensures quick replacement, minimizing disruptions in your daily routine. For dependable window operation and peace of mind, the C.R. Laurence FM2420 is the perfect choice, bringing reliability and durability to your glazing needs.

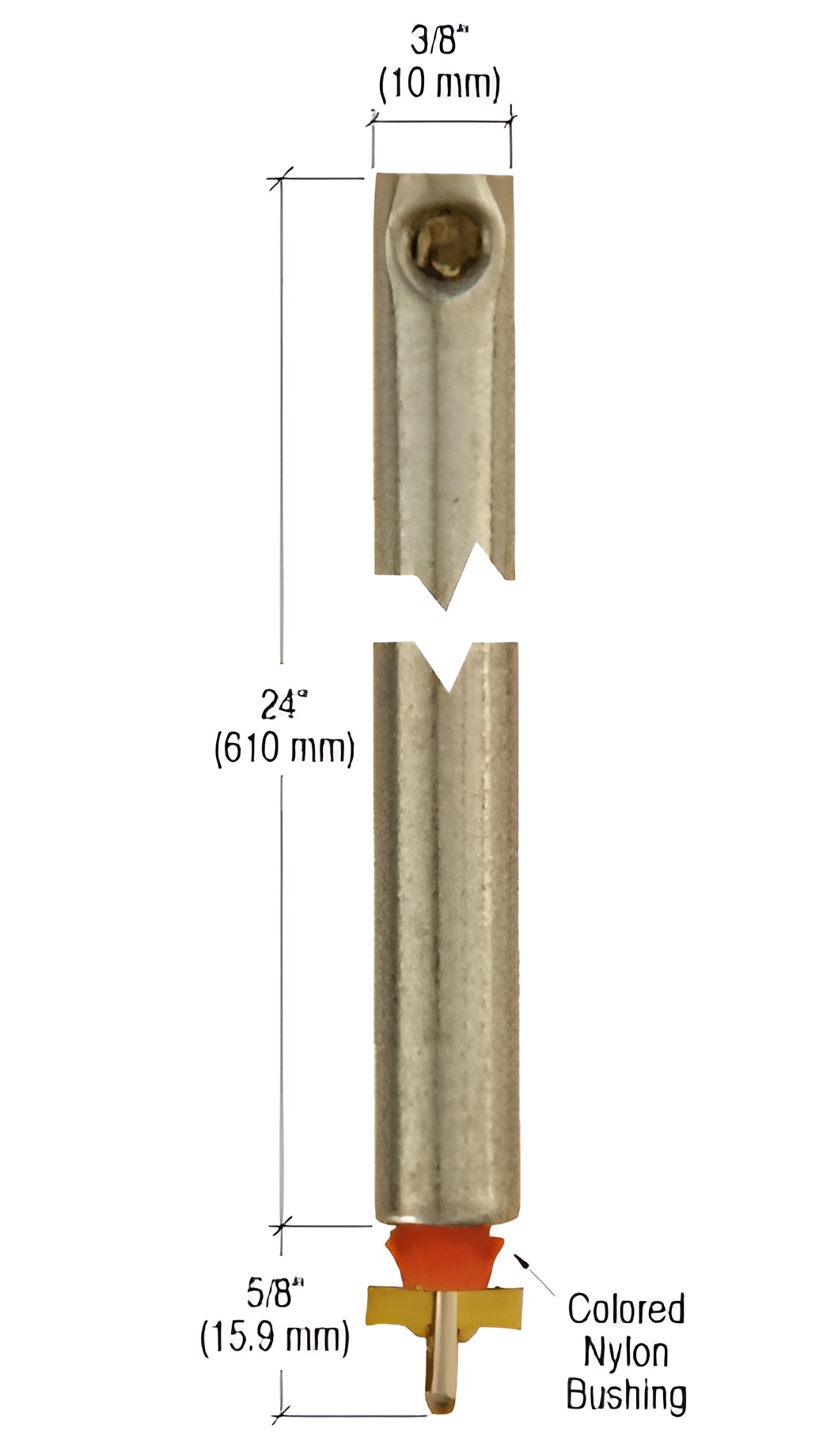

24" Tubular Spiral Non-Tilt Window Balance Red Bushing

  • For Sash Load Weights of Up to 25 Pounds
  • Industry Standard 3/8" (10 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

This standard duty CRL Tubular Spiral Non-Tilt Window Balance will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds. This unit will also replace spiral balances with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.


How to Order Tubular Spiral Window Balances
  • 1. To select the proper Tubular Spiral Balance, check diameter of the metal or plastic tube on the old balance: 9/16" is Series "FJ"; 3/8" is Series "FM" or "FR", depending on the fitting at the end of the rod.
  • 2. Measure Tube Length only; do not include rod length.
  • 3. Check color of Nylon Bushing. If White or Red, select a Standard Duty Balance; if Blue, select a Heavy-Duty Balance.
  • 4. Verify if fitting on rod protruding from the Nylon Bushing matches. Select the appropriate series ("FM" or "FR") if balance diameter is 3/8".
  • 5. Order quantity required of each new balance by the catalog number.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Bushing Color: Red

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Guides Attached: No

    Heaviest Vent Weight Range: 25

    Series: FM Series Balances

    Shipping Limitations: None

    Tube Diameter: 3/8

    Tube Length: 24

    Window Type: Non-Tilt
