CRL FM2520 25" Tubular Spiral Non-Tilt Window Balance with Red Bushing

Your Price: $18.45
Retail Price:$22.08
Your Savings:$3.63(16%)
CRL FM2520: 25" Tubular Spiral Non-Tilt Window Balance for sash loads up to 25 lbs; replaces metal or plastic balances.
Part Number : CRL_FM2520
Availability: 25 In Stock

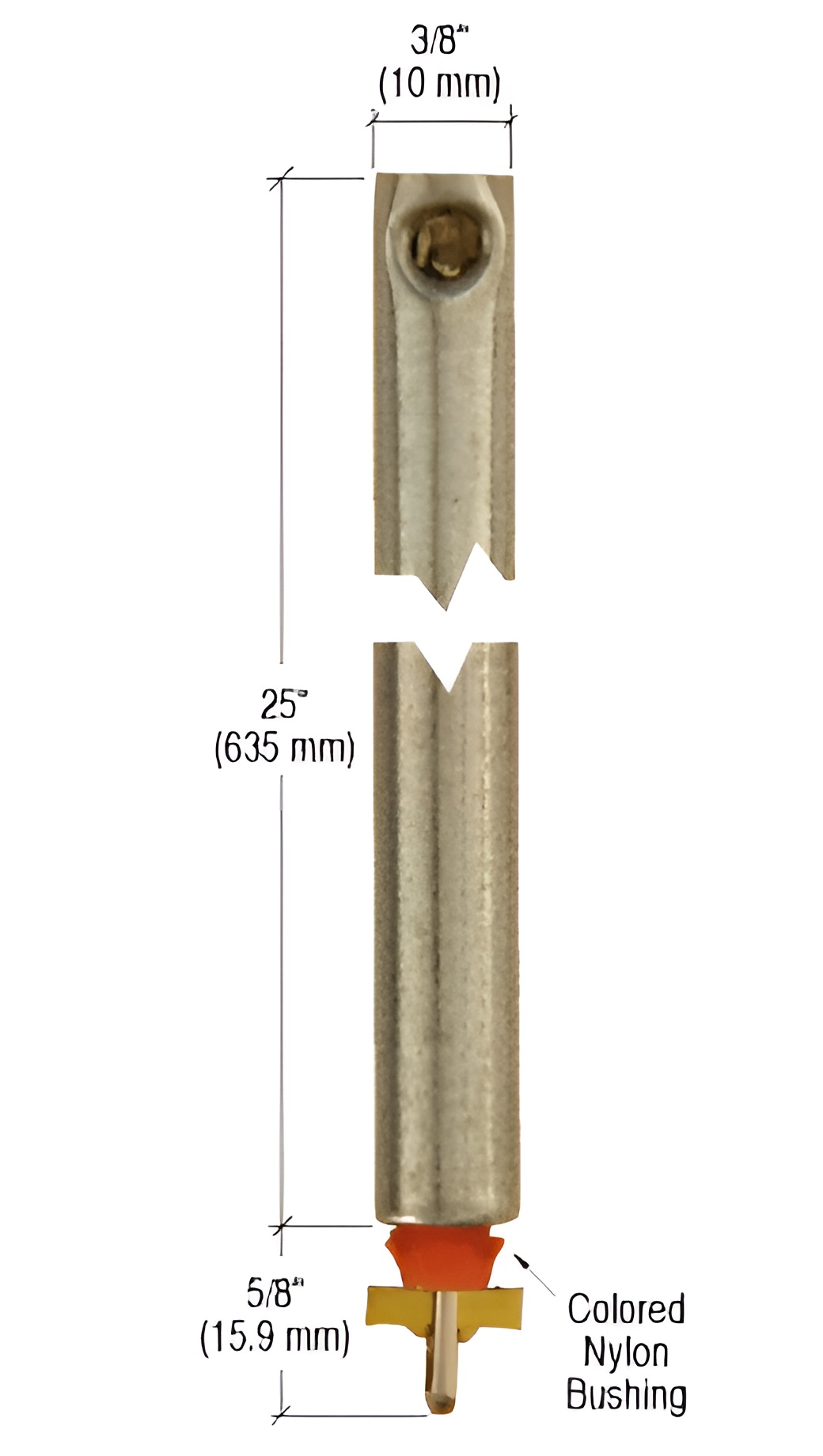

CRL FM2520 25" Tubular Spiral Non-Tilt Window Balance with Red Bushing

C.R. Laurence FM2520 25" Tubular Spiral Non-Tilt Window Balance Red Bushing is designed to effectively support sash load weights of up to 25 pounds. With an industry-standard tube diameter of 3/8" (10 mm), this balance provides a versatile solution for both metal and plastic tube replacements. It is particularly beneficial for those seeking to replace existing spiral balances featuring a white bushing. This standard-duty unit is sold individually, but it is recommended to replace both balances in a window simultaneously for optimal performance. When ordering, it’s important to ensure the correct specifications are met: measure the tube diameter and length accurately and check the bushing color. If the bushing is red or white, the FM series balance is suitable; for blue bushings, consider a heavy-duty option. This product not only guarantees reliable performance but also simplifies the replacement process for building professionals and knowledgeable homeowners alike. The C.R. Laurence FM2520 is a dependable choice for maintaining window functionality and aesthetics, enabling smooth operation for non-tilt window systems. Trust in C.R. Laurence's commitment to quality and performance with this essential window balance solution.

25" Tubular Spiral Non-Tilt Window Balance Red Bushing

  • For Sash Load Weights of Up to 25 Pounds
  • Industry Standard 3/8" (10 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

This standard duty CRL Tubular Spiral Non-Tilt Window Balance will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds. This unit will also replace spiral balances with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.


How to Order Tubular Spiral Window Balances
  • 1. To select the proper Tubular Spiral Balance, check diameter of the metal or plastic tube on the old balance: 9/16" is Series "FJ"; 3/8" is Series "FM" or "FR", depending on the fitting at the end of the rod.
  • 2. Measure Tube Length only; do not include rod length.
  • 3. Check color of Nylon Bushing. If White or Red, select a Standard Duty Balance; if Blue, select a Heavy-Duty Balance.
  • 4. Verify if fitting on rod protruding from the Nylon Bushing matches. Select the appropriate series ("FM" or "FR") if balance diameter is 3/8".
  • 5. Order quantity required of each new balance by the catalog number.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Bushing Color: Red

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Guides Attached: No

    Heaviest Vent Weight Range: 25

    Series: FM Series Balances

    Shipping Limitations: None

    Tube Diameter: 3/8

    Tube Length: 25

    Window Type: Non-Tilt
