CRL FM2620 26
Images may not represent actual product and finish

CRL FM2620 26" Tubular Spiral Non-Tilt Window Balance with Red Bushing

Your Price: $17.03
Retail Price:$20.38
Your Savings:$3.35(16%)
CRL FM2620 26" Tubular Spiral Non-Tilt Window Balance supports up to 25 lbs, featuring a standard 3/8" tube diameter.
Part Number : CRL_FM2620
Availability: 18 In Stock

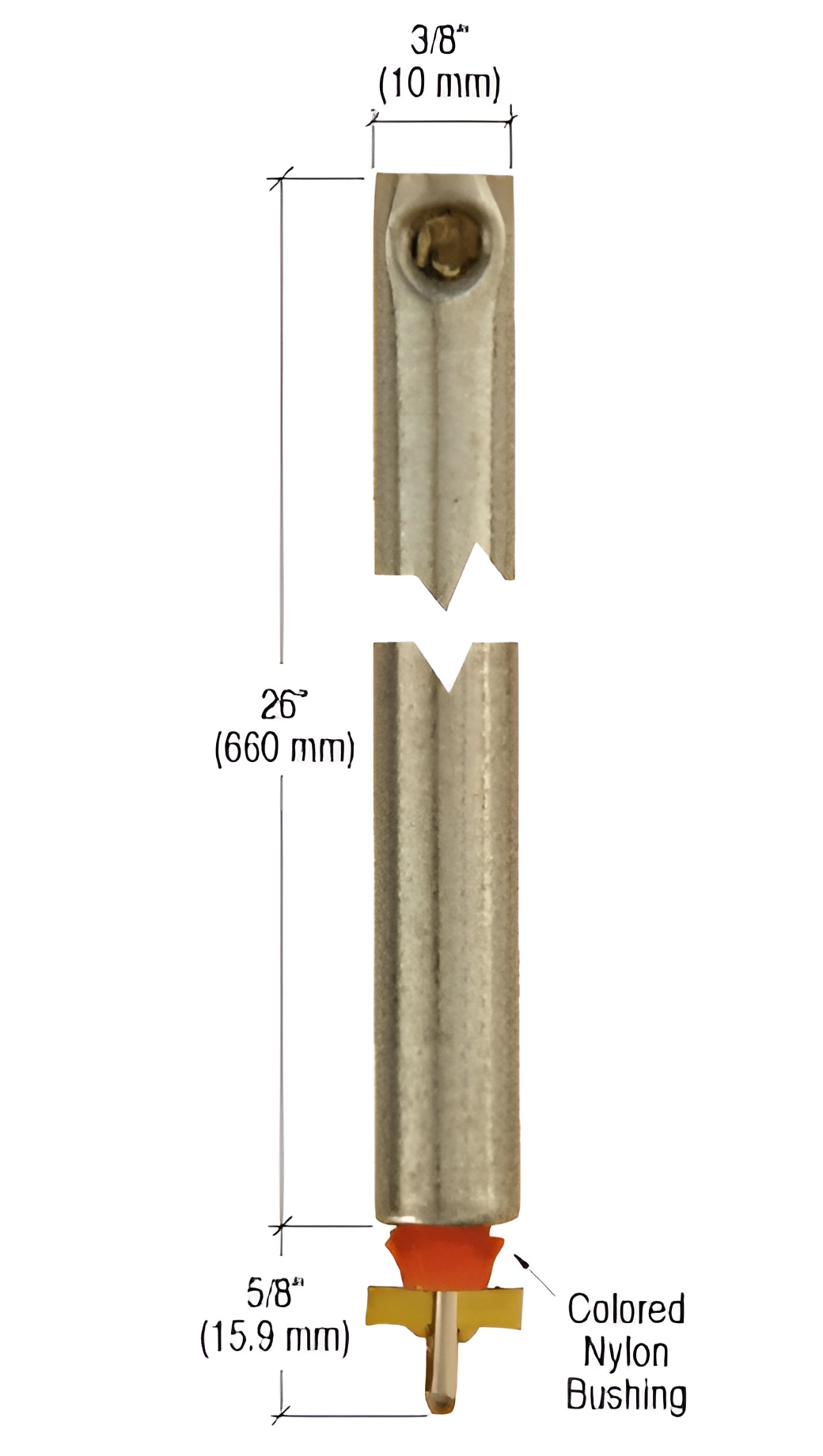

CRL FM2620 26" Tubular Spiral Non-Tilt Window Balance with Red Bushing

C.R. Laurence FM2620 26" Tubular Spiral Non-Tilt Window Balance is designed for optimal performance and ease of use in window systems. This standard-duty balance supports sash load weights of up to 25 pounds, making it an ideal choice for various residential and commercial applications. With an industry-standard tube diameter of 3/8" (10 mm), it seamlessly replaces both metal and plastic tube balances, ensuring compatibility and ease of installation. The FM2620 unit is specifically crafted to replace spiral balances featuring a white bushing, allowing for a straightforward upgrade of your existing window system. While this balance is sold individually, it’s recommended to replace both balances in a window simultaneously for uniform performance. To select the appropriate balance, measure the diameter of the existing tube and the tube length without including the rod length. Pay attention to the color of the nylon bushing-red indicates a standard duty balance. Verify that the fitting on the rod matches the specifications outlined in the ordering guide. With no shipping limitations and the ability to ship via UPS, the C.R. Laurence FM2620 is a reliable choice for enhancing window functionality while maintaining structural integrity.

26" Tubular Spiral Non-Tilt Window Balance Red Bushing

  • For Sash Load Weights of Up to 25 Pounds
  • Industry Standard 3/8" (10 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

This standard duty CRL Tubular Spiral Non-Tilt Window Balance will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds. This unit will also replace spiral balances with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.


How to Order Tubular Spiral Window Balances
  • 1. To select the proper Tubular Spiral Balance, check diameter of the metal or plastic tube on the old balance: 9/16" is Series "FJ"; 3/8" is Series "FM" or "FR", depending on the fitting at the end of the rod.
  • 2. Measure Tube Length only; do not include rod length.
  • 3. Check color of Nylon Bushing. If White or Red, select a Standard Duty Balance; if Blue, select a Heavy-Duty Balance.
  • 4. Verify if fitting on rod protruding from the Nylon Bushing matches. Select the appropriate series ("FM" or "FR") if balance diameter is 3/8".
  • 5. Order quantity required of each new balance by the catalog number.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Bushing Color: Red

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Guides Attached: No

    Heaviest Vent Weight Range: 25

    Series: FM Series Balances

    Shipping Limitations: None

    Tube Diameter: 3/8

    Tube Length: 26

    Window Type: Non-Tilt
