CRL FM2820 28
Images may not represent actual product and finish

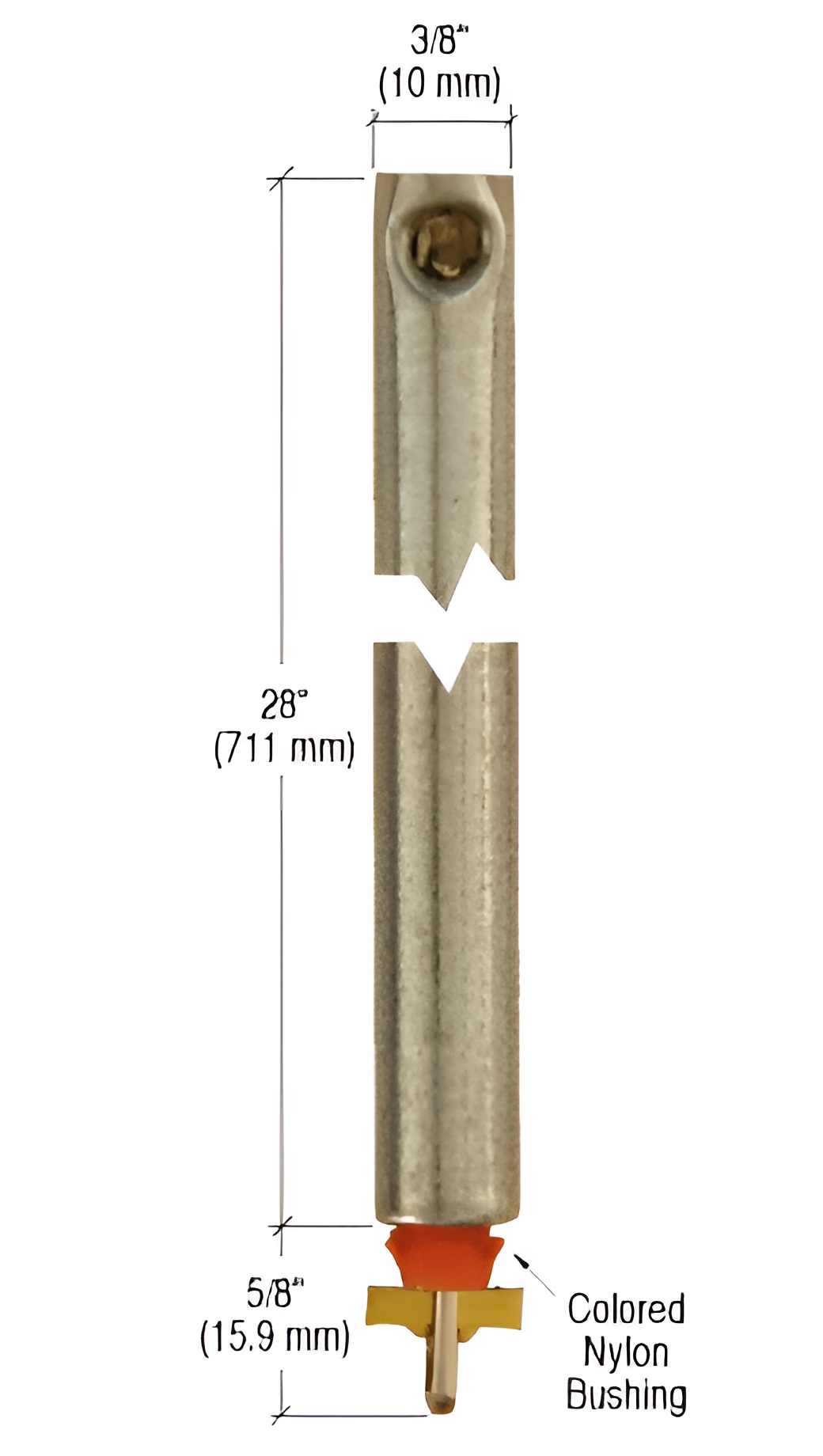

CRL FM2820 28" Tubular Spiral Non-Tilt Window Balance with Red Bushing

Your Price: $22.71
Retail Price:$27.18
Your Savings:$4.47(16%)
CRL FM2820 28" Tubular Spiral Non-Tilt Window Balance supports up to 25 lbs, featuring a standard 3/8" diameter tube.
Part Number : CRL_FM2820
Availability: 147 In Stock
CRL FM2820 28" Tubular Spiral Non-Tilt Window Balance with Red Bushing

C.R. Laurence FM2820 28" Tubular Spiral Non-Tilt Window Balance Red Bushing is designed to provide reliable support for sash loads up to 25 pounds. This standard duty balance features a 3/8" (10 mm) tube diameter, making it a versatile choice for replacing existing metal or plastic tube balances. Whether you're updating an older system or addressing a malfunction, this unit offers a straightforward solution, compatible with both red and white bushing spiral balances. Sold individually, it's advisable to replace both balances in a window simultaneously for optimal performance. To ensure you select the correct balance, check the diameter of your old balance tube, measure the tube length without including the rod length, and confirm the color of the nylon bushing. If you find a white or red bushing, the FM series is the right choice for you. This window balance is compliant with safety standards, with a warning for reproductive harm noted. With no shipping limitations, you can conveniently receive your order via UPS. Elevate your window functionality with the C.R. Laurence FM2820 and enjoy the peace of mind that comes with quality craftsmanship and dependable performance.

28" Tubular Spiral Non-Tilt Window Balance Red Bushing

  • For Sash Load Weights of Up to 25 Pounds
  • Industry Standard 3/8" (10 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

This standard duty CRL Tubular Spiral Non-Tilt Window Balance will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds. This unit will also replace spiral balances with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.


How to Order Tubular Spiral Window Balances
  • 1. To select the proper Tubular Spiral Balance, check diameter of the metal or plastic tube on the old balance: 9/16" is Series "FJ"; 3/8" is Series "FM" or "FR", depending on the fitting at the end of the rod.
  • 2. Measure Tube Length only; do not include rod length.
  • 3. Check color of Nylon Bushing. If White or Red, select a Standard Duty Balance; if Blue, select a Heavy-Duty Balance.
  • 4. Verify if fitting on rod protruding from the Nylon Bushing matches. Select the appropriate series ("FM" or "FR") if balance diameter is 3/8".
  • 5. Order quantity required of each new balance by the catalog number.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Bushing Color: Red

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Guides Attached: No

    Heaviest Vent Weight Range: 25

    Series: FM Series Balances

    Shipping Limitations: None

    Tube Diameter: 3/8

    Tube Length: 28

    Window Type: Non-Tilt
