CRL FMR1LHBS Left-Hand Brushed Stainless Steel Spider Fitting, Single Arm Wall Mount

C.R. Laurence FMR1LHBS Left Hand Brushed Stainless Regular Duty Spider Fitting Single Arm Wall Mount Frame is designed for the secure attachment of glass panels to walls or structural glass fins. This fitting accommodates 3/8" or 1/2" (10 or 12 mm) tempered glass, as well as 9/16" (13.52 mm) laminated tempered glass, making it versatile for various applications. Included with the fitting are two stainless steel threaded studs measuring M10-1.5 x 65 mm (2-9/16") and four cap nuts with washers, ensuring a reliable installation. The mounting hardware is robust, suitable for heavy-duty use, while the brushed stainless steel finish lends an attractive look that complements modern architectural designs. For those seeking additional fittings, compatible options include Cat. No. FMR1RHBS, FMR1RHPS, FMR2VBS, FMR2VPS, FMR4BS, and FMR4PS. It is important to note that glass attachments are sold separately. While the stainless steel material (Alloy 316) offers excellent corrosion resistance, periodic maintenance is recommended to maintain its factory finish. This wall-mounted fitting is compliant with safety standards, ensuring both quality and reliability for professional applications.

Left Hand Brushed Stainless Regular Duty Spider Fitting Single Arm Wall Mount Frame

• For Use with 3/8 or 1/2" (10 or 12 mm) Tempered Glass or 9/16" (13.52 mm) Laminated Tempered Glass
• Complete with Hardware to Mount to Wall or Structural Fin
• Glass Attachments Sold Separately
• Use Monolithic Tempered Glass

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer

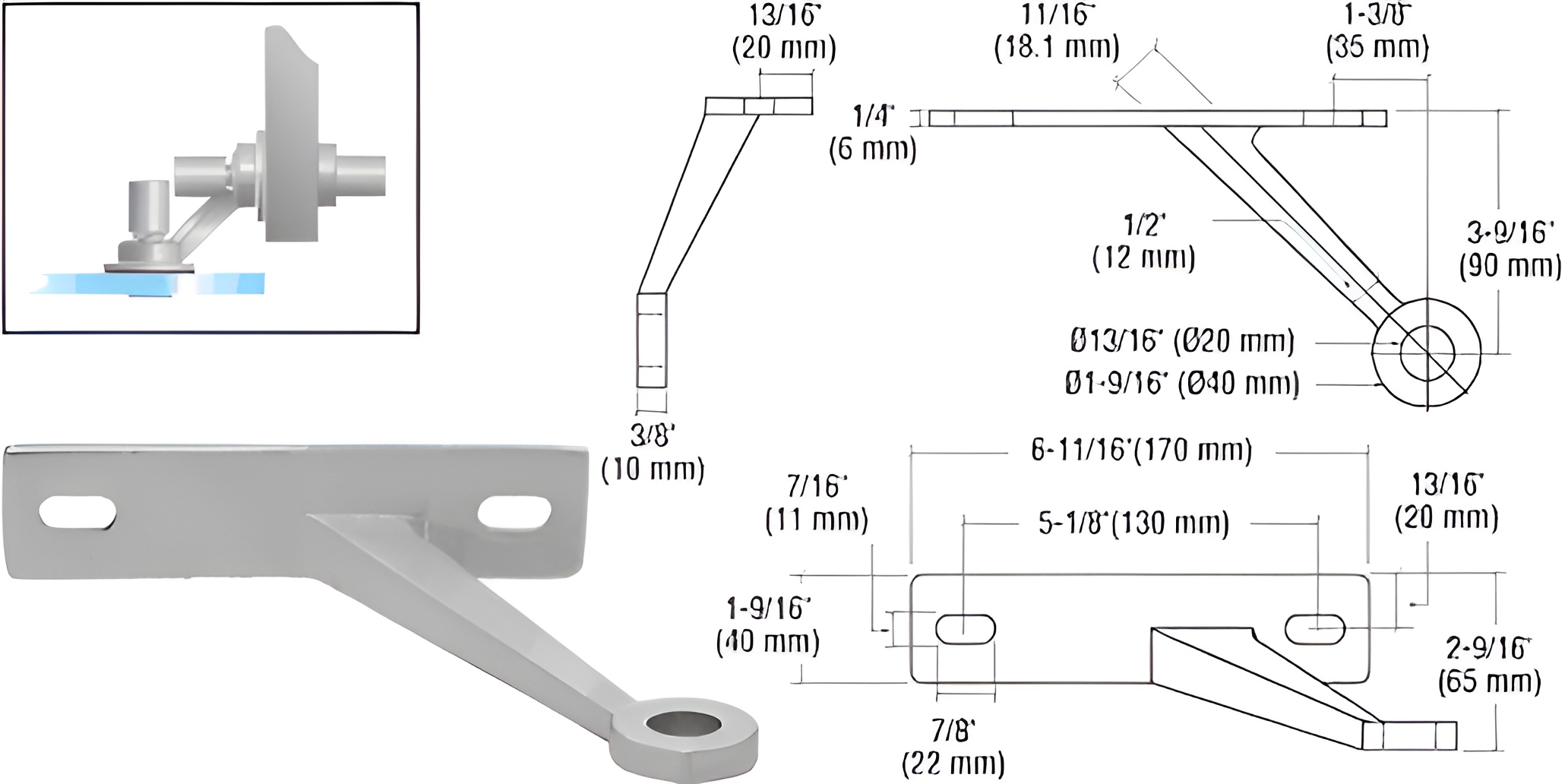

• FMR1LH Detailed CAD Drawings.dwg
• FMR1LH Detailed CAD Drawings.pdf
• Regular Duty Spider Fittings CAD Drawings.dwg
• Regular Duty Spider Fittings CAD Drawings.pdf
• Spider Fitting Glass Awning System CAD Drawings.dwg
• Spider Fitting Glass Awning System CAD Drawings.pdf
• Spider Fitting Installation Instructions
