CRL FR2222 3/8
Images may not represent actual product and finish

CRL FR2222 3/8" 2220 Non-Tilt Spiral Balance with FS342 Clip

Your Price: $19.87
Retail Price:$23.78
Your Savings:$3.91(16%)
CRL FR2222 Non-Tilt Spiral Balance supports up to 25 lbs, featuring a 3/8" diameter tube and factory-installed FS342 clip.
Part Number : CRL_FR2222
Availability: 0 Ship time varies. We email you if your order is delayed.
CRL FR2222 3/8" 2220 Non-Tilt Spiral Balance with FS342 Clip

C.R. Laurence FR2222 3/8" 2220 Non-Tilt Spiral Balance With FS342 Clip Attached is engineered for efficiency and durability in non-tilt window applications. This standard duty tubular spiral window balance seamlessly replaces existing metal or plastic tube balances, accommodating sash load weights of up to 25 pounds. The product features a 3/8" (10 mm) tube diameter, ensuring compatibility with a wide range of installations. Factory-installed with the FS342 end clip, the FR2222 provides an easy, straightforward installation process. The included guidance for ordering ensures that you match the necessary specifications, including tube length, bushing color, and rod extension. This attention to detail guarantees a perfect fit for your replacement needs. Additionally, the FR Series is versatile, with variants available featuring end clips FS340 and FS343 for different applications. The bushing color is red, adding a visual reference during installation. The FR2222 is designed to ship via UPS, making it convenient for professionals seeking reliable glazing supplies. With the C.R. Laurence FR2222, you can trust in a product that emphasizes quality and performance, making it a smart choice for both building professionals and knowledgeable homeowners alike.

3/8" 2220 Non-Tilt Spiral Balance With FS342 Clip Attached

  • Includes Factory Installed End Clip FS342
  • For Sash Load Weights of Up to 25 Pounds
  • Industry Standard 3/8" (10 mm) Tube Diameter

This standard duty CRL Tubular Spiral Window Balance for non-tilt type windows will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds. NOTE: This FR Series Balance is also available with End Clips FS340 (Cat. No. FR2220) and FS343 (Cat. No. FR2223).

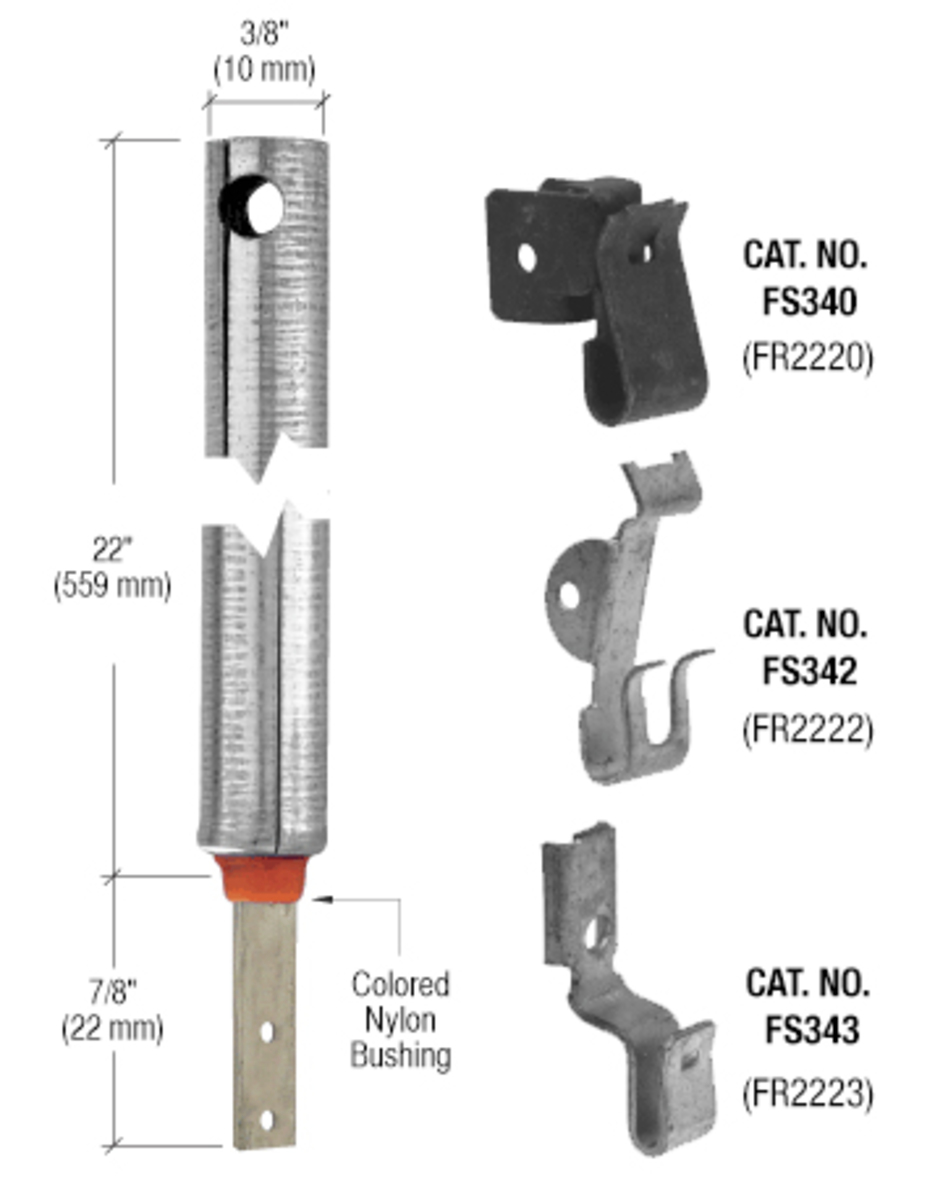

How to Order Tubular Spiral Window Balances with Factory Installed Clips:
1. Specify that the tube on the old balance is metal or plastic.
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.
3. Check the color of the nylon bushing.
4. Verify that the rod extension protruding from the nylon bushing matches.
5. Choose required clip.
6. Match tube diameter, tube length, nylon bushing color and clip against the balance to be replaced. If all agree, then this is the correct balance.


Product Warning:

NOTE: This FR Series Balance is also available with End Clips FS340 (Cat. No. FR2220) and FS343 (Cat. No. FR2223).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Bushing Color: Red

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Guides Attached: Yes

Heaviest Vent Weight Range: 25

Load Capacity: 25 Lbs

Series: FR Series Balance

Shipping Limitations: None

Tube Diameter: 3/8

Tube Length: 22

Window Type: Non-Tilt
