CRL FR62852 U.S. Aluminum Custom 2FT White KYNAR Tubular Gear Hinge Transom Frame

CRL FR62852 - U.S. Aluminum White KYNAR Paint Custom Sized Series 450 Tubular Gear Hinge Transom Frame Complete (2FT) is designed for those seeking a robust and reliable framing solution for their gear hinge doors. This complete frame accommodates a base door size of 72" x 84" and is constructed with durable JS455 Tubular Jambs and a JS467 Header. It features a 1-3/4" x 4-1/2" gear hinge transom frame that ensures a sturdy installation, complemented by standard flushbolts for added security. Included in the package is an aluminum threshold, which enhances the frame's durability while providing a clean finish. All essential components, such as door stops, weatherstripping, standard hardware, and fabrication for assembly, are included, allowing for a seamless installation experience. Please note that customers are required to supply fasteners for attaching the frame to the opening. The frame is finished in White KYNAR, offering not just aesthetic appeal but also superior resistance to the elements. Shipping is available exclusively via common carrier. For those who prioritize quality and reliability in architecture, this CRL transom frame is an excellent choice that meets professional standards while delivering exceptional performance.

-U.S. Aluminum White KYNAR Paint Custom Sized Series 450 Tubular Gear Hinge Transom Frame Complete (2FT)

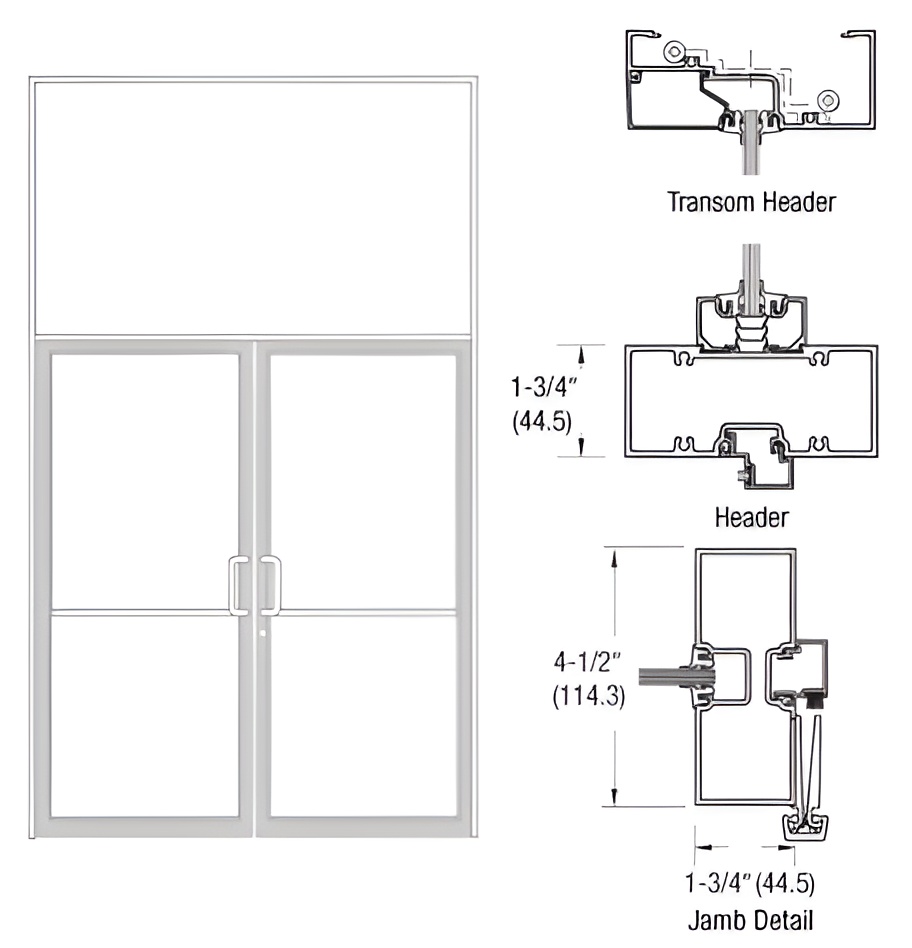

• 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Gear Hinge Transom Frame with Tubular Jambs
• With Standard Flushbolts
• Custom Size
• Aluminum Threshold is Included
