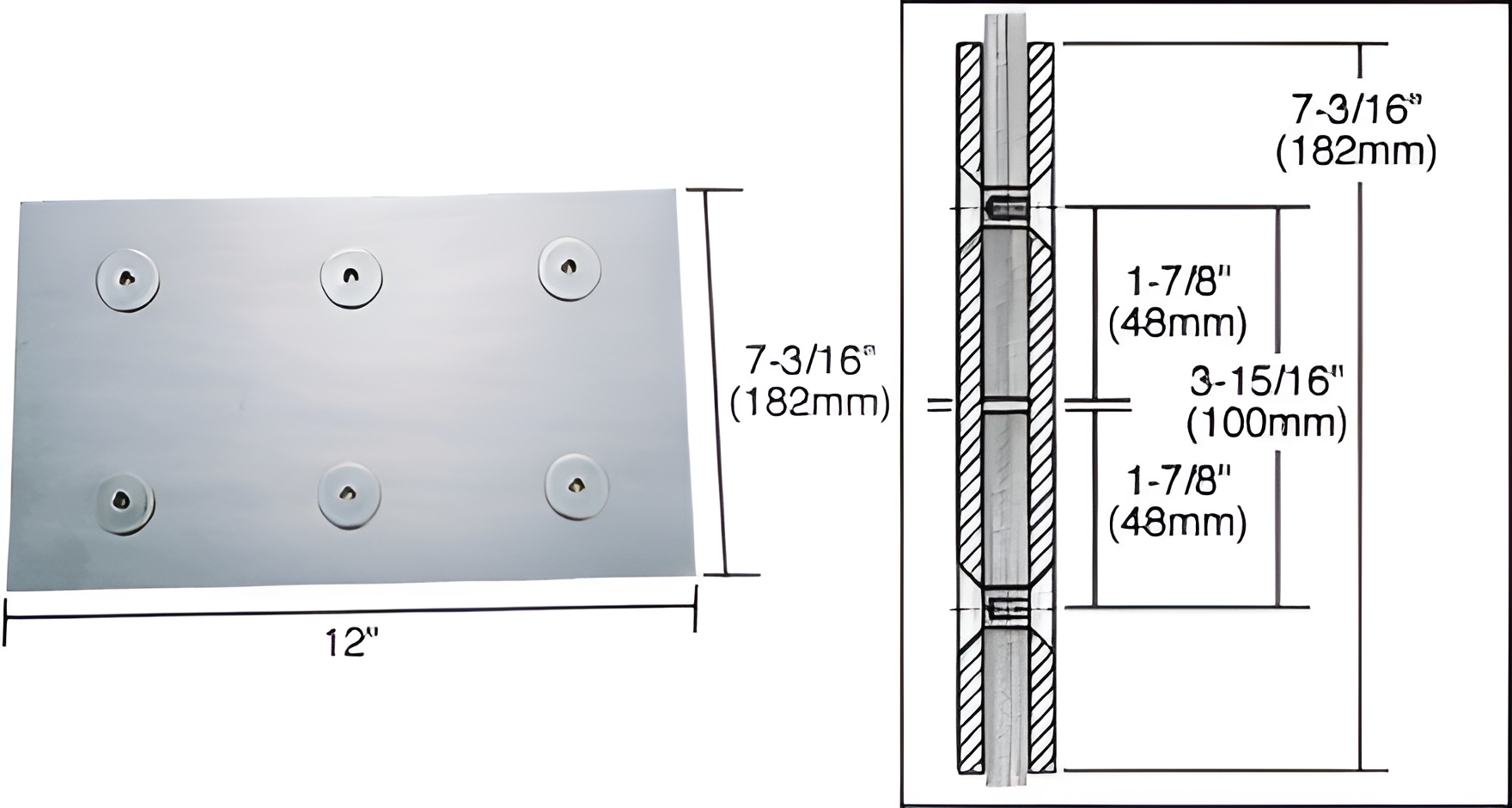

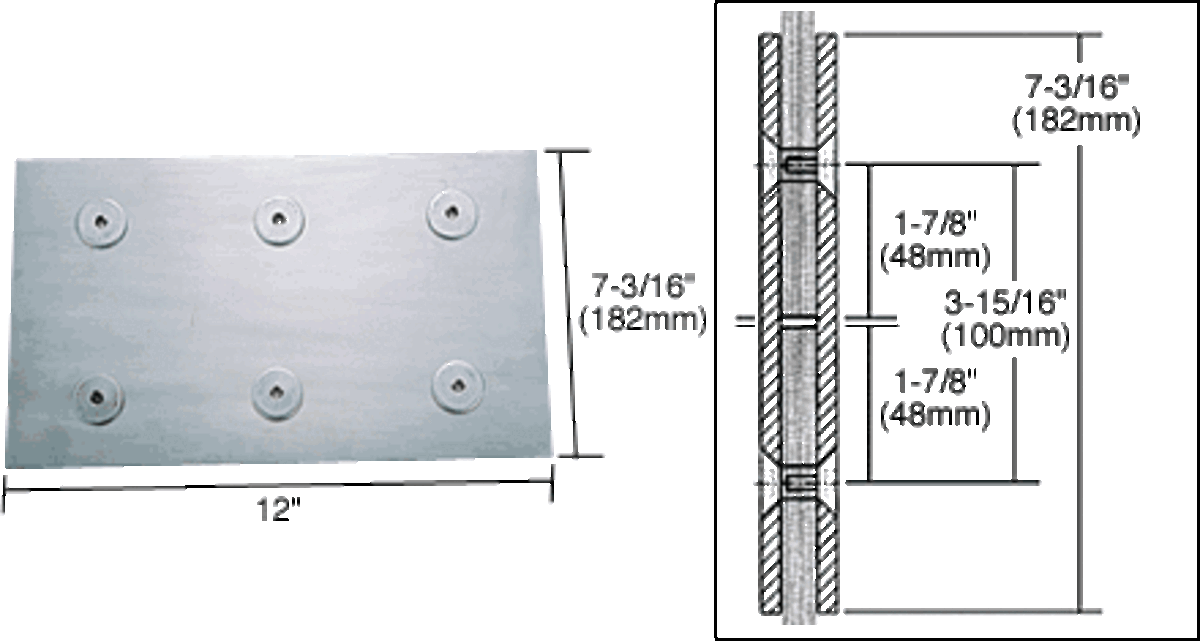

C.R. Laurence FSF12BS 316 Brushed Stainless 12" Fin Splice Fitting for 3/4" Glass is expertly crafted to enhance the stability of glass facades. Designed specifically for use with 3/4" (19 mm) tempered glass, this splice fitting enables the stacking of multiple glass pieces, creating extra tall fins that effectively support and stabilize your architectural designs. Constructed from durable 316 alloy stainless steel, the FSF12BS is available in both brushed stainless and polished stainless finishes, ensuring a refined look that complements modern aesthetics. This fitting is engineered for monolithic tempered glass, providing robust performance in demanding applications. For installation, the fitting requires one 7/8" (22 mm) diameter hole per glass fastening, ensuring a secure and stable fit. Templates can be requested for each fitting, streamlining the installation process. Importantly, this product should not be used with annealed or raw glass to maintain structural integrity. While stainless steel is known for its corrosion resistance, periodic maintenance is recommended to preserve its finish. With a heavy load capacity and compliance with stringent quality standards, the C.R. Laurence FSF12BS Fin Splice Fitting is an essential component for any project requiring reliable glass support.
316 Brushed Stainless 12" Fin Splice Fitting for 3/4" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 13/16 in. (21 mm)
Glazing Type: Tempered Monolithic, Tempered Laminated
Load Capacity: Heavy
Material: Stainless Steel (Alloy 316)
Mounting Application: Fin
Shipping Limitations: None
