Images may not represent actual product and finish

CRL GCB180SB Satin Brass 180 Traditional Glass Clamp

Your Price: $38.33

Retail Price:$45.88

Your Savings:$7.55(16%)

Secure your frameless shower enclosure with the CRL Satin Brass 180° Glass Clamp, designed for 5/16" to 1/2" thick tempered glass.

Part Number : CRL_GCB180SB

Availability: 213 In Stock

Quantity

Description

CRL GCB180SB Satin Brass 180 Traditional Glass Clamp

C.R. Laurence GCB180SB Satin Brass 180 Degree Traditional Style Glass Clamp offers a sophisticated solution for securing fixed glass panels in frameless shower enclosures. Designed for use with monolithic tempered glass ranging from 5/16" to 1/2" (8 to 12 mm) thick, this clamp provides a seamless, frameless appearance that enhances the overall aesthetic of your bathroom. Crafted from solid brass, the GCB180SB presents a durable and stylish option compared to traditional U-Channel systems, helping to achieve an 'all-glass' look. Each clamp comes equipped with appropriate mounting screws and a set of clear gaskets, ensuring a secure and reliable installation. For those utilizing 5/16" glass, an additional set of gaskets (Cat. No. UCG77) may be purchased separately. The clamp requires glass fabrication to accommodate its installation, fitting snugly with a 7/16" (11 mm) gap between panels, or allowing for notching around the screw stud for a tighter fit. With its satin brass finish, the GCB180SB combines elegance with functionality, making it an ideal choice for contemporary designs. Choose C.R. Laurence for quality, style, and reliability in your glazing projects.

Satin Brass 180 Degree Traditional Style Glass Clamp

For 5/16" to 1/2" (8 or 12 mm) Thick Glass
Use Monolithic Tempered Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps

Solid brass CRL Standard 180 Degree Glass Clamps are ideal for fixed transom or inline panel installations in frameless shower enclosures.

Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

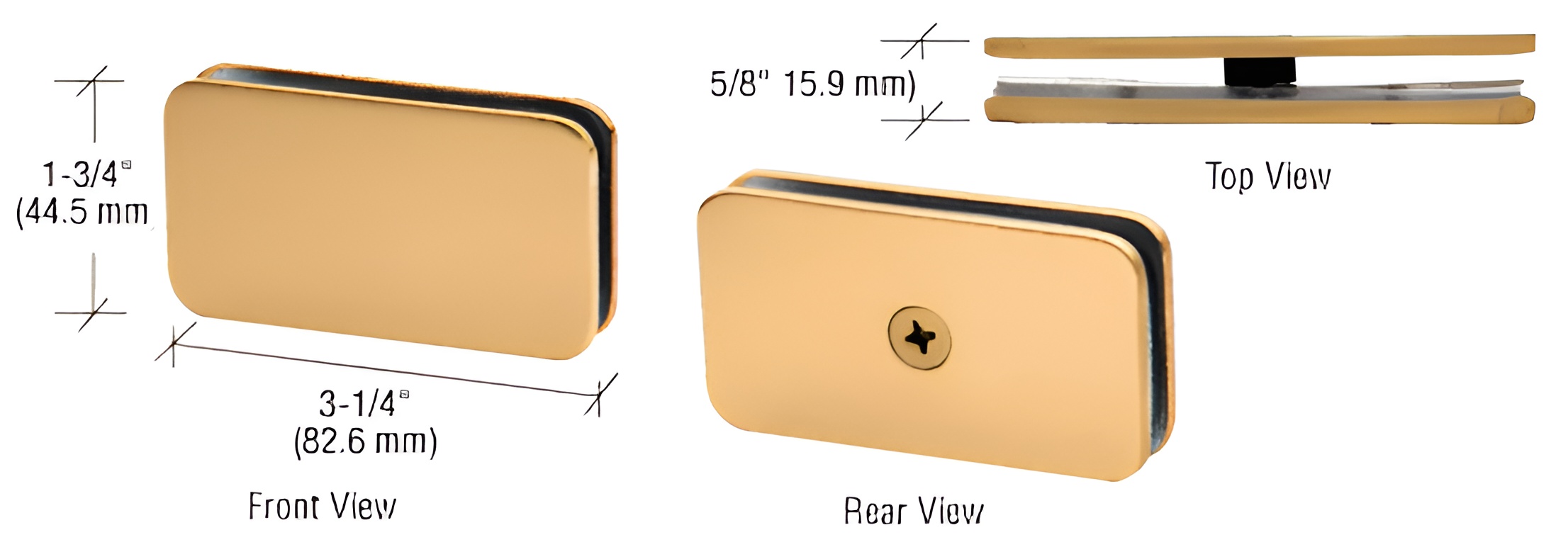

SPECIFICATIONS:
Materials: Solid Brass
Available Finishes: Shown at top of page.
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Fabrication Required: Stud will fit between panels with 7/16" (11 mm) gap, or you can notch the glass around the screw stud for a tighter gap.
Includes: Gaskets
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Brass

Glass To Glass Angle: 180

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Material: Brass

Mounting Type: Glass To Glass

Series: Traditional

Shipping Limitations: None
