CRL GCB184SB Satin Brass 180 Traditional Double Stud Glass Clamp

Your Price: $46.85

Retail Price:$56.08

Your Savings:$9.23(16%)

Secure your frameless shower enclosure with the CRL Satin Brass 180° Double Stud Glass Clamp, designed for 5/16" to 1/2" thick glass.

Part Number : CRL_GCB184SB

Availability: 199 In Stock

Quantity

Description

CRL GCB184SB Satin Brass 180 Traditional Double Stud Glass Clamp

C.R. Laurence GCB184SB Satin Brass 180 Degree Traditional Style Double Stud Glass Clamp offers an elegant solution for securing inline glass panels in modern frameless shower enclosures. Designed to accommodate glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), this clamp ensures stability and a clean aesthetic. Solid brass construction not only enhances durability but also complements a variety of finishes, allowing for seamless integration with other hardware in your design. The double stud feature of this clamp connects two glass panels securely, requiring a hole through each piece of glass for added stability. This design provides a sophisticated alternative to traditional U-Channel fittings, promoting an 'all-glass' appearance that enhances the overall look of your installation. Included with each clamp are appropriate mounting screws and a set of clear gaskets, with additional gaskets available for 5/16" glass if needed. With a maximum glass-to-glass angle of 180 degrees, the CRL GCB184SB is perfect for contemporary applications. Keep in mind that while brass is durable, it may be prone to oxidation over time, leading to a tarnished appearance. This clamp not only meets functional requirements but also elevates the design of any space it adorns.

Satin Brass 180 Degree Traditional Style Double Stud Glass Clamp

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps
Use Monolithic Tempered Glass

180 Degree Double Stud Glass Clamps allow two inline glass panels to be connected together. A hole through each piece of glass provides extra stability and security.

Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

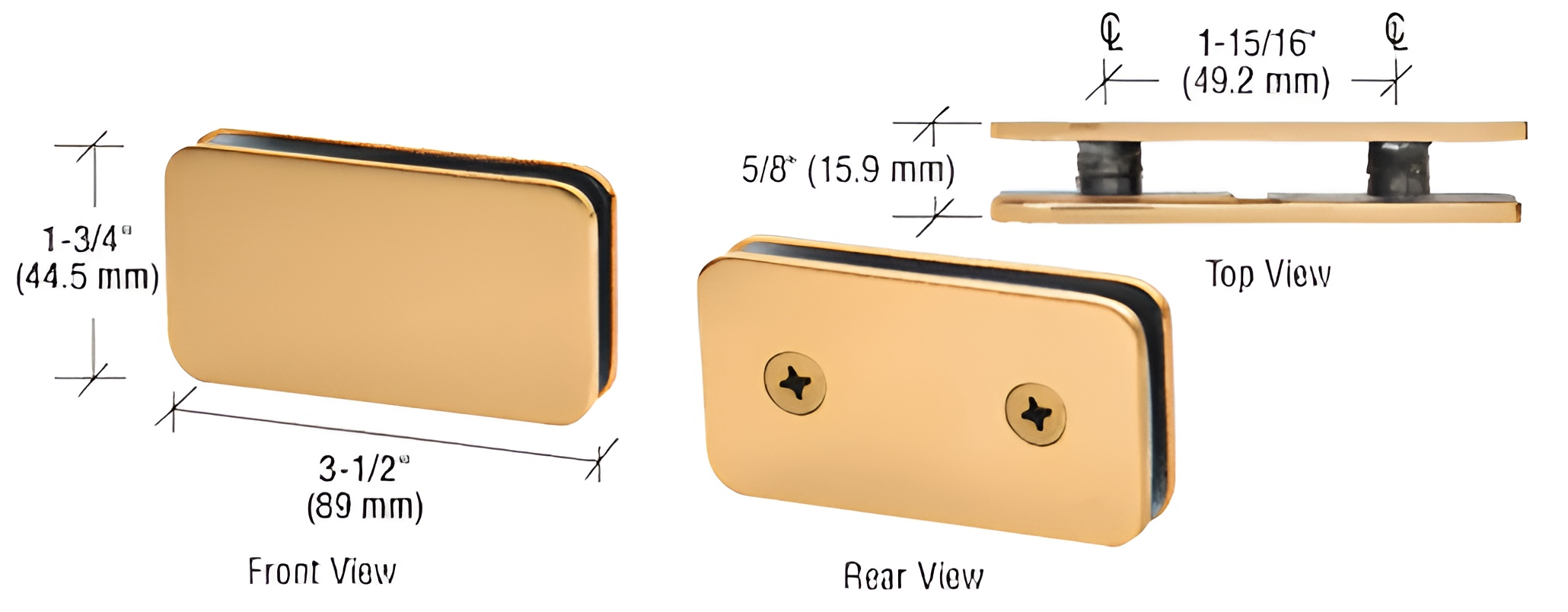

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) each panel.
Includes: Gaskets

NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Brass

Glass To Glass Angle: 180

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Material: Brass

Mounting Type: Glass To Glass

Series: Traditional

Shipping Limitations: None
