CRL GCB90SB Satin Brass 90 Traditional Glass-to-Glass Clamp
Images may not represent actual product and finish

CRL GCB90SB Satin Brass 90 Traditional Glass-to-Glass Clamp

Your Price: $39.75
Retail Price:$47.58
Your Savings:$7.83(16%)
Secure your frameless shower enclosure with the CRL GCB90SB Satin Brass 90 Degree Glass Clamp, designed for 5/16" to 1/2" thick glass.
Part Number : CRL_GCB90SB
Availability: 512 In Stock
CRL GCB90SB Satin Brass 90 Traditional Glass-to-Glass Clamp

C.R. Laurence GCB90SB Satin Brass 90 Degree Traditional Style Glass-to-Glass Clamp is the ideal solution for securing fixed panels of glass in modern frameless shower enclosures. Designed to accommodate glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), this clamp offers a sleek alternative to traditional U-Channel, enhancing the overall aesthetic with a seamless, all-glass appearance. Made from solid brass, the GCB90SB ensures durability while maintaining a sophisticated look. Its design not only facilitates the secure positioning of vertical fixed panels but also serves as a bracket for horizontal glass shelves, allowing for versatile usage within the enclosure. The clamp features a flush mounting capability, enabling adjacent panels to meet with minimal gaps, thereby enhancing the visual appeal. Each clamp comes complete with appropriate mounting screws and clear gaskets, ensuring a comprehensive installation experience. For additional convenience, extra gaskets can be ordered separately as needed. Note that a hole diameter of either 5/8" or 3/4" (16 or 19 mm) is required for each glass panel. Choose the C.R. Laurence GCB90SB for a reliable, stylish solution that meets the demands of contemporary glass installations while providing lasting quality.

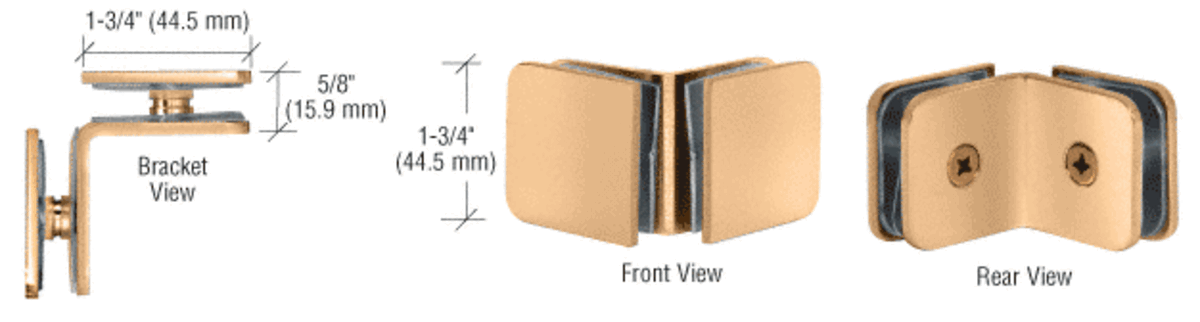

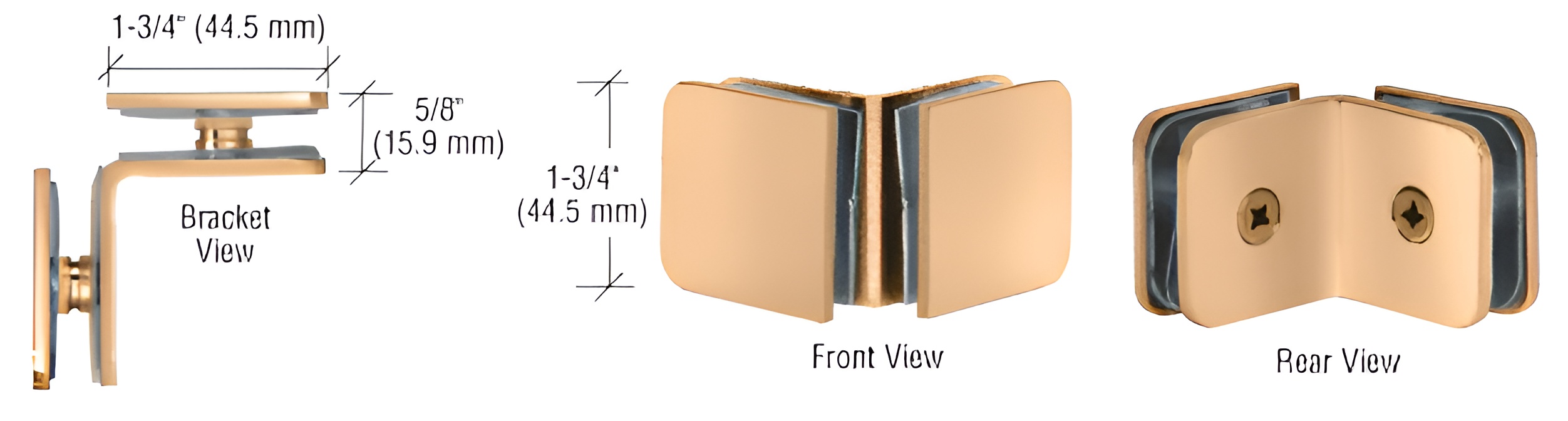

Satin Brass 90 Degree Traditional Style Glass-to-Glass Clamp

  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps
  • Use Monolithic Tempered Glass

A truly versatile CRL Standard 90 Degree Glass Clamp that has two uses: As a 90 Degree Clamp for vertical fixed panels in glass shower enclosures; as a bracket for horizontal glass shelves within the enclosure. Clamp design allows for flush mounting of shelf to wall, or for adjoining panels to meet with a minimal gap.


Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

SPECIFICATIONS:
Materials: Solid Brass or Stainless Steel
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) Each Panel
Includes: Gaskets and Wood Screw for wall mount application.
Replacement Hardware: CRL P612 for Replacement Screws
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Brass

Glass To Glass Angle: 90

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Material: Brass

Mounting Type: Glass To Glass

Series: Traditional

Shipping Limitations: None
