Images may not represent actual product and finish

CRL GCB91CH Polished Chrome 90 Traditional Oversized Glass Clamp

Your Price: $39.75

Retail Price:$47.58

Your Savings:$7.83(16%)

Secure your frameless shower enclosure with the CRL GCB91CH Polished Chrome Oversized Glass Clamp, designed for 5/16" to 1/2" thick glass.

Part Number : CRL_GCB91CH

Availability: 356 In Stock

Quantity

Description

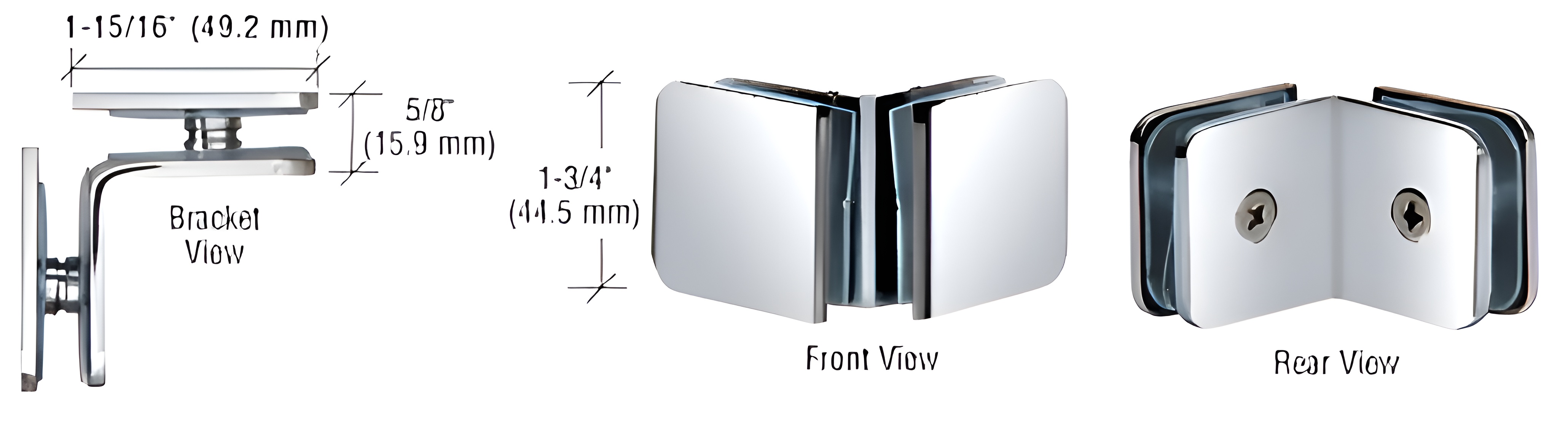

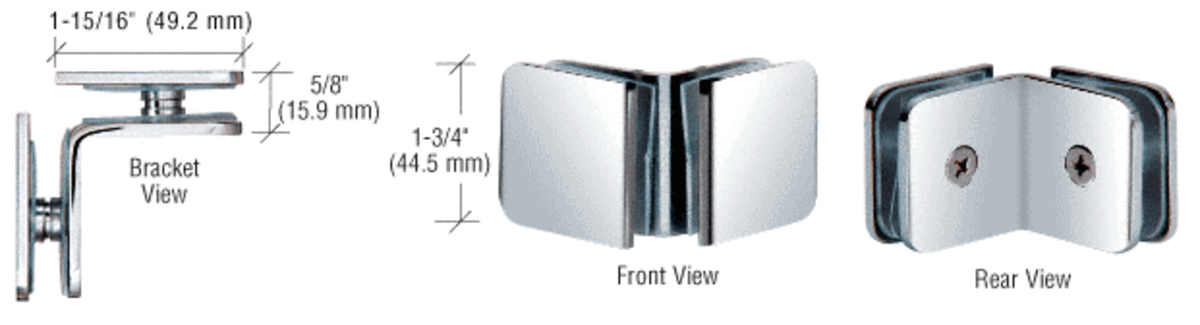

CRL GCB91CH Polished Chrome 90 Traditional Oversized Glass Clamp

C.R. Laurence GCB91CH Polished Chrome 90 Degree Traditional Style Oversized Glass Clamp is the perfect solution for securing fixed panels of glass in frameless shower enclosures. Designed to accommodate glass thicknesses from 5/16" to 1/2" (8 to 12 mm), these clamps are crafted from solid brass, ensuring durability and a sleek, polished finish that enhances any modern bathroom aesthetic. What sets the GCB91CH apart is its ability to create an 'all-glass' look, offering a stylish alternative to traditional U-Channels. This design feature not only contributes to a contemporary appearance but also provides structural integrity for your glass installations. Each clamp requires a hole drilling measurement of 1-1/2 times the glass thickness from the edge to the closest edge of the hole, making it ideal for 1/2" (12 mm) thick glass. Included with the clamp are appropriate mounting screws and a set of clear gaskets, ensuring a complete installation solution right out of the box. For those using 5/16" (8 mm) glass, an additional set of gaskets is available separately (Cat. No. UCG77). Elevate your shower enclosure design with the reliability and elegance of the C.R. Laurence GCB91CH Glass Clamp.

Polished Chrome 90 Degree Traditional Style Oversized Glass Clamp

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Use Monolithic Tempered Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps

CRL Oversized 90 Degree Glass Clamps perform the same function as our Standard 90 Degree Glass Clamps. They are especially suggested for use in 1/2" (12 mm) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness (from the edge of the glass to the closest edge of the hole) is required.

Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)each panel.
Includes: Gaskets and Wood Screw for wall mount application.

NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Chrome

Glass To Glass Angle: 90

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Material: Brass

Mounting Type: Glass To Glass

Series: Traditional

Shipping Limitations: None
