CRL GCB91MBL Matte Black 90 Traditional Oversized Glass Clamp

Your Price: $45.43

Retail Price:$54.38

Your Savings:$8.95(16%)

Secure your frameless shower enclosure with the CRL Matte Black 90° Oversized Glass Clamp, crafted from solid brass for durability.

Part Number : CRL_GCB91MBL

Availability: 212 In Stock

Quantity

Description

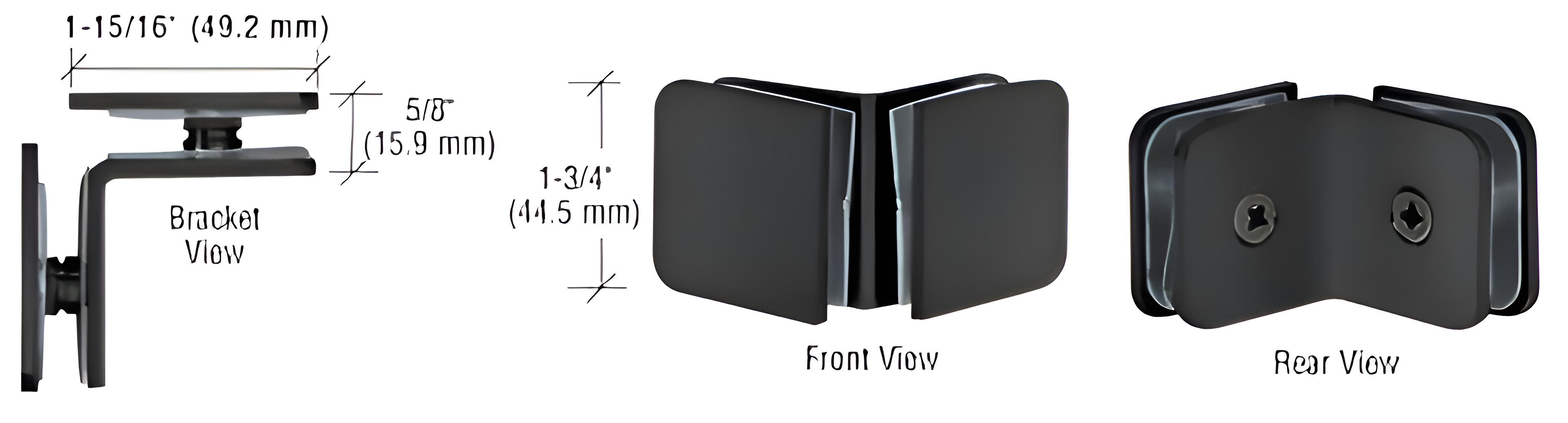

CRL GCB91MBL Matte Black 90 Traditional Oversized Glass Clamp

C.R. Laurence GCB91MBL Matte Black 90 Degree Traditional Style Oversized Glass Clamp is an exceptional solution for securing fixed glass panels in frameless shower enclosures. Designed for use with monolithic tempered glass, this clamp accommodates glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), ensuring a reliable and stylish installation. Constructed from solid brass, the GCB91MBL combines durability with a sleek matte black finish, offering a refined alternative to traditional U-Channels. Its design emphasizes a clean, 'all-glass' aesthetic while effectively holding glass panels at a 90-degree angle. The clamp requires specific glass fabrication to ensure a proper fit, with a hole diameter of either 5/8" or 3/4" (16 or 19 mm) needed for each panel. Included with the clamp are mounting screws and a set of clear gaskets, with additional gaskets available for those using 5/16" (8 mm) glass. This product not only enhances the overall look of your installation but also meets the high standards expected by building professionals and discerning homeowners alike. Elevate your shower design with the elegance and functionality of C.R. Laurence's oversized glass clamps.

Matte Black 90 Degree Traditional Style Oversized Glass Clamp

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Use Monolithic Tempered Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication Required to Accommodate Clamps

CRL Oversized 90 Degree Glass Clamps perform the same function as our Standard 90 Degree Glass Clamps. They are especially suggested for use in 1/2" (12 mm) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness (from the edge of the glass to the closest edge of the hole) is required.

Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)each panel.
Includes: Gaskets and Wood Screw for wall mount application.
NOTE: An additional set of gaskets is required for5/16" (8 mm) glass (Cat. No. UCG77).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Matte Black

Glass To Glass Angle: 90

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Material: Brass

Mounting Type: Glass To Glass

Series: Traditional

Shipping Limitations: None
