CRL GDH5CH Chrome Standard Mount Glass Door HingeC.R. Laurence GDH5CH Chrome Standard Mount Glass Door Hinge offers a blend of precision engineering and sleek design, perfect for any cabinetry project. Specifically crafted for 3/16" (5 mm) and 1/4" (6 mm) monolithic tempered glass, this hinge ensures durability while accommodating door widths up to 18" (457 mm) and heights of 39" (991 mm). With a robust weight capacity of 16 lbs (7 kg) per pair, it’s suitable for a variety of applications. The hinges feature a polished chrome finish, enhancing the aesthetic appeal of your cabinets while seamlessly adapting to diverse decor styles. The installation process is straightforward, utilizing drilled holes in the cabinet frame, with set screws securely holding the glass in place. For added convenience, nylon bushings are included to facilitate a smooth operation. To achieve a precise fit, the GDH5CH hinge works best with the Cat. No. GDH5J1G Drill Jig and Cat. No. GDH5WDFAB drill bit, making installation quick and efficient. Ideal for stereo cabinets and display cases, this hinge not only meets functional requirements but also elevates the overall look of your cabinetry. Choose C.R. Laurence GDH5CH for reliable quality and stylish design in your next project.
Chrome Standard Mount Glass Door Hinge
- Precision Machined and Quality Finished Hinges Designed for 3/16" (5 mm) Glass
- Designed for 3/16" and 1/4" (5 and 6 mm) Glass
- Use Monolithic Tempered Glass
- Weight: 0.2

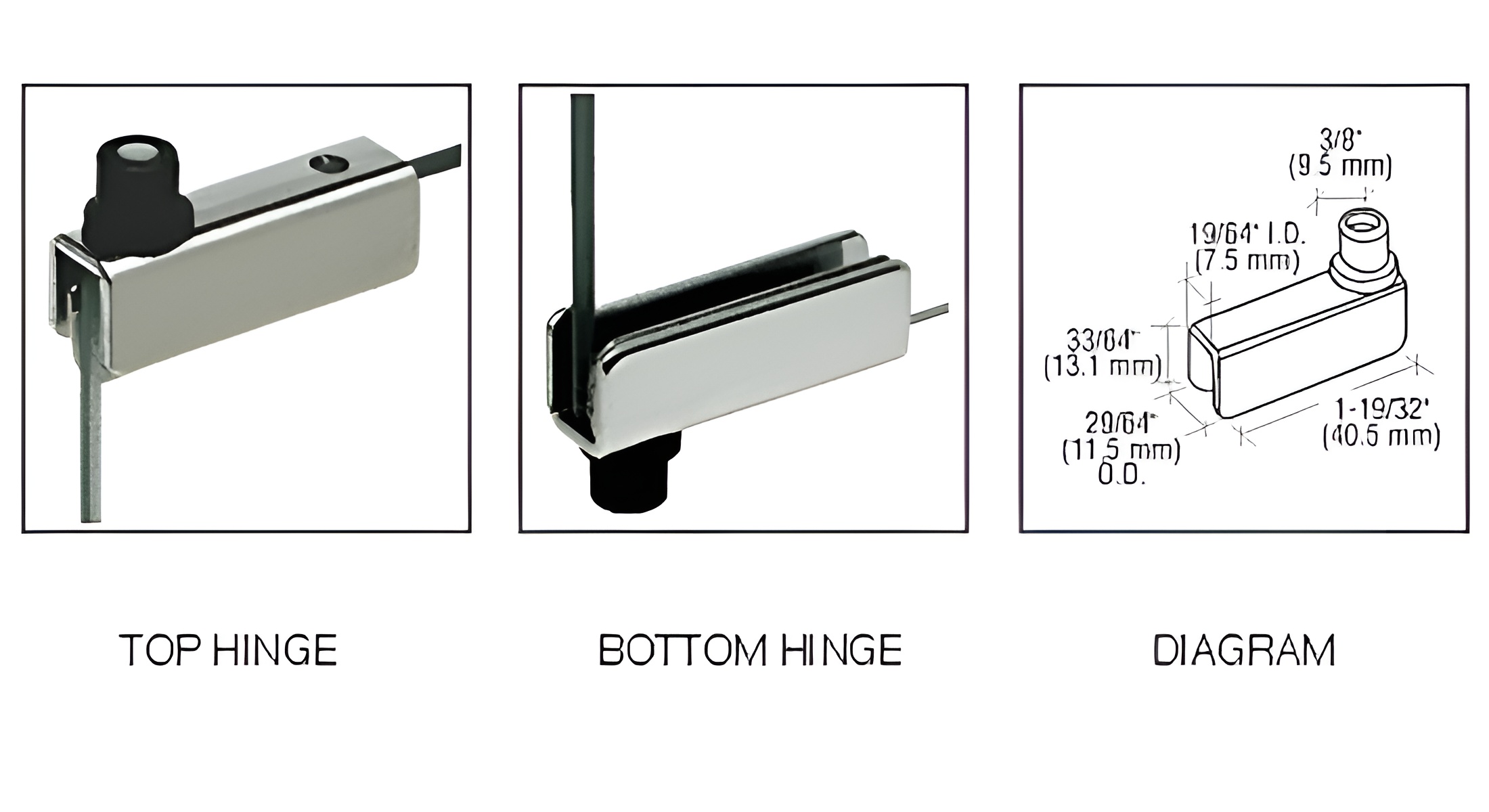

CRL Standard Mount Hinges are mounted in drilled holes in cabinet frame. Set screws secure glass in hinge openings. Includes nylon bushings for drilled holes. Use Cat. No. GDH5J1G Drill Jig with Cat. No. GDH5WDFAB drill bit for quick, easy installation. Hinges are made of steel and the maximum weight per pair is 16 pounds (7 kg).
CRL's Stereo Cabinet Hardware is specifically designed for the fabrication of cabinets used for electronic components, china or collectibles. All of the hardware is manufactured with precision to ensure a precise fit and years of service. The Hinges and Accessories are available in brass, chrome, and black which adapts to all wood finishes as well as other room décor. Our full line of Stereo Cabinet Accessories will enable you to coordinate the style and color for all your hardware requirements. All components are designed to work with 3/16" (5 mm) tempered glass.
SPECIFICATIONS:
Glass Height: Opening Minus 3/8" (10 mm)
Single Door Width: Opening Minus 3/32" (2.4 mm)
Double Door Width: Opening Divided by 2, Minus 5/64" (2 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H.
Product Warning:
The dimensions are merely guidelines that should be satisfactory in most cases. For a very tight fit you should calculate your own dimensions.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Chrome
Glazing Thickness: 3/16 in. To 1/4 in. (5 mm To 6 mm)
Height: 33/64 in. (13.1 mm)
Material: Brass
Maximum Door Width: 18 in. (457.2 mm)
Pack Quantity: 2
Shipping Limitations: None
Weight Capacity: 16 lbs. (7.3 kg)
Width: 1-19/32 in. (40.5 mm)
