CRL GDH96CH Chrome Surface Mount Glass Door Hinge

Your Price: $22.71

Retail Price:$27.18

Your Savings:$4.47(16%)

CRL GDH96CH Chrome Surface Mount Hinge for 3/16" and 1/4" glass, precision machined for durability and style.

Part Number : CRL_GDH96CH

Availability: 118 In Stock

Quantity

Description

CRL GDH96CH Chrome Surface Mount Glass Door Hinge

C.R. Laurence GDH96CH Chrome Surface Mount Glass Door Hinge offers a blend of precision engineering and elegant design for glass installations. This hinge is expertly crafted for use with 3/16" (5 mm) and 1/4" (6 mm) monolithic tempered glass, making it an ideal choice for various cabinet applications, particularly in stereo cabinets for electronics and collectibles. Constructed from durable brass, the GDH96CH hinge is finished in polished chrome, ensuring it complements a range of wood finishes and décor styles. The hinge is designed for ease of installation, featuring a standard mount that requires drilled holes in the cabinet frame. Set screws secure the glass firmly in place, and nylon bushings are included for smooth operation. Each hinge supports a maximum weight capacity of 16 lbs. (7.3 kg), making it suitable for lightweight doors. With dimensions that allow for maximum door widths of 18" (457 mm) and heights of up to 39" (991 mm), this hinge provides flexibility for various design needs. For added convenience, use the Cat. No. GDH5J1G drill jig and Cat. No. GDH5WDFAB drill bit for quick installation. Elevate your cabinet hardware with the reliability and style of the C.R. Laurence GDH96CH hinge.

Chrome Surface Mount Glass Door Hinge

Precision Machined and Quality Finished Hinge Designed for 3/16" (5 mm) Glass
Designed for 3/16" and 1/4" (5 and 6 mm) Glass
Use Monolithic Tempered Glass

CRL Standard Mount Hinges are mounted in drilled holes in cabinet frame. Set screws secure glass in hinge openings. Includes nylon bushings for drilled holes. Use Cat. No. GDH5J1G Drill Jig with Cat. No. GDH5WDFAB drill bit for quick, easy installation. Hinges are made of steel and the maximum weight per pair is 16 lbs. (7 kg).

CRL's Stereo Cabinet Hardware is specifically designed for the fabrication of cabinets used for electronic components, china or collectibles. All of the hardware is manufactured with precision to ensure a precise fit and years of service. The Hinges and Accessories are available in brass, chrome, and black which adapts to all wood finishes as well as other room décor. Our full line of Stereo Cabinet Accessories will enable you to coordinate the style and color for all your hardware requirements. All components are designed to work with 3/16" (5 mm) tempered glass.

SPECIFICATIONS:
Glass Height: Opening Plus 5/16" (7.9 mm)
Single Door Width: Opening Plus 3/4" (19 mm)
Double Door Width: Opening Divided by 2, Plus 11/32" (8.7 mm). Maximum Door Dimensions 18" (457 mm) W x 39" (991 mm) H.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Chrome

Glazing Thickness: 3/16 in. To 1/4 in. (5 mm To 6 mm)

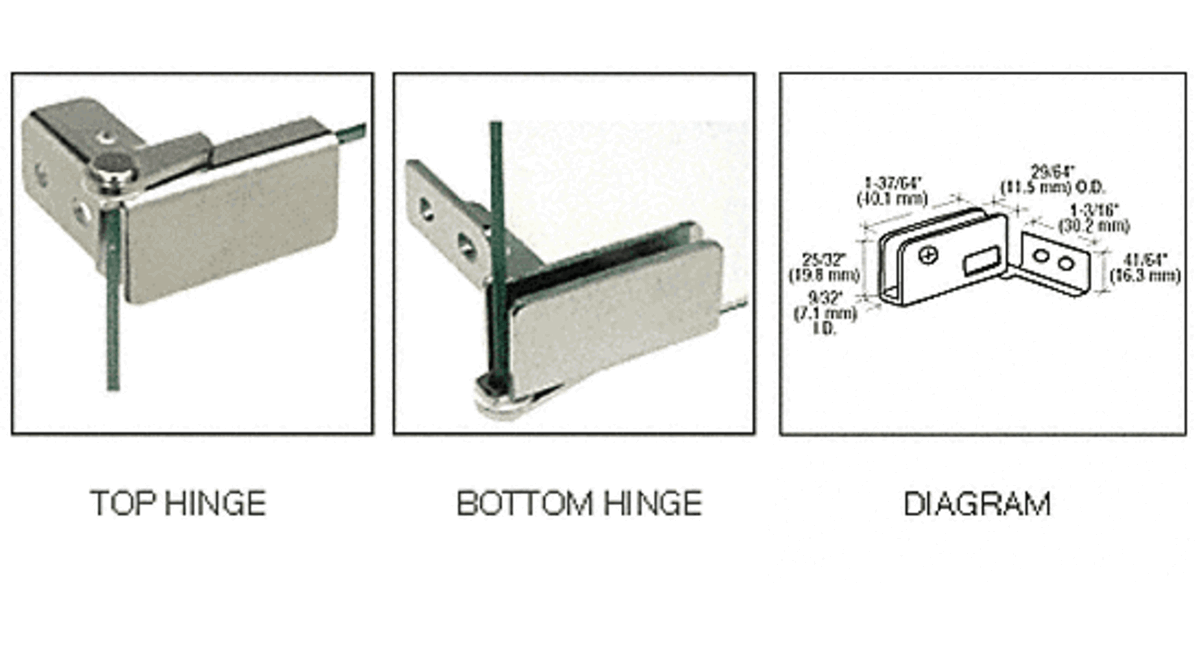

Height: 25/32 in. (19.8 mm)

Material: Brass

Maximum Door Width: 18 in. (457.2 mm)

Pack Quantity: 2

Shipping Limitations: None

Weight Capacity: 16 lbs. (7.3 kg)

Width: 1-37/64 in. (40.1 mm)
