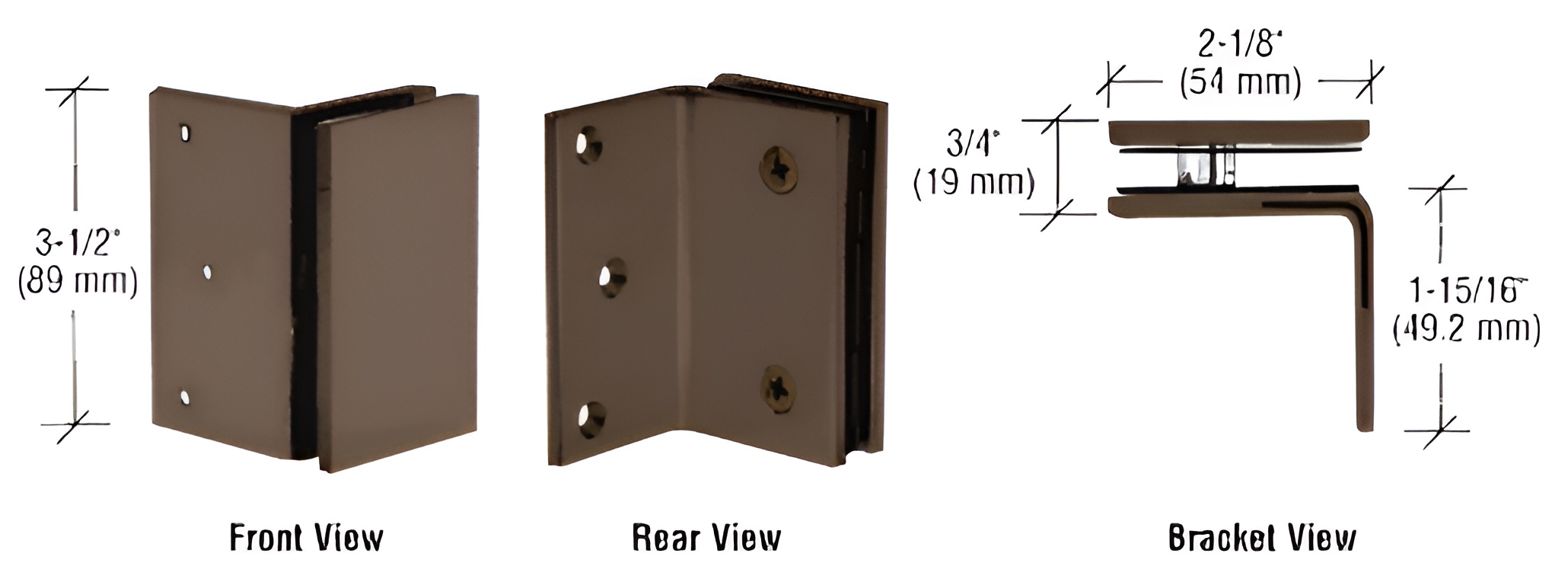

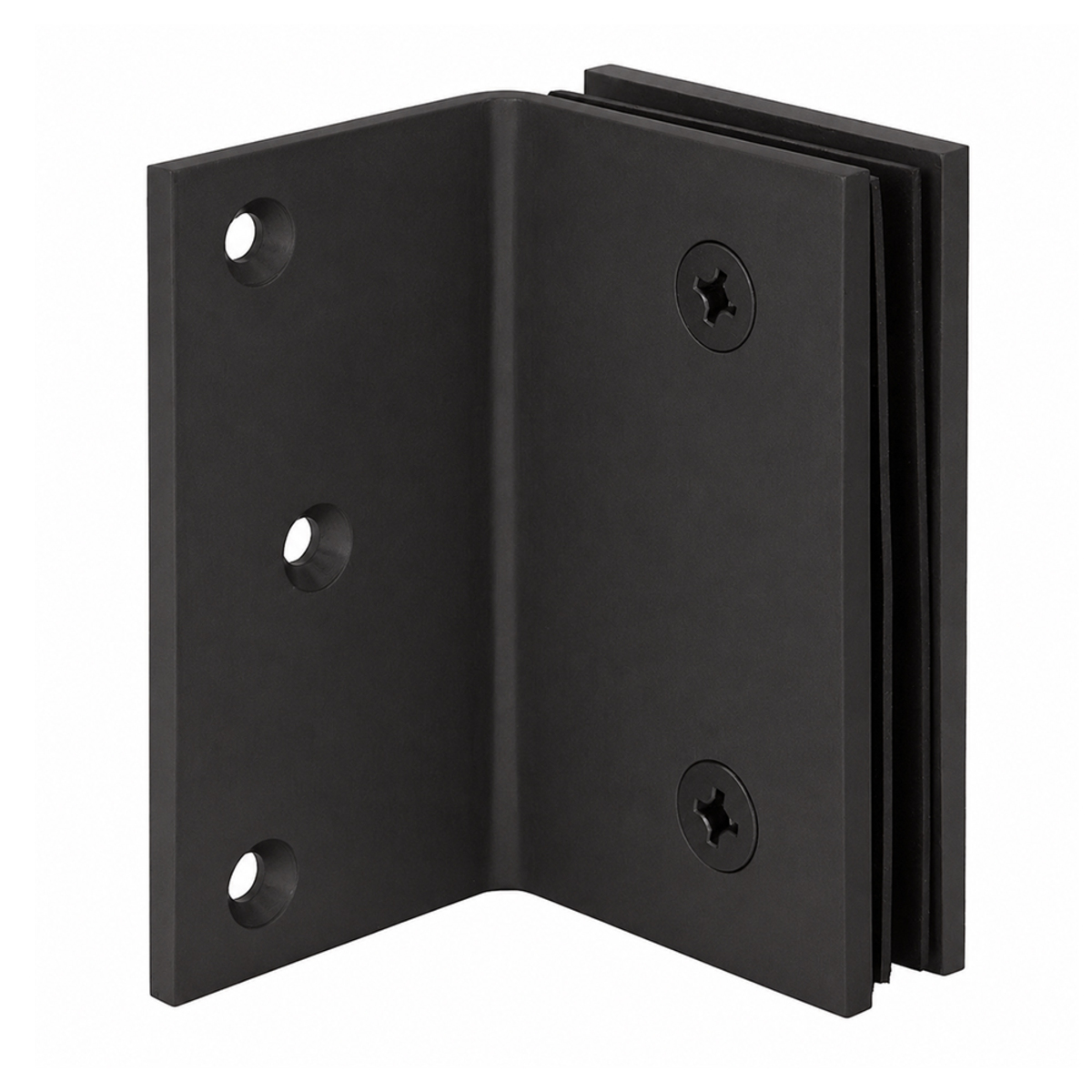

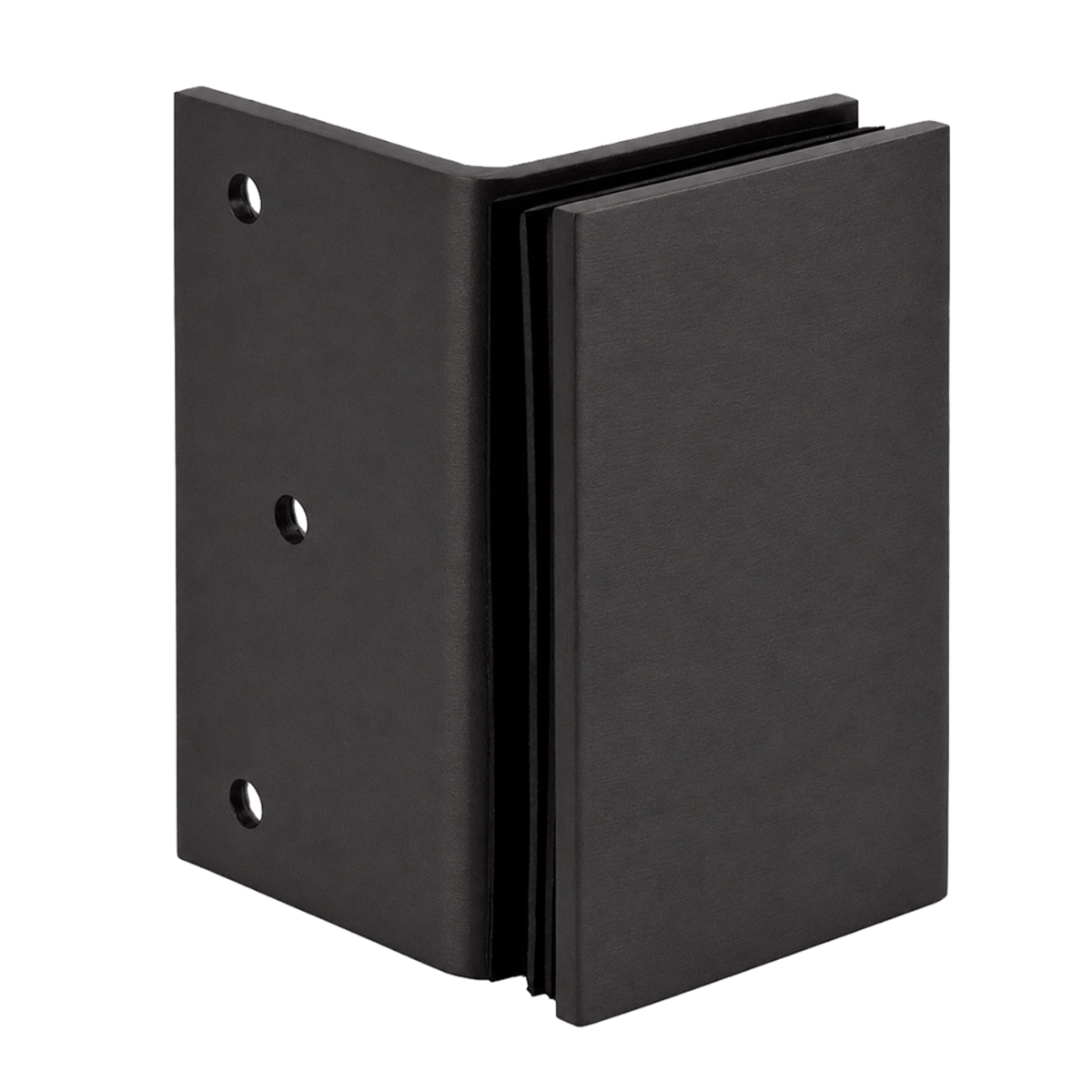

CRL GE90S0RB Geneva Series Oil Rubbed Bronze Wall Mount Bracket

C.R. Laurence GE90S0RB Oil Rubbed Bronze Geneva Series Wall Mount Bracket offers a sophisticated solution for securing glass panels with style and durability. Designed to accommodate 5/16" to 1/2" (8 to 12 mm) thick glass, this wall mount bracket is constructed from solid brass, ensuring a robust and reliable installation. The bracket features square corners and edges, seamlessly matching the configuration of the popular Geneva, Concord, Vienna, Cardiff, and Senior Cardiff Series hinges. Ideal for both glass wall applications and as a horizontal shelf bracket, the Geneva Series Wall Mount Bracket enhances any space with its oil-rubbed bronze finish, merging functionality with an elegant aesthetic. Each bracket includes gaskets and mounting screws, with a requirement for two 3/4" (19 mm) holes per panel, simplifying the installation process. For added convenience, replacement hardware is available through CRL P612 for those needing replacement screws. Custom finishes and templates can also be requested to meet specific design needs. Elevate your architectural projects with the C.R. Laurence Geneva Series Wall Mount Bracket-where quality meets contemporary design.

Oil Rubbed Bronze Geneva Series Wall Mount Bracket

• Square Corner Clamps Match Configuration of Our Geneva, Concord, Vienna, Cardiff, and Senior Cardiff Series Hinges
• For 5/16" to 1/2" (8 to 12 mm) Glass
• Solid Brass
• Styles to Match Our Most Popular Clamps

CRL Geneva Series Wall Mount Brackets are designed to work with 5/16" to 1/2" (8 to 12 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.
