CRL GEN045CH Chrome Geneva 045 Series Glass-to-Glass Hinge

CRL GEN045CH Chrome Geneva 045 Series Glass-to-Glass Hinge

C.R. Laurence GEN045CH Chrome Geneva 045 Series 135 Glass-to-Glass Hinge is engineered for both elegance and functionality, accommodating 5/16" (8 mm) to 1/2" (12 mm) tempered glass. This hinge features a self-centering mechanism with a reversible 5-degree pivot pin, allowing for precise adjustments to suit your installation needs. The standard model is factory set for a 0º closing position, while a 5º pre-set option is available for a tighter closure into the shower interior. Crafted from solid brass with stainless steel moving parts, the hinge ensures durability and longevity. It can support door weights of up to 80 lbs (36 kg) with two hinges or up to 120 lbs (54 kg) when using three, making it suitable for a variety of glass door applications. The hinge swings 90º in and out, providing easy access while maintaining a sleek aesthetic. Available in polished chrome and several other beautiful finishes, the GEN045CH hinge combines style with performance, making it an ideal choice for residential and hotel shower installations. With a three-year warranty and compatible installation hardware, this hinge offers peace of mind alongside its exceptional design.

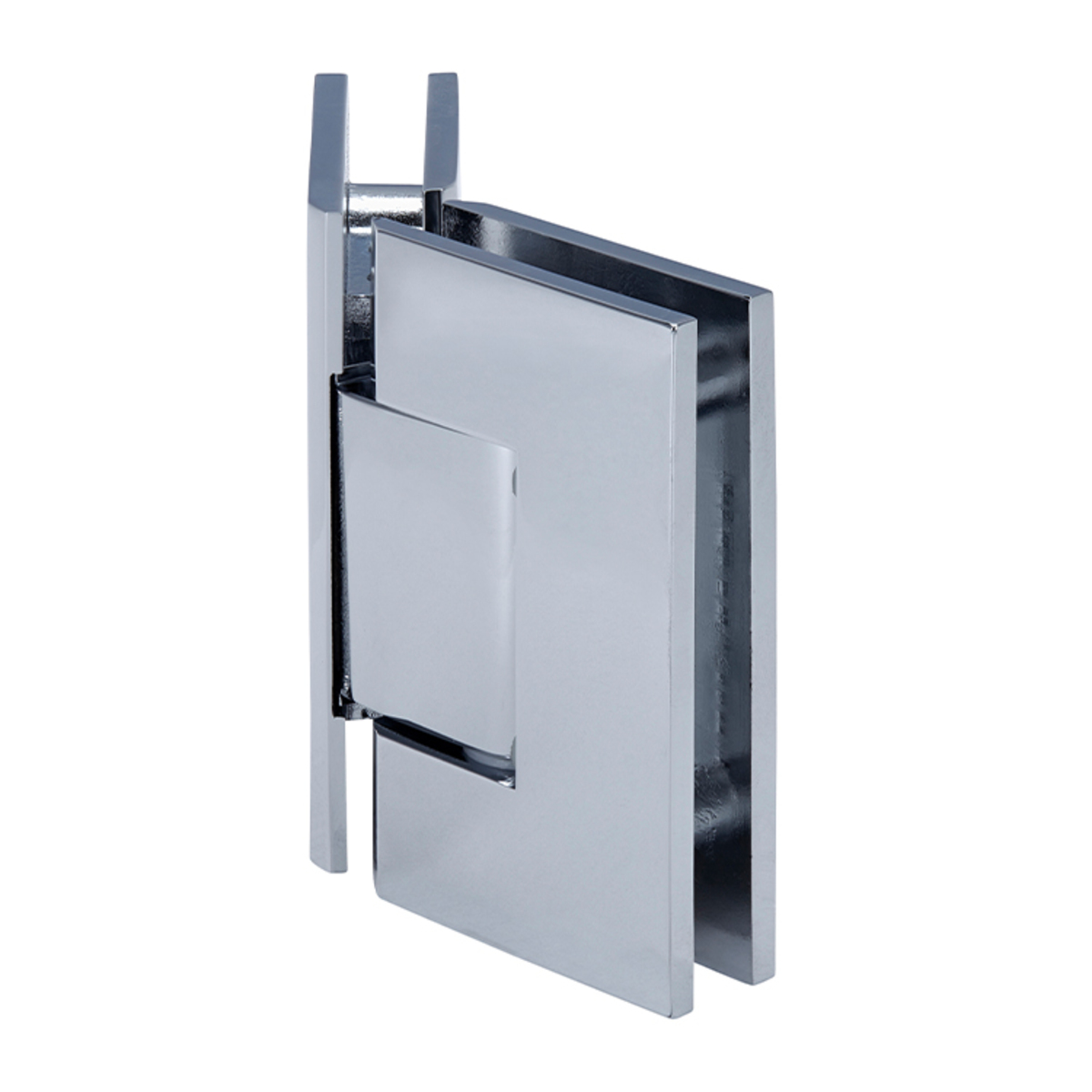

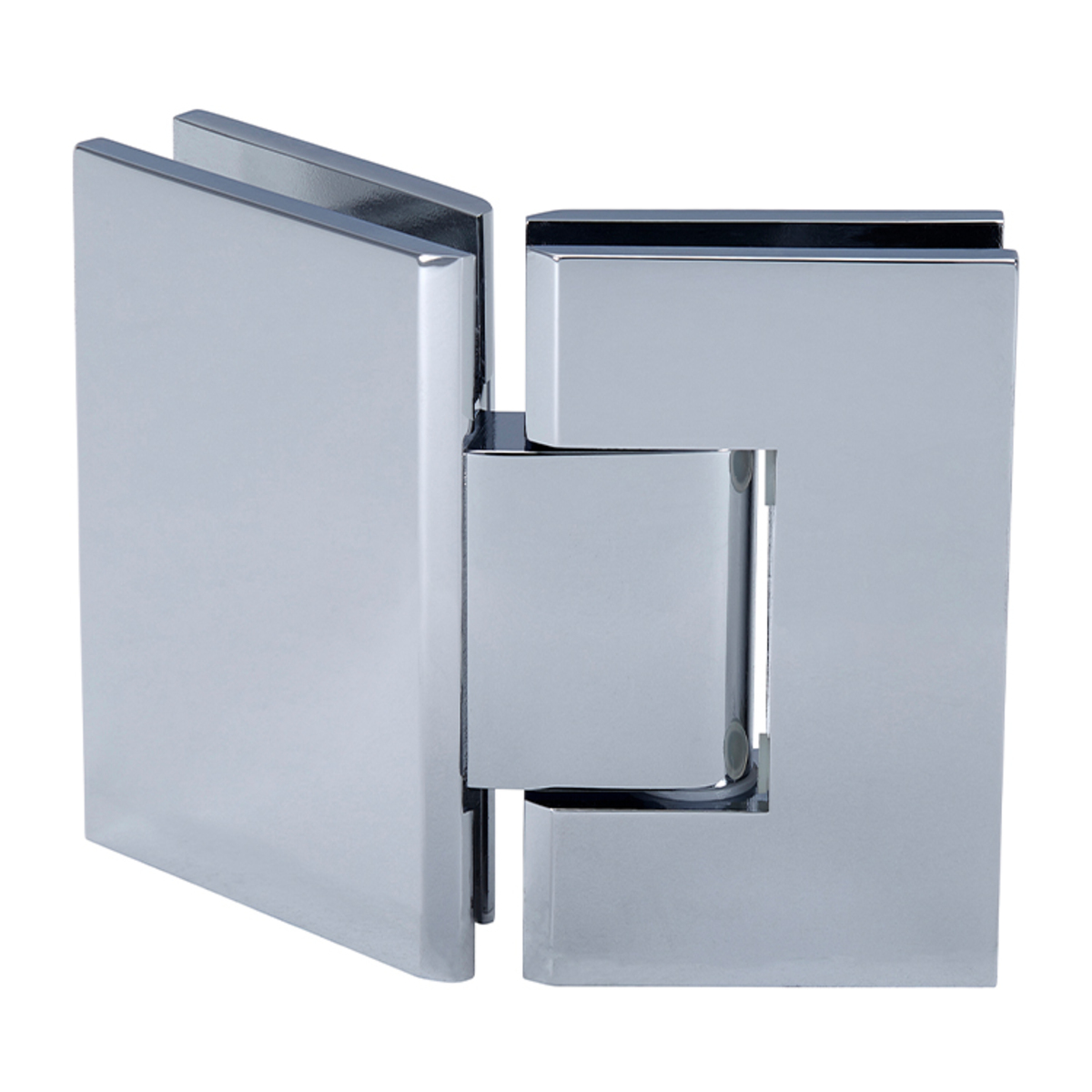

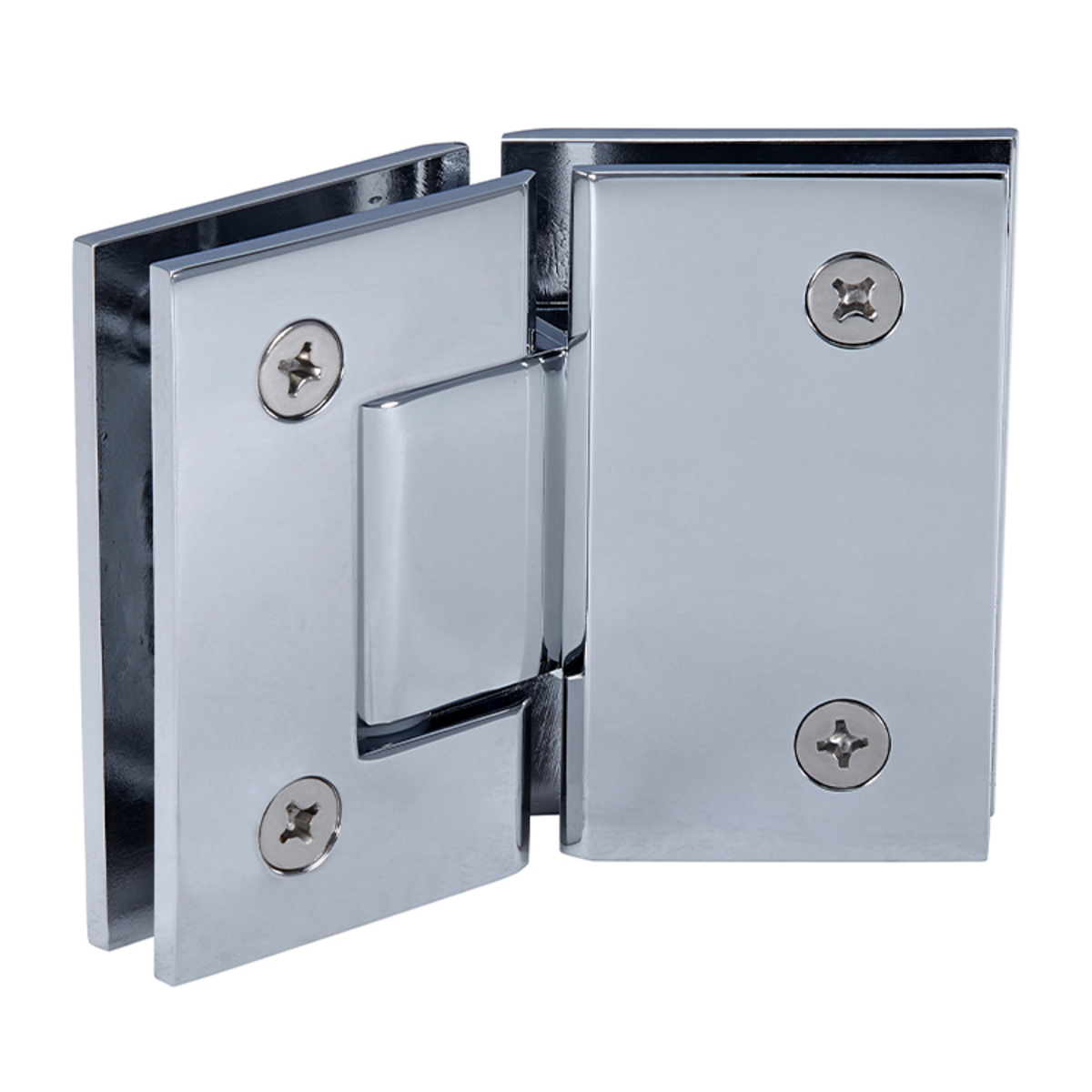

Chrome Geneva 045 Series 135 Glass-to-Glass Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• 135º Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.


Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90º. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5º Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

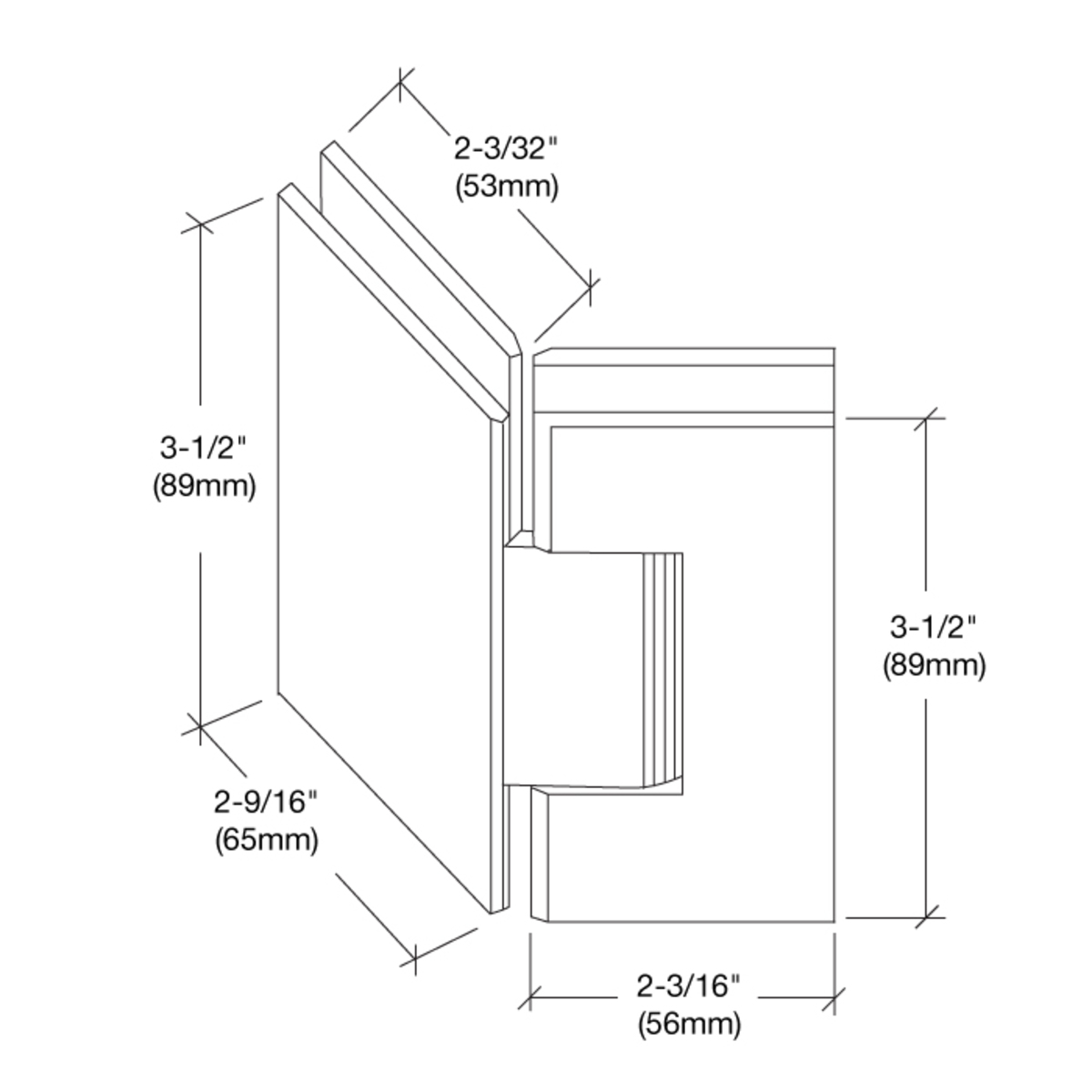

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0º closing position, or 5º Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90º in and 90º Out
Closing Type: Self-Centering when within 15º of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

Custom finishes are available on request. Contact Technical Sales Shower Door Division.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
