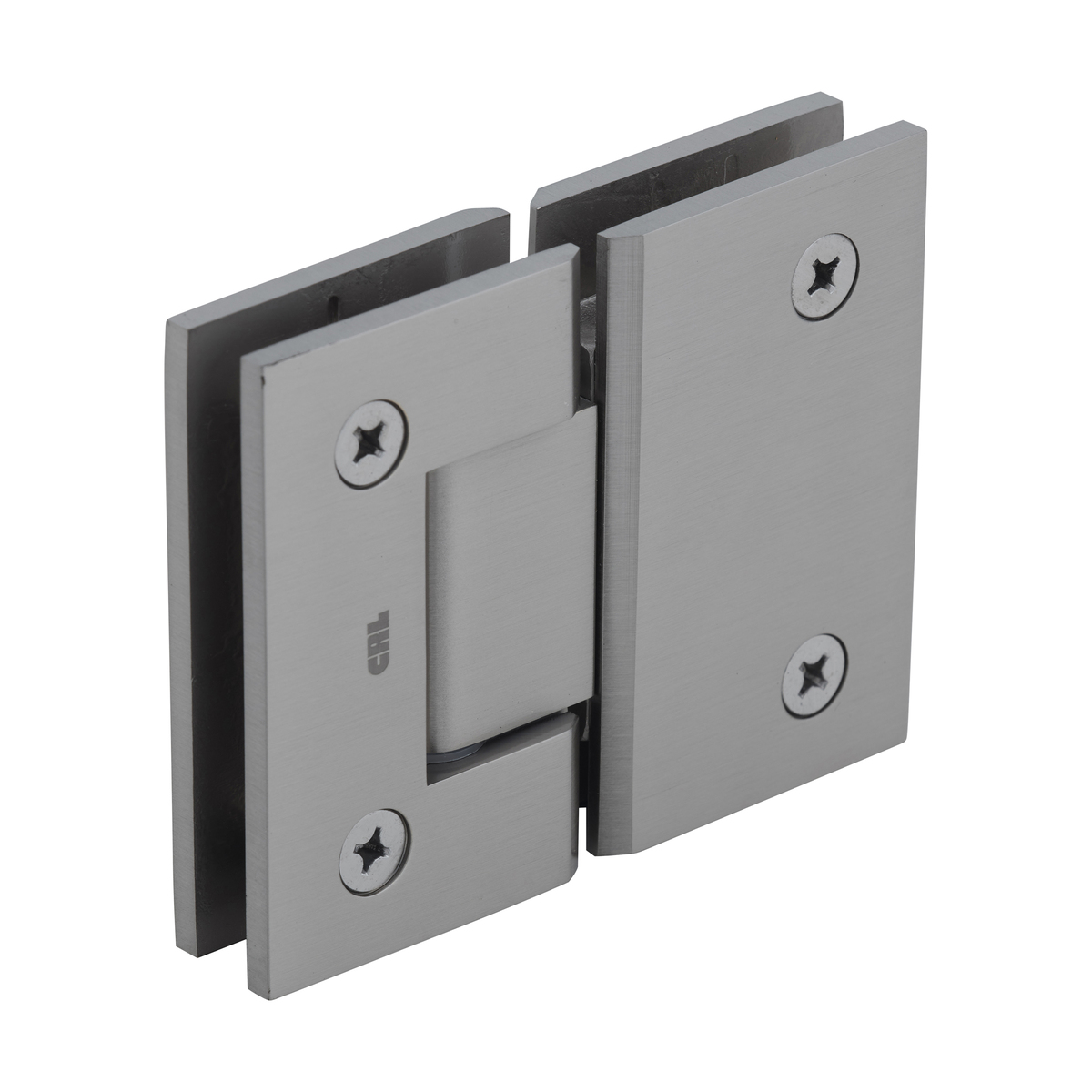

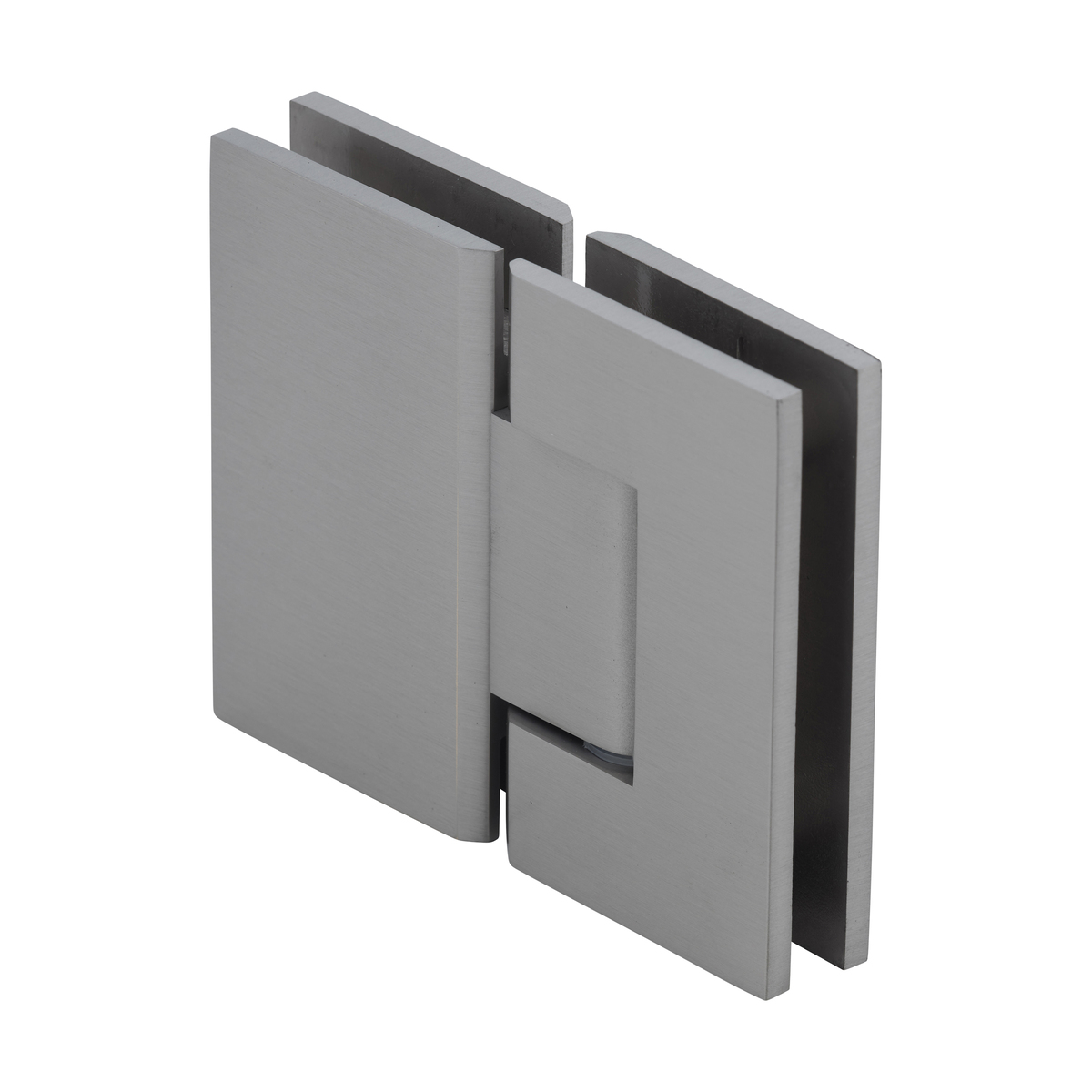

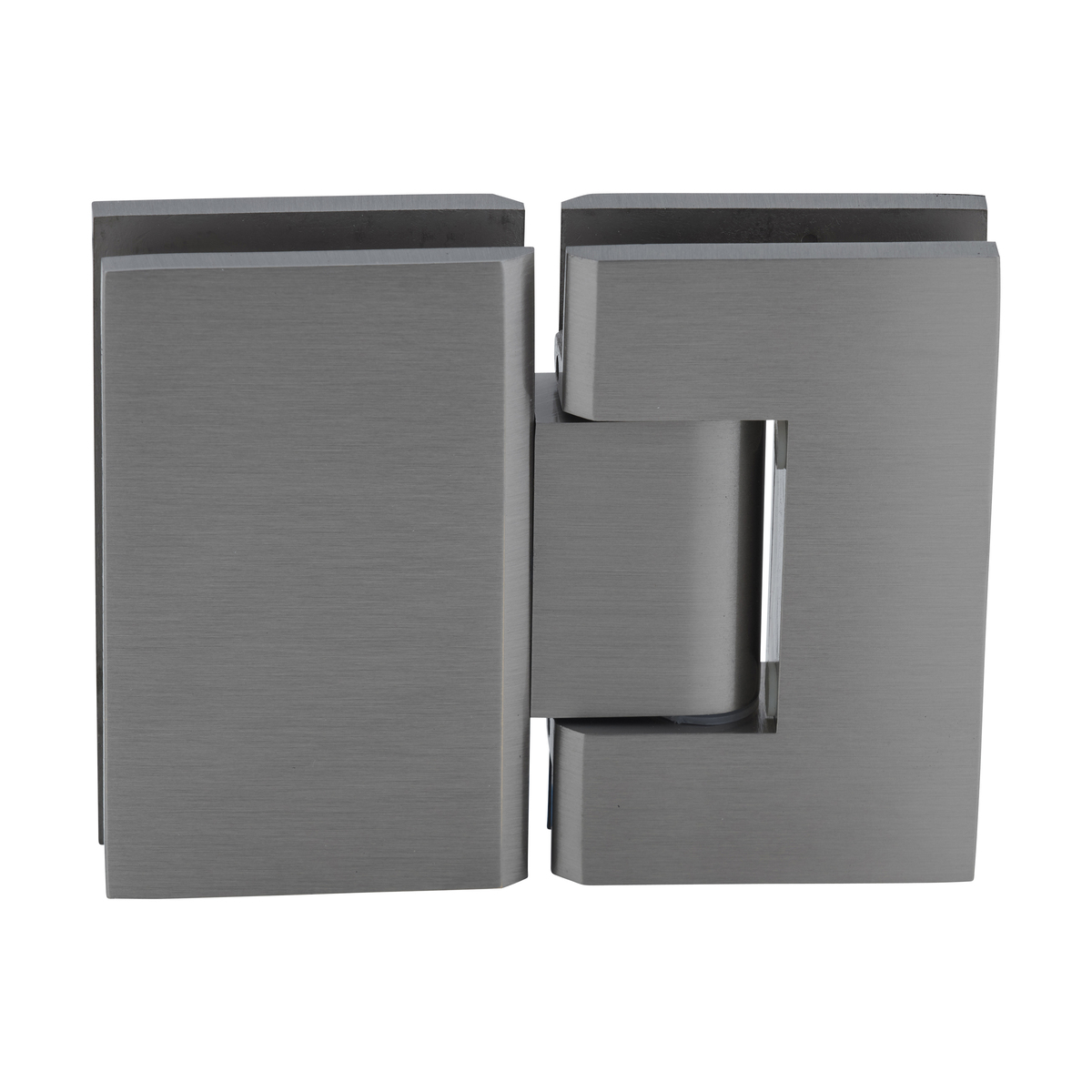

CRL GEN180BN Brushed Nickel Geneva 180 Glass-to-Glass Standard Hinge

CRL GEN180BN Brushed Nickel Geneva 180 Glass-to-Glass Standard Hinge

C.R. Laurence GEN180BN Brushed Nickel Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge offers a perfect blend of elegance and functionality for your shower door installations. This robust hinge is designed to accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass, supporting door weights of up to 80 lbs. (36 kg) with two hinges and 120 lbs. (54 kg) with three hinges. Crafted from solid brass, the GEN180BN features a self-centering mechanism with a reversible 5° pivot pin, allowing for a seamless closing experience. The hinge swings a full 90 degrees in and out, making it ideal for tight spaces. With a standard model set for a 0-degree closing position, you also have the option of a 5-degree pre-set model for a tighter closure into the shower interior. Available in a beautiful brushed nickel finish, this hinge complements any modern bathroom design. It comes with a three-year warranty, reflecting C.R. Laurence's commitment to quality. For custom installations, optional custom pivot pins are available to accommodate unique angles. Enhance your glass door systems with the reliability and style of the C.R. Laurence Geneva Series Hinge, backed by expert support from the Technical Sales Shower Door Department.

Brushed Nickel Geneva 180 Series 180 Degree Glass-to-Glass Standard Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5° Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.


Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

Custom finishes are available on request. Contact Technical Sales Shower Door Division.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
