C.R. Laurence GEN337MBL Matte Black Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge offers exceptional versatility for modern shower door installations. Designed to accommodate monolithic tempered glass ranging from 5/16" to 1/2" thick, this hinge can support impressive door weights of up to 120 lbs. (54 kg) when using three hinges, and up to 80 lbs. (36 kg) with two hinges, making it ideal for various applications. One of the standout features of the Geneva hinge is its adjustable design, allowing adjustments to any angle up to 90 degrees without the need to remove the door. Simply loosen the Allen set screws, adjust to your desired angle, and re-tighten to achieve a self-centering closure within 15 degrees of the closed position. This flexibility ensures a snug fit against the jamb, enhancing both functionality and aesthetics. Constructed from solid brass with a sleek matte black finish, this hinge also comes with a three-year warranty, providing peace of mind. The full back plate design ensures a secure and stable installation, while the hinge's square edge profile adds a contemporary touch to any bathroom. For custom finishes or additional technical details, the CRL Technical Sales Shower Door Department is available to assist.

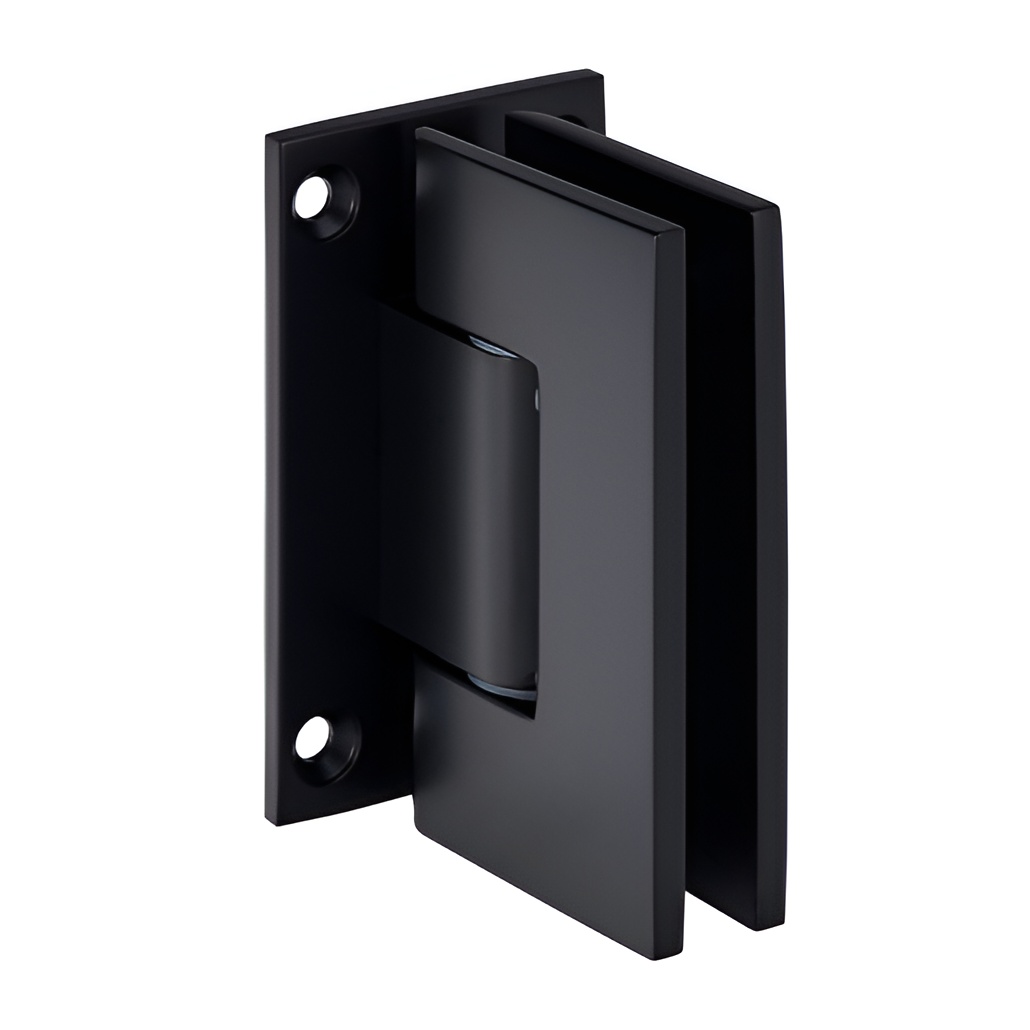

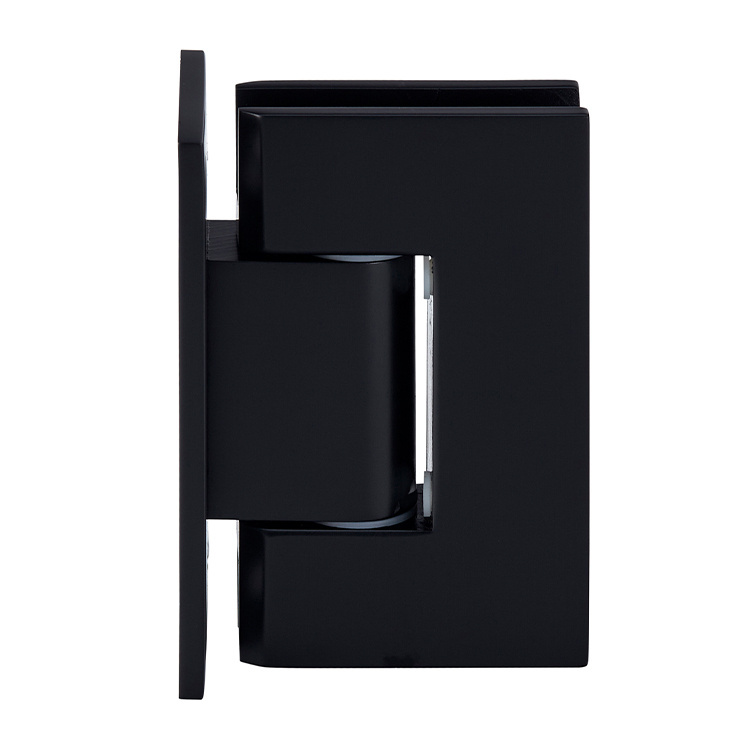

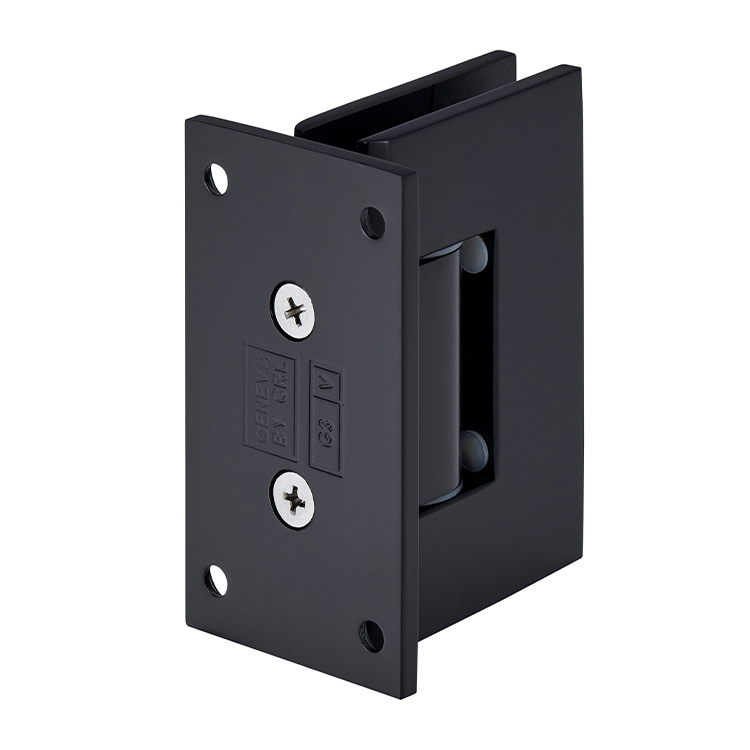

Matte Black Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• Three Year Warranty
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only(using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.


Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Resources

• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• Frameless Shower Door Quote Request Form

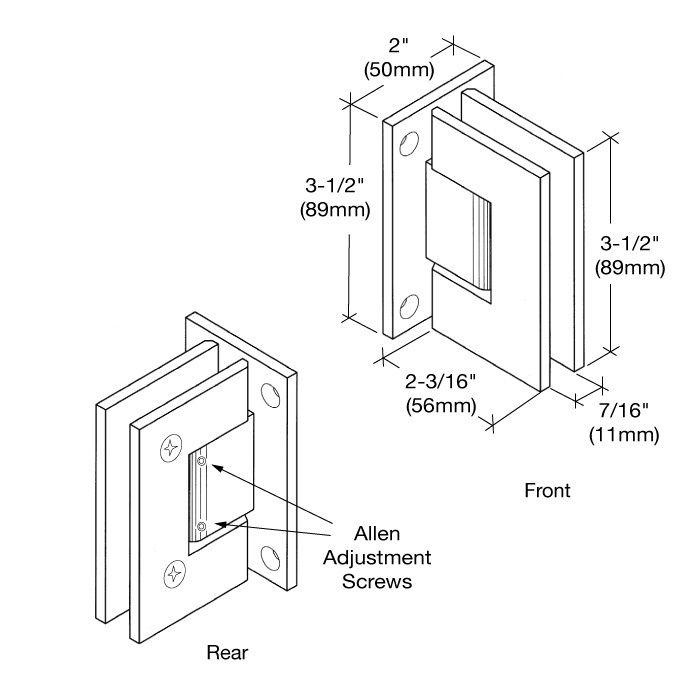

• GEN337 Detailed CAD Drawings.dwg
