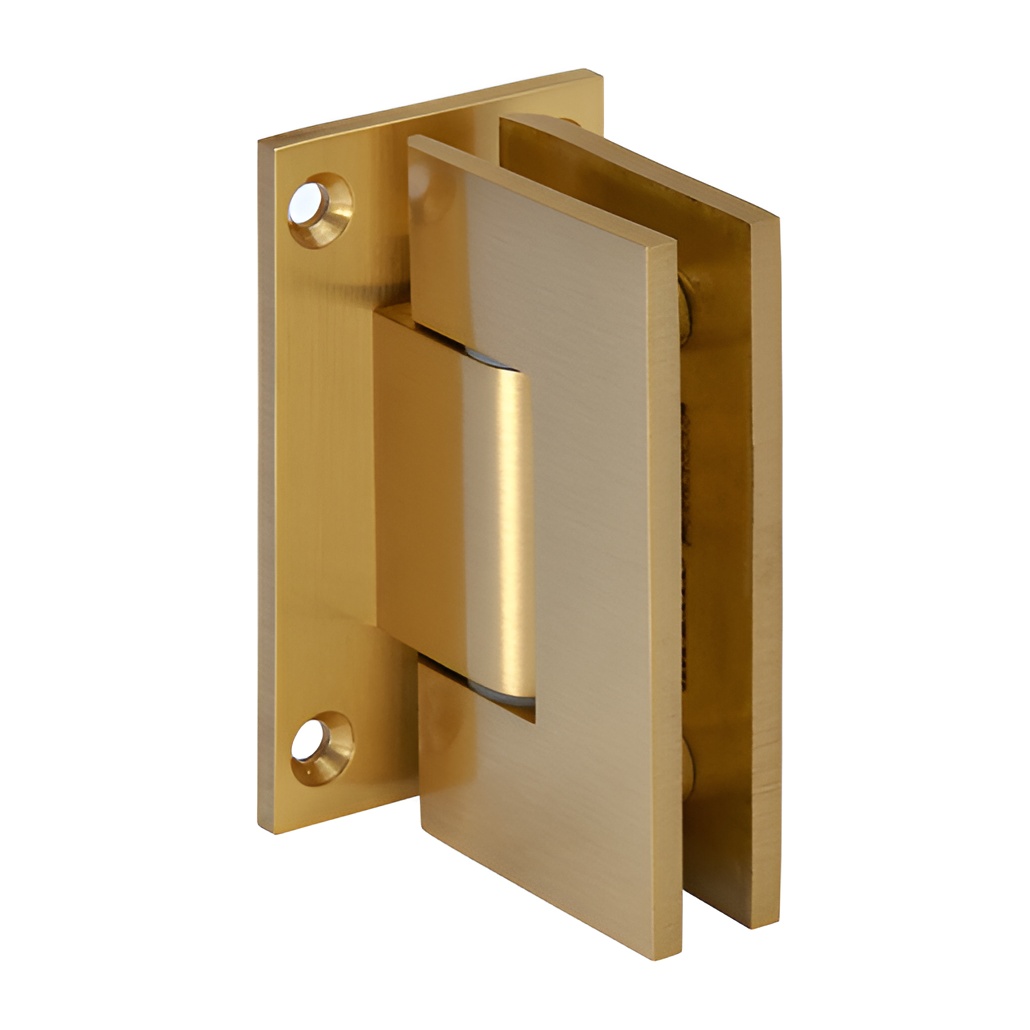

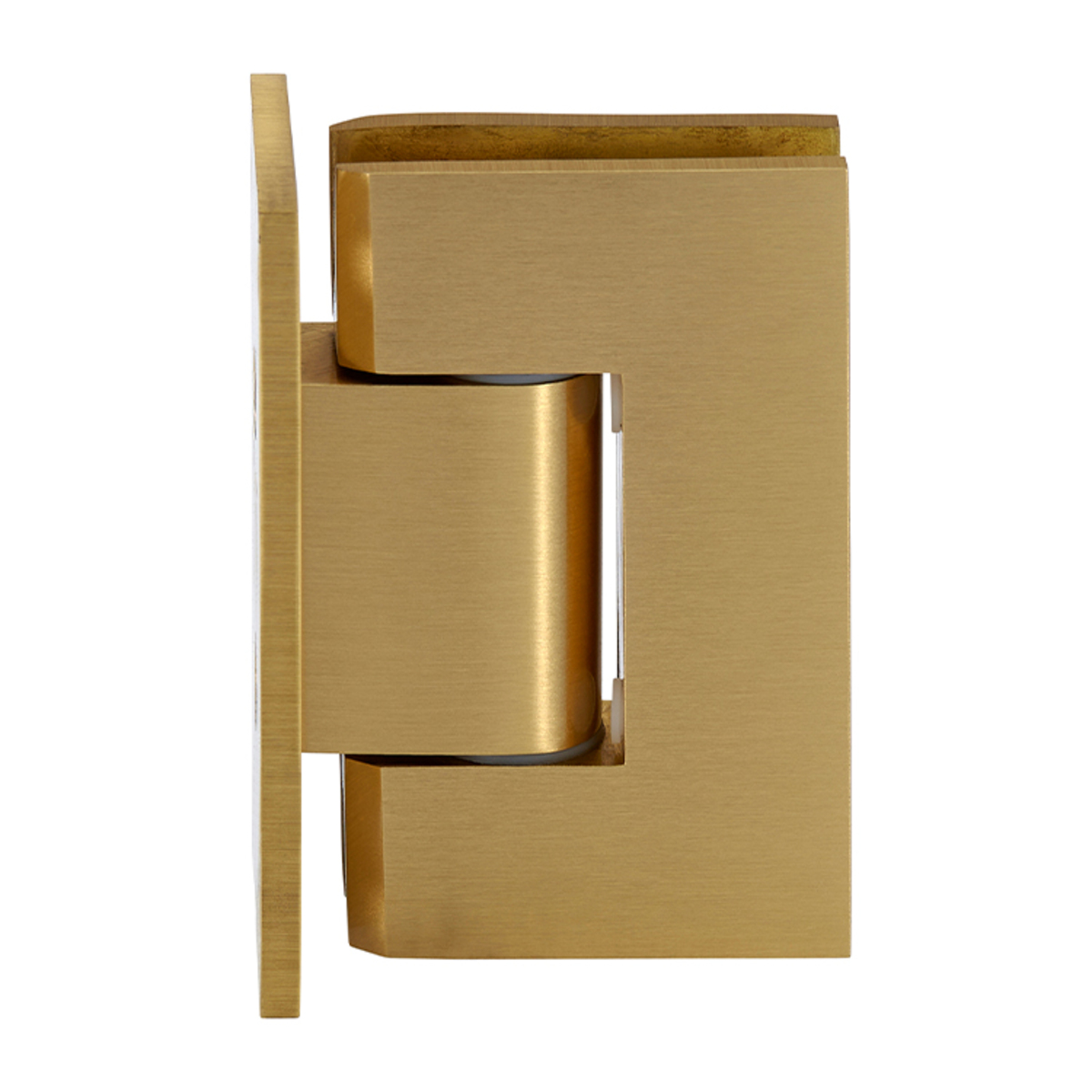

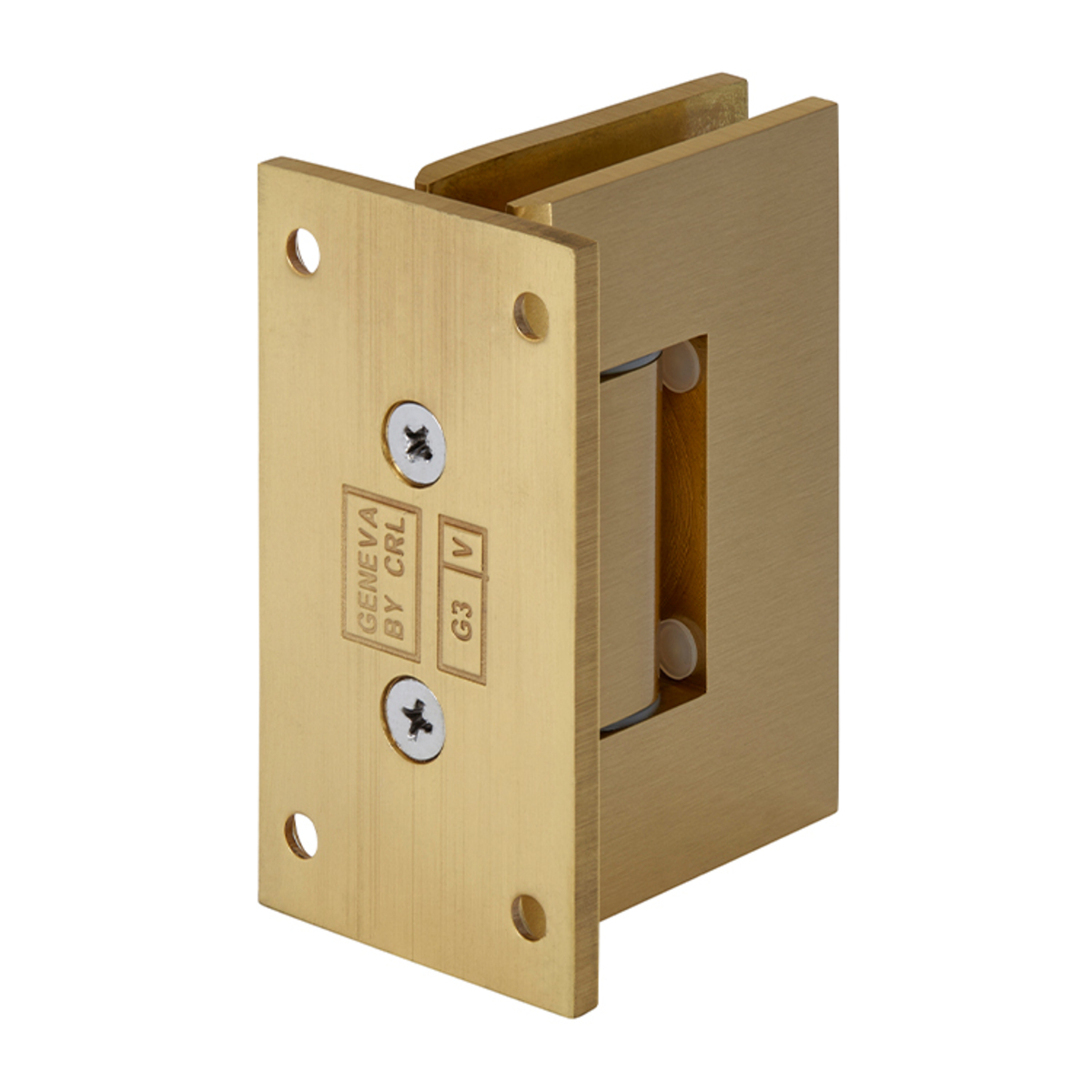

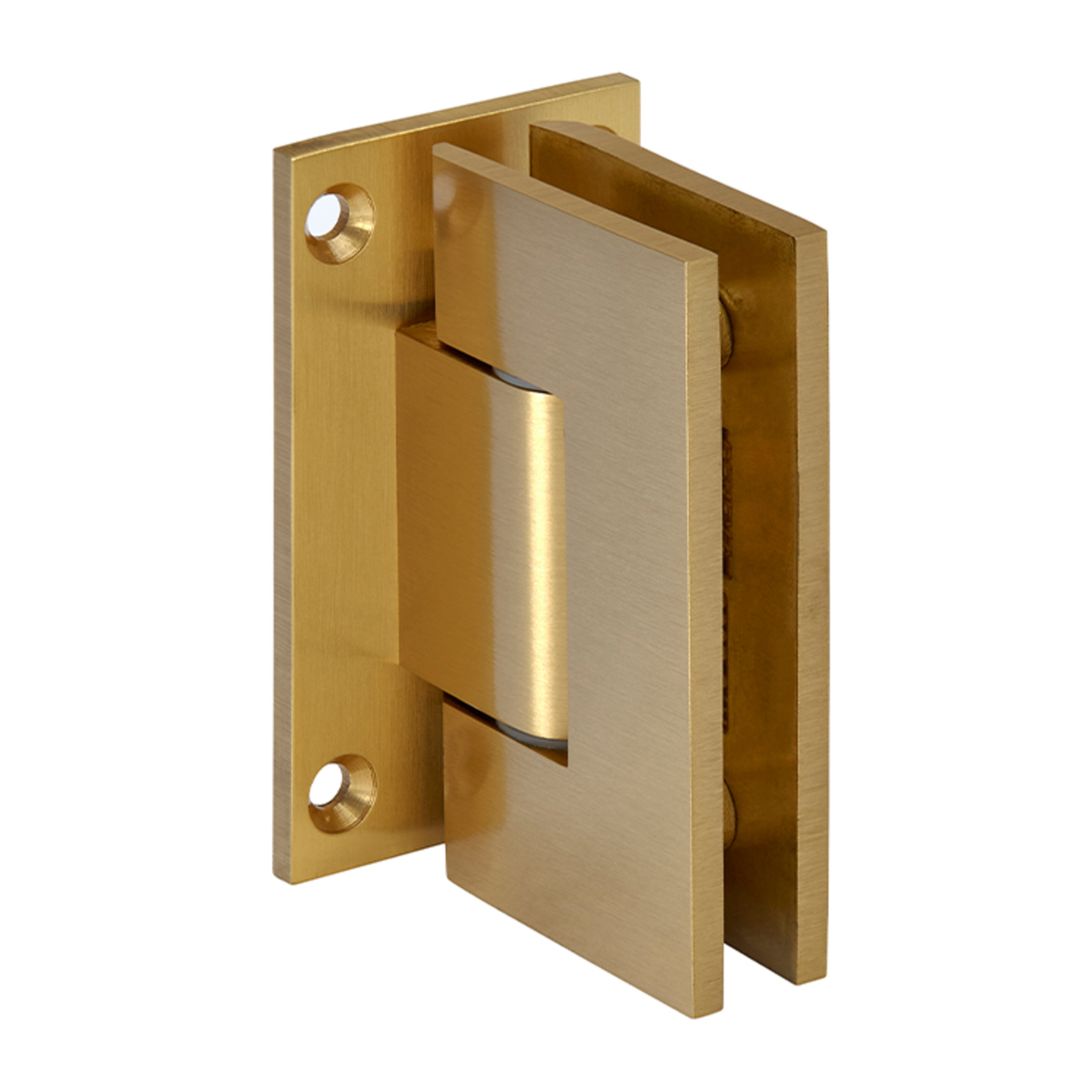

CRL GEN337SB Satin Brass Geneva 337 Series Adjustable Wall Mount Hinge with Back Plate

CRL GEN337SB Satin Brass Geneva 337 Series Adjustable Wall Mount Hinge with Back Plate

C.R. Laurence GEN337SB Satin Brass Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge offers a sophisticated solution for your glass door installations. Designed for use with monolithic tempered glass, this hinge allows for seamless adjustments to any angle up to 90 degrees without the need to remove the door. Once installed, simply loosen the Allen set screws to achieve your desired closed position, and the self-centering feature will keep your door aligned perfectly. Constructed from solid brass and available in several beautiful finishes, the GEN337SB not only delivers functionality but also adds an elegant touch to any space. It accommodates glass thicknesses ranging from 5/16" to 1/2" (8 mm to 12 mm) and supports impressive door weights-up to 80 lbs. (36 kg) with two hinges and 120 lbs. (54 kg) with three hinges. This hinge swings 90 degrees both inward and outward, providing flexibility in your design. Included are necessary gaskets and screws for easy installation, while the option for custom finishes ensures a perfect match for your project. Backed by a three-year warranty, the C.R. Laurence GEN337SB hinge is an ideal choice for residential or hotel shower applications, combining strength, style, and versatility.

Satin Brass Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• Three Year Warranty
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.


Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Brass Finish Advisory:
