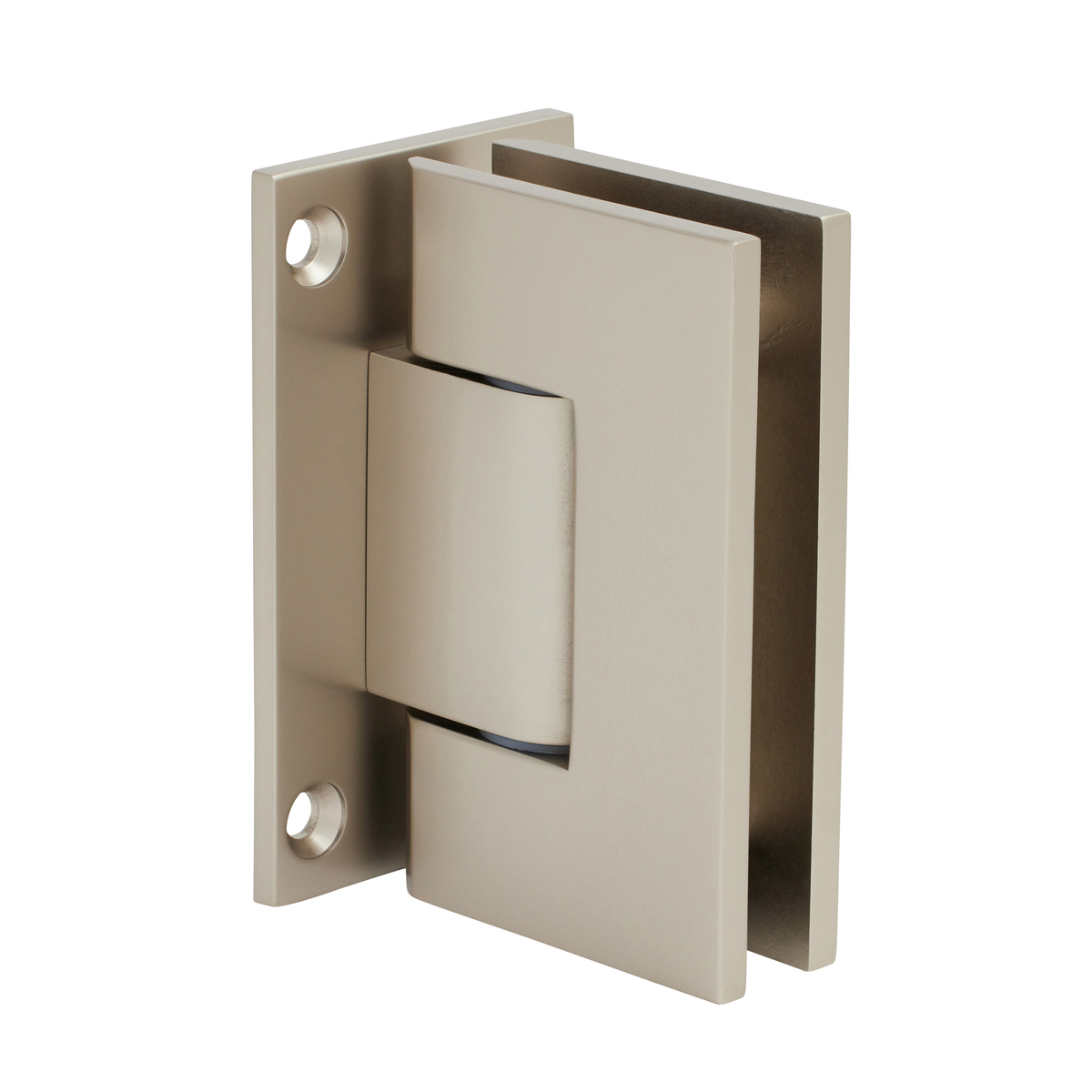

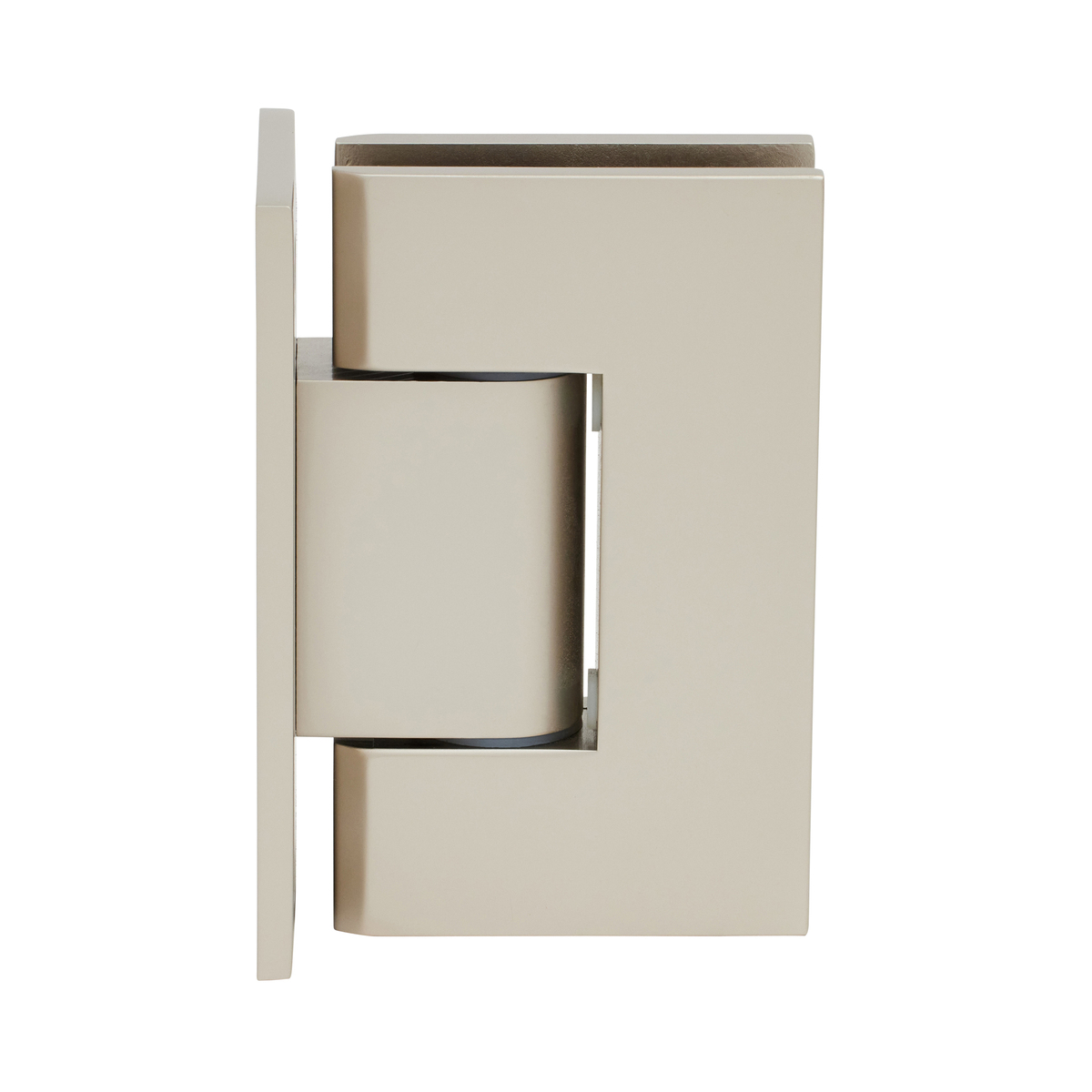

CRL GEN337SN Satin Nickel Geneva 337 Series Adjustable Wall Mount Hinge with Back Plate

CRL GEN337SN Satin Nickel Geneva 337 Series Adjustable Wall Mount Hinge with Back Plate

C.R. Laurence GEN337SN Satin Nickel Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge offers unparalleled versatility and functionality for your shower door installations. Designed for use with monolithic tempered glass, this hinge allows for adjustment to any angle up to 90 degrees without removing the door, streamlining the installation process. Once your door is hung, simply loosen the Allen set screws to achieve the desired closed position, and the hinge will self-center within 15 degrees of that position. Crafted from solid brass, the GEN337SN hinge is available in a stunning satin nickel finish, enhancing both aesthetic appeal and durability. This hinge supports a maximum weight of 80 lbs. (36 kg) with two hinges and up to 120 lbs. (54 kg) with three hinges, accommodating door widths of 28 inches (711 mm) and 32 inches (813 mm) respectively. The hinge's self-centering feature ensures smooth operation while maintaining a snug fit against the door jamb. Included with your purchase are gaskets and screws, while additional dimensions for glass fabrication are provided. For those seeking custom finishes, options are available upon request. Elevate your glass installations with the reliability and style of C.R. Laurence's Geneva 337 Series hinge.

Satin Nickel Geneva 337 Series Adjustable Wall Mount Full Back Plate Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• Three Year Warranty
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

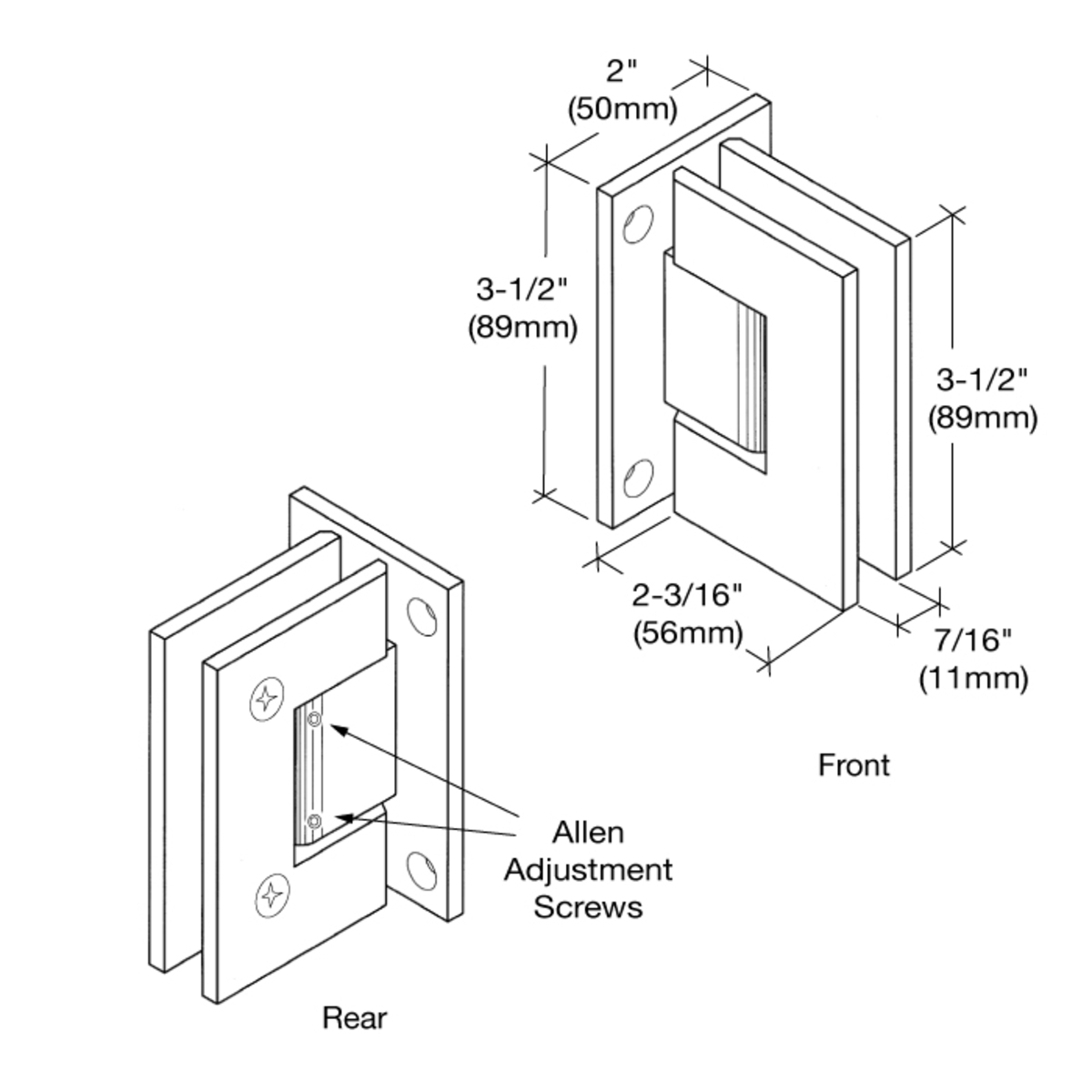

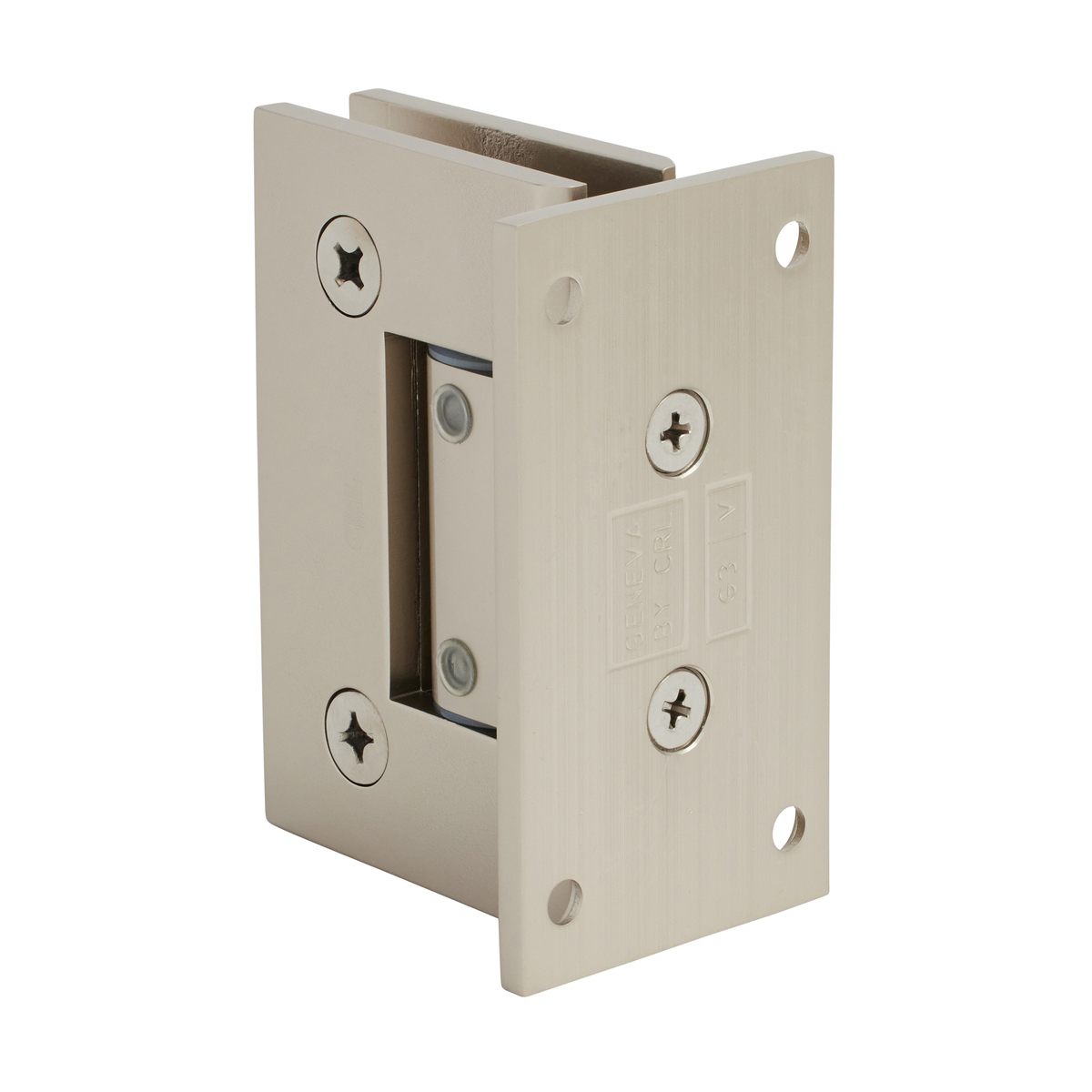

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.


Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
