CRL GEN344BN Brushed Nickel Adjustable Wall Mount Offset Hinge Back Plate

CRL GEN344BN Brushed Nickel Adjustable Wall Mount Offset Hinge Back Plate

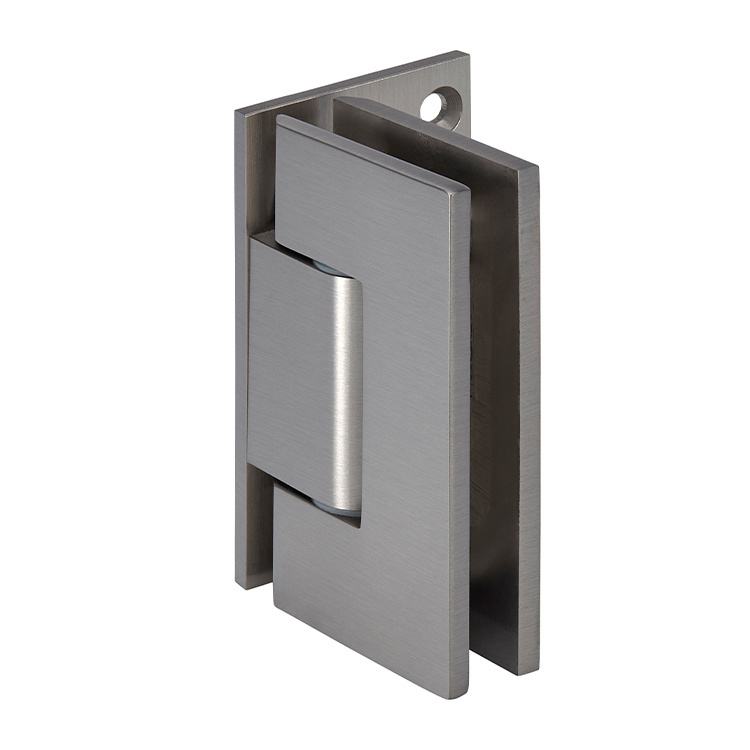

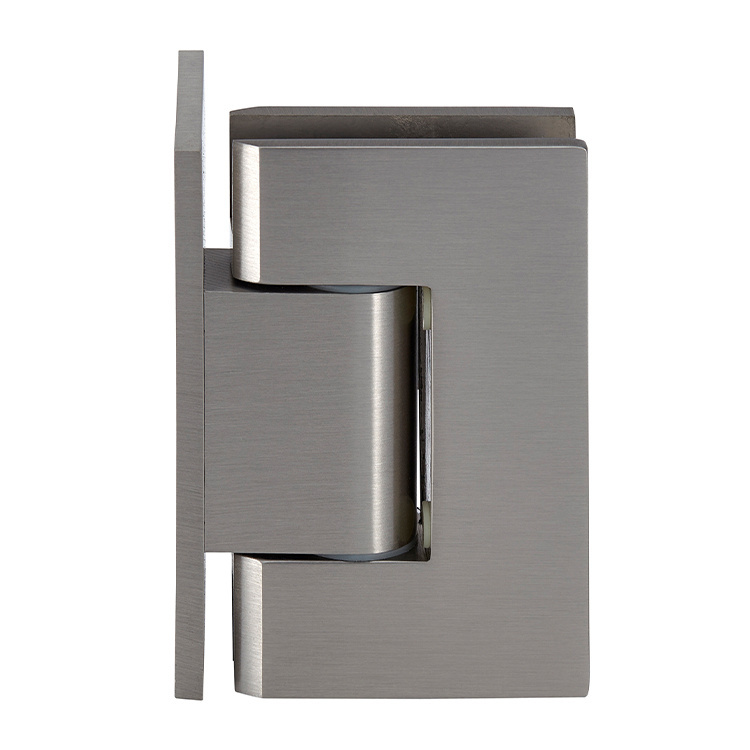

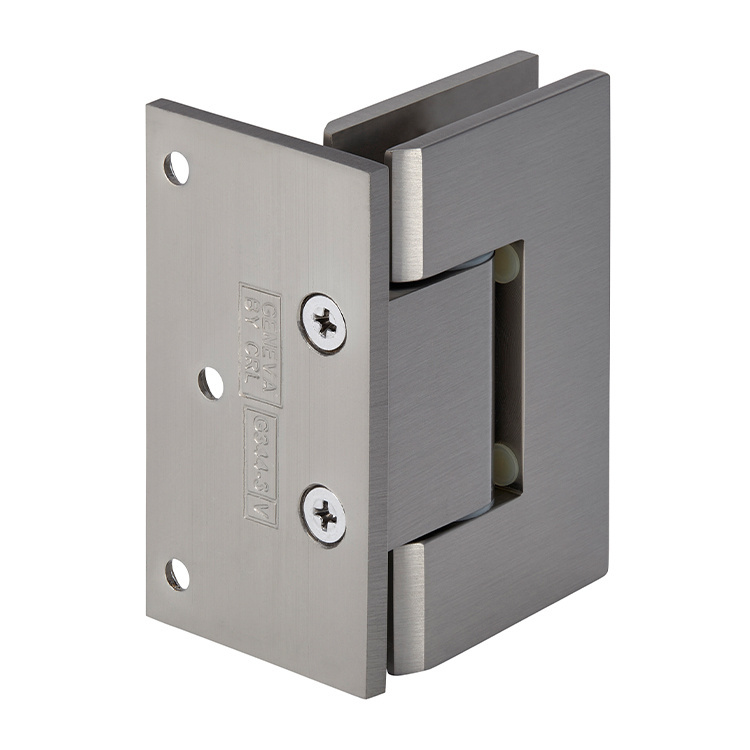

C.R. Laurence GEN344BN Brushed Nickel Adjustable Wall Mount Offset Back Plate Hinge is designed to elevate the functionality and aesthetics of your glass doors. This innovative hinge allows for adjustment to any angle up to 90 degrees without the need to remove the door, making installation and modifications a breeze. Simply loosen the Allen set screws to find your desired closed position, and your door will self-center effortlessly when tightened. Crafted from durable solid brass and finished in elegant brushed nickel, this hinge complements a variety of designs while ensuring long-lasting performance. It accommodates monolithic tempered glass with a thickness of 5/16" to 1/2" (8 to 12 mm) and supports door weights of up to 120 lbs. (54.4 kg) when using three hinges. The hinge swings both inward and outward, offering flexibility in door placement. Included with the hinge are gaskets, screws, and cut-out dimensions, ensuring you have everything needed for a secure installation. Please note that for optimal performance, the use of the specified template is crucial. With a three-year warranty, you can trust in the quality and reliability of the C.R. Laurence GEN344BN hinge for both residential and hotel shower applications.

Brushed Nickel Adjustable Wall Mount Offset Back Plate Hinge

• Adjustable to Any Angle up to 90 Degree without Having to Take Door Down
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

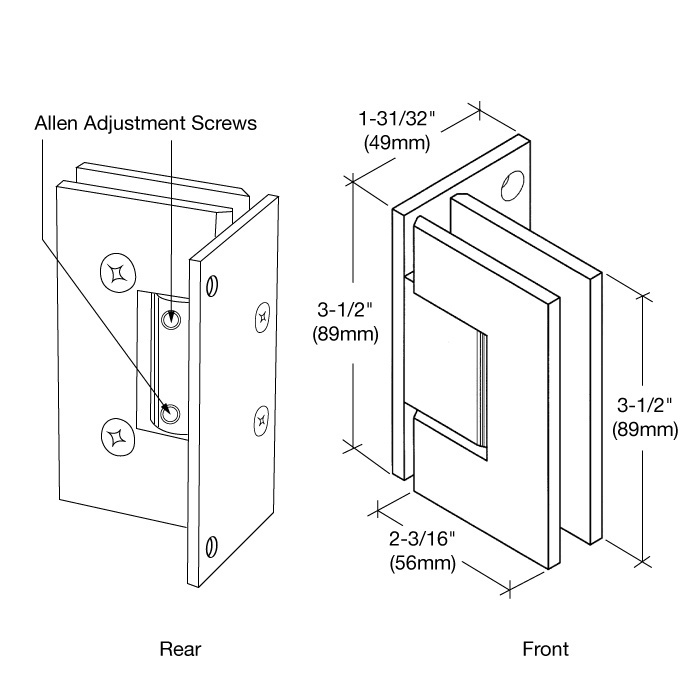

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.


SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position)
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
