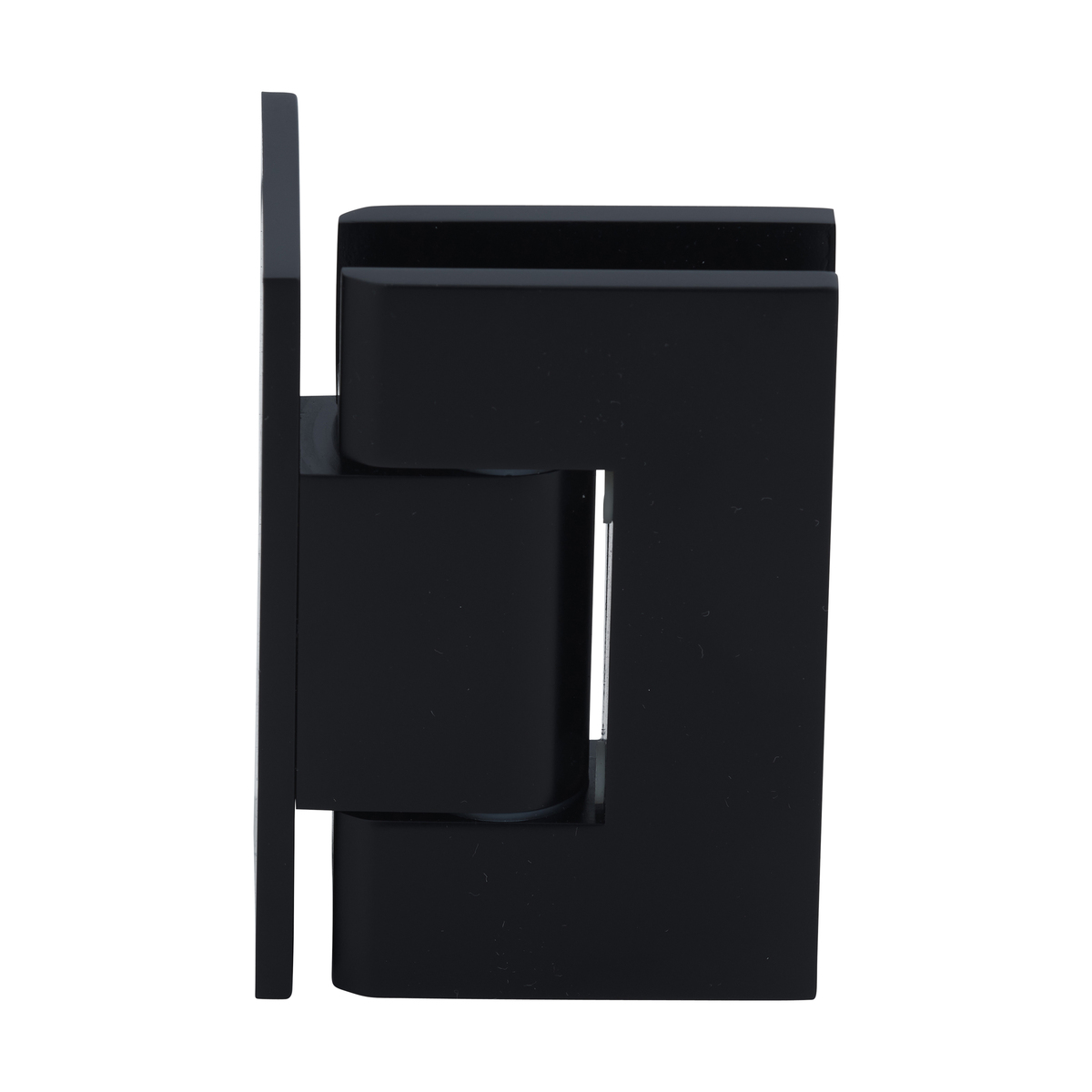

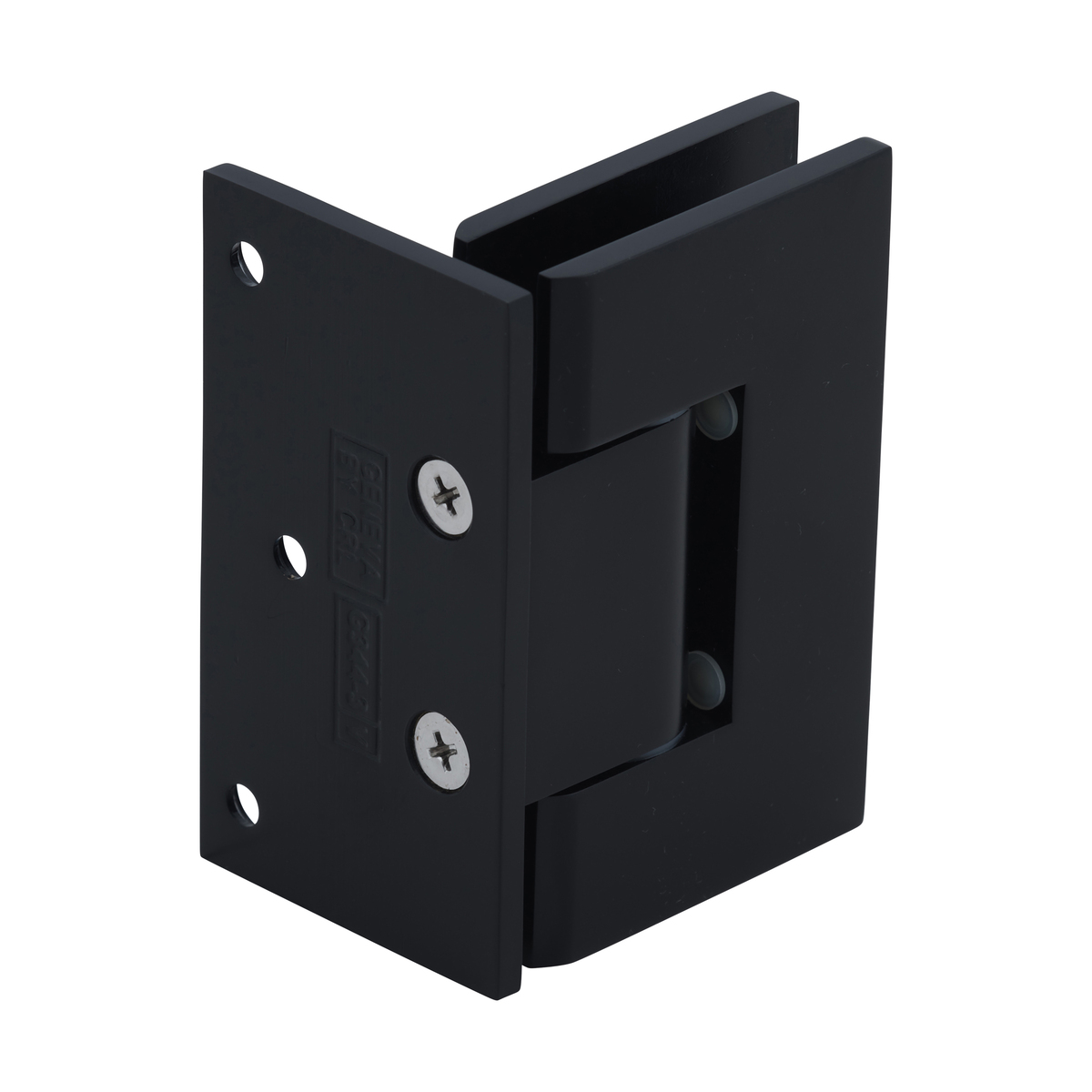

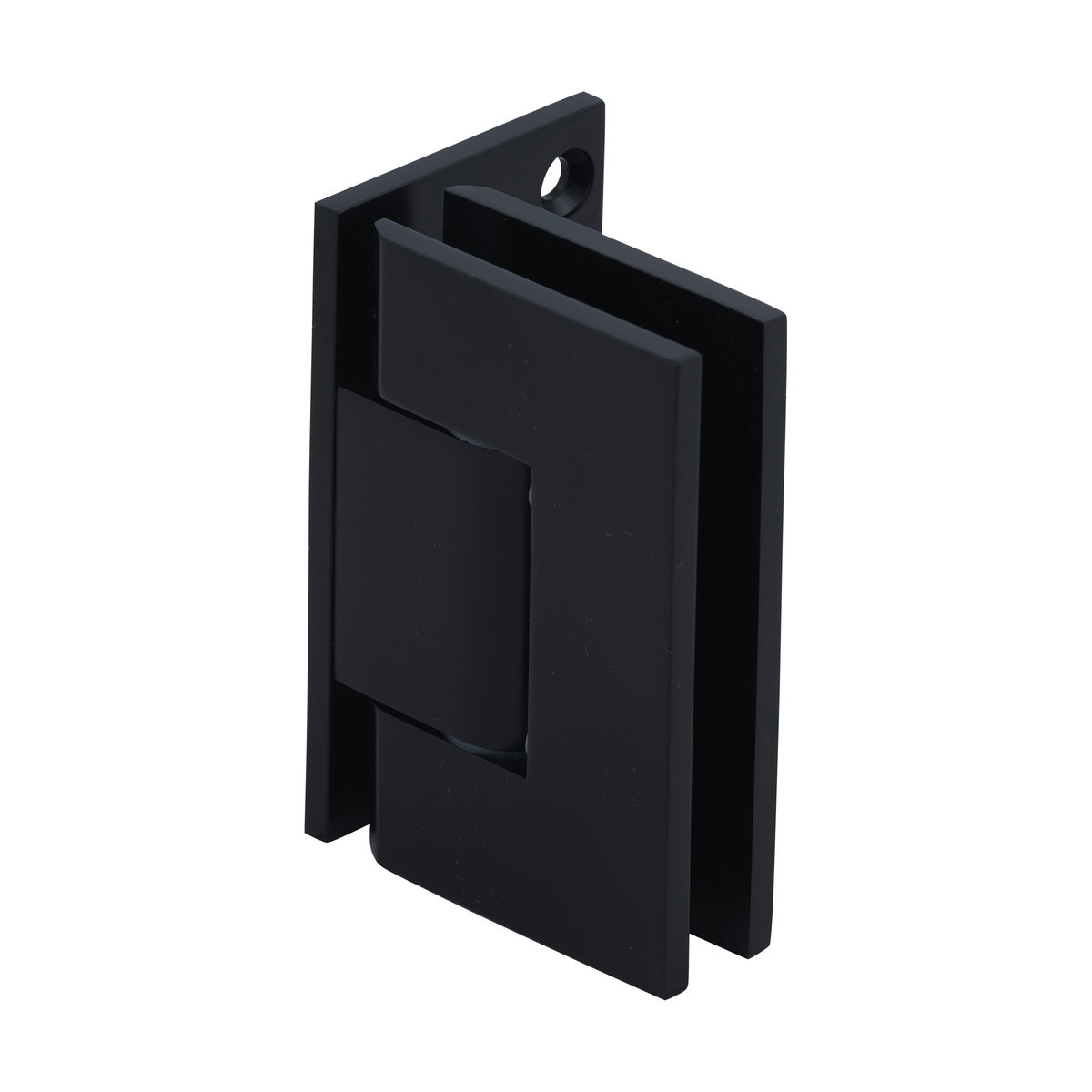

CRL GEN344MBL Matte Black Adjustable Wall Mount Offset Back Plate Hinge

CRL GEN344MBL Matte Black Adjustable Wall Mount Offset Back Plate Hinge

C.R. Laurence GEN344MBL Matte Black Adjustable Wall Mount Offset Back Plate Hinge is designed to elevate your shower door installation with its innovative functionality and sleek aesthetic. This hinge allows for adjustment to any angle up to 90 degrees without the need to remove the door, making it exceptionally user-friendly. Once installed, simply loosen the Allen set screws, adjust the door to your desired position, and retighten for a secure, self-centering closure. Constructed from solid brass, the GEN344MBL is not only durable but also visually appealing, available in several elegant finishes to complement your bathroom décor. It accommodates monolithic tempered glass with a thickness ranging from 5/16" to 1/2" (8 mm to 12 mm), ensuring a robust setup suitable for residential or hotel use. The hinge swings 90 degrees inward and outward, with a self-centering feature that activates when the door is within 15 degrees of the closed position. With a maximum door weight of 120 lbs when using three hinges, and a width capacity of up to 32 inches, this hinge is both versatile and reliable. Backed by a three-year warranty, the C.R. Laurence GEN344MBL is a dependable choice for your glazing needs.

Matte Black Adjustable Wall Mount Offset Back Plate Hinge

• Adjustable to Any Angle up to 90 Degree without Having to Take Door Down
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.


SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position)
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
