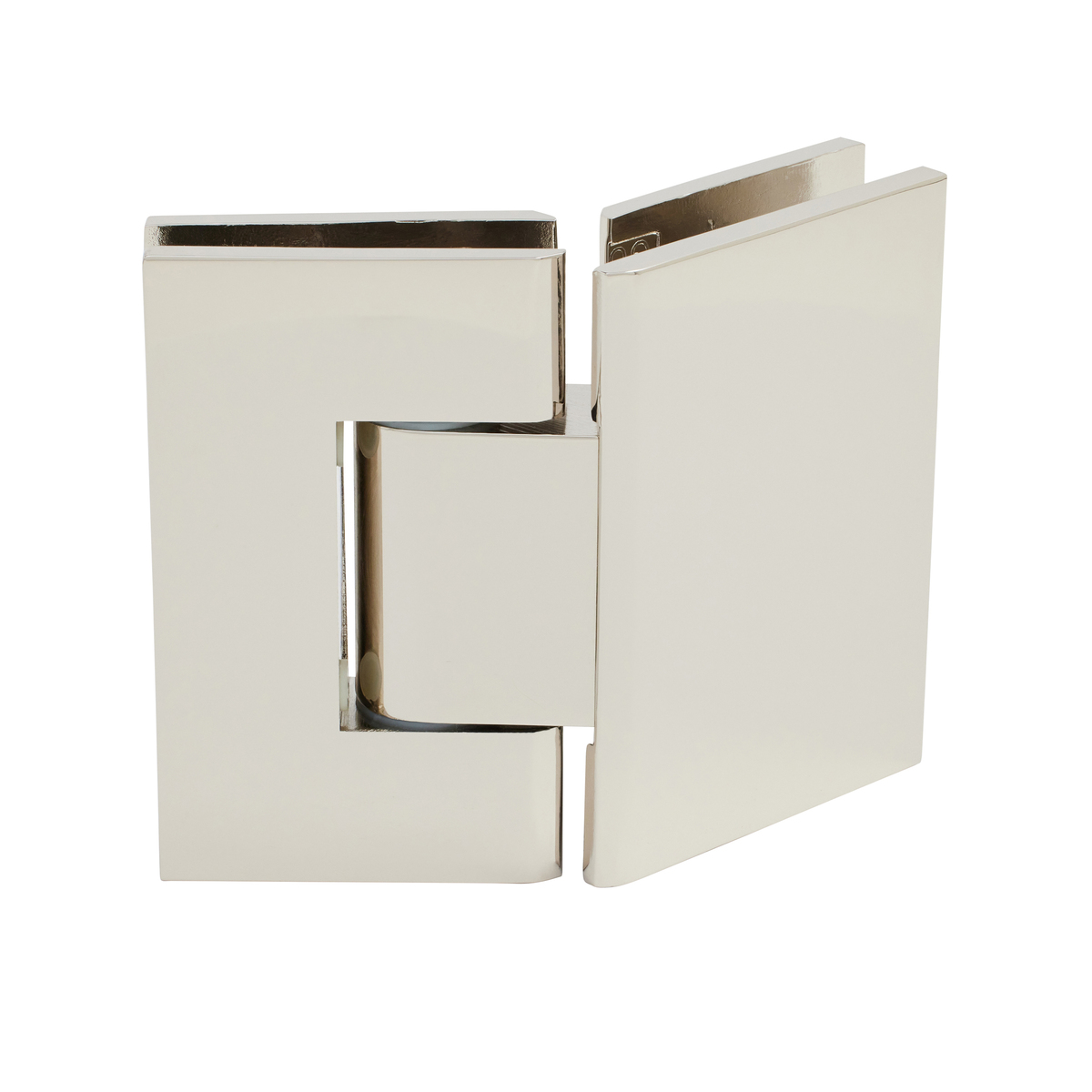

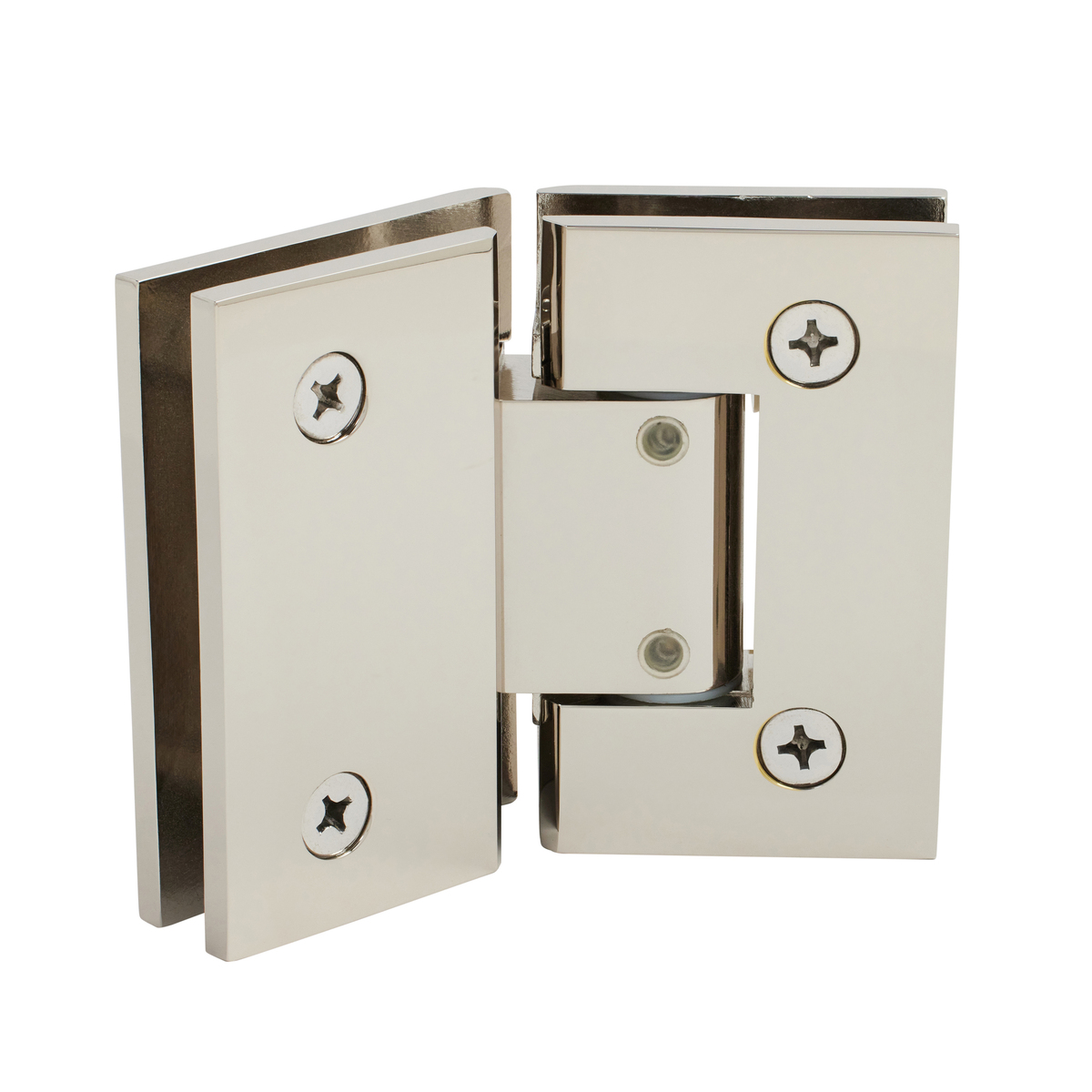

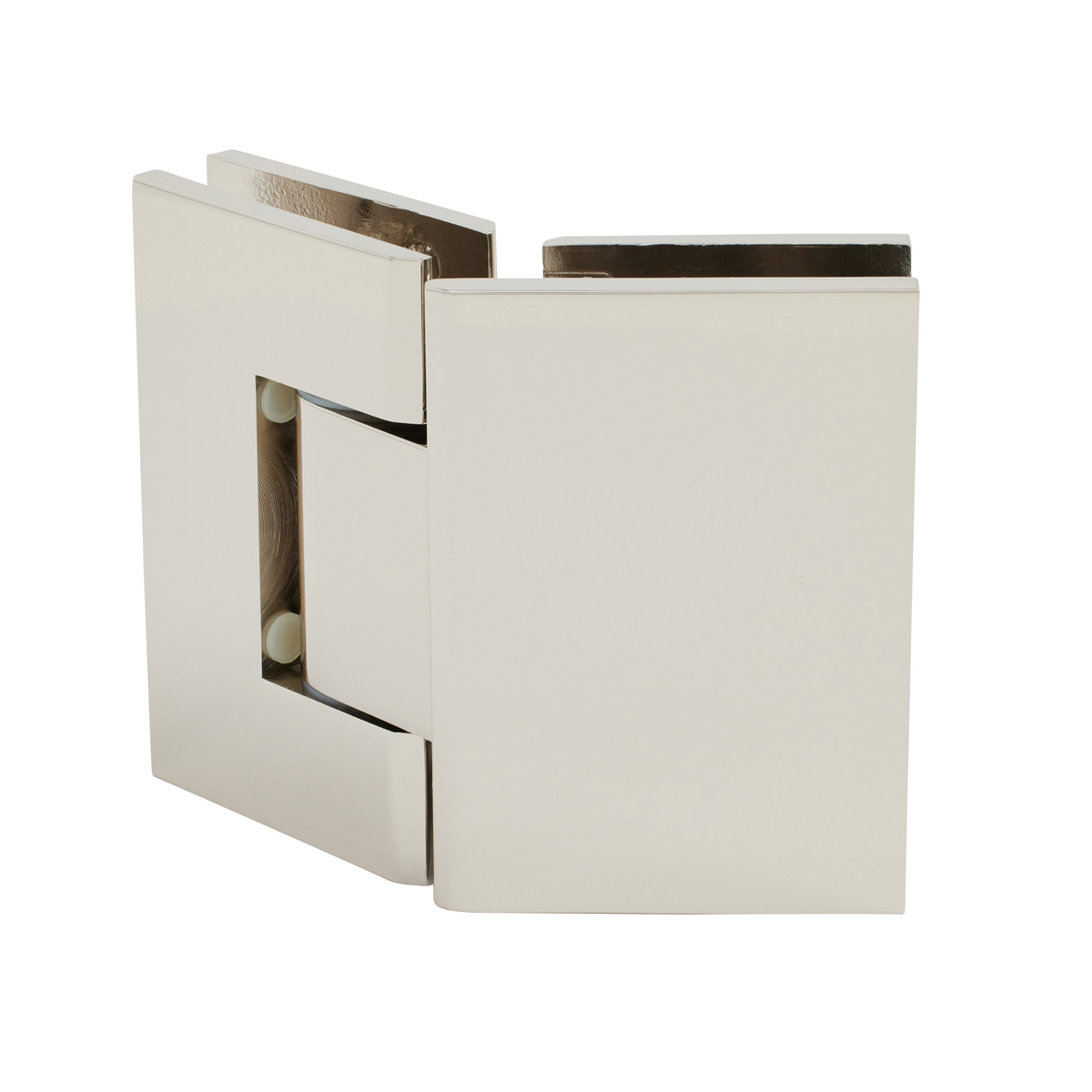

CRL GEN345PN Polished Nickel Geneva 345 Adjustable 135 Glass-to-Glass Hinge

CRL GEN345PN Polished Nickel Geneva 345 Adjustable 135 Glass-to-Glass Hinge

C.R. Laurence GEN345PN Polished Nickel Geneva 345 Series Adjustable 135 Degree Glass-to-Glass Hinge offers unparalleled flexibility and style for your shower door installations. This innovative hinge allows for adjustments to be made at any angle up to 90 degrees without the need to remove the door, making installation straightforward and hassle-free. Once installed, simply loosen the Allen set screws, adjust to your desired position, and retighten for a self-centering door. Constructed from solid brass and available in a stunning polished nickel finish, this hinge complements a range of design aesthetics. The hinge supports doors weighing up to 80 lbs. (36 kg) with two hinges and up to 120 lbs. (54 kg) with three hinges, accommodating glass thicknesses of 5/16" (8 mm) to 1/2" (12 mm). This model features a dual swing capability, allowing the door to open 90 degrees inward and outward, while also enabling a snug fit against the jamb when adjusted. With a three-year warranty and customizable finish options available, the C.R. Laurence GEN345PN hinge is not only a practical choice but also enhances the overall elegance of your shower space. Please ensure to use the designated template for cut-out dimensions to guarantee compatibility.

Polished Nickel Geneva 345 Series Adjustable 135 Degree Glass-to-Glass Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• Three Year Warranty
• Adjustable 135 Degree Glass-to-Glass
• Use Monolithic Tempered Glass

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.


Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
