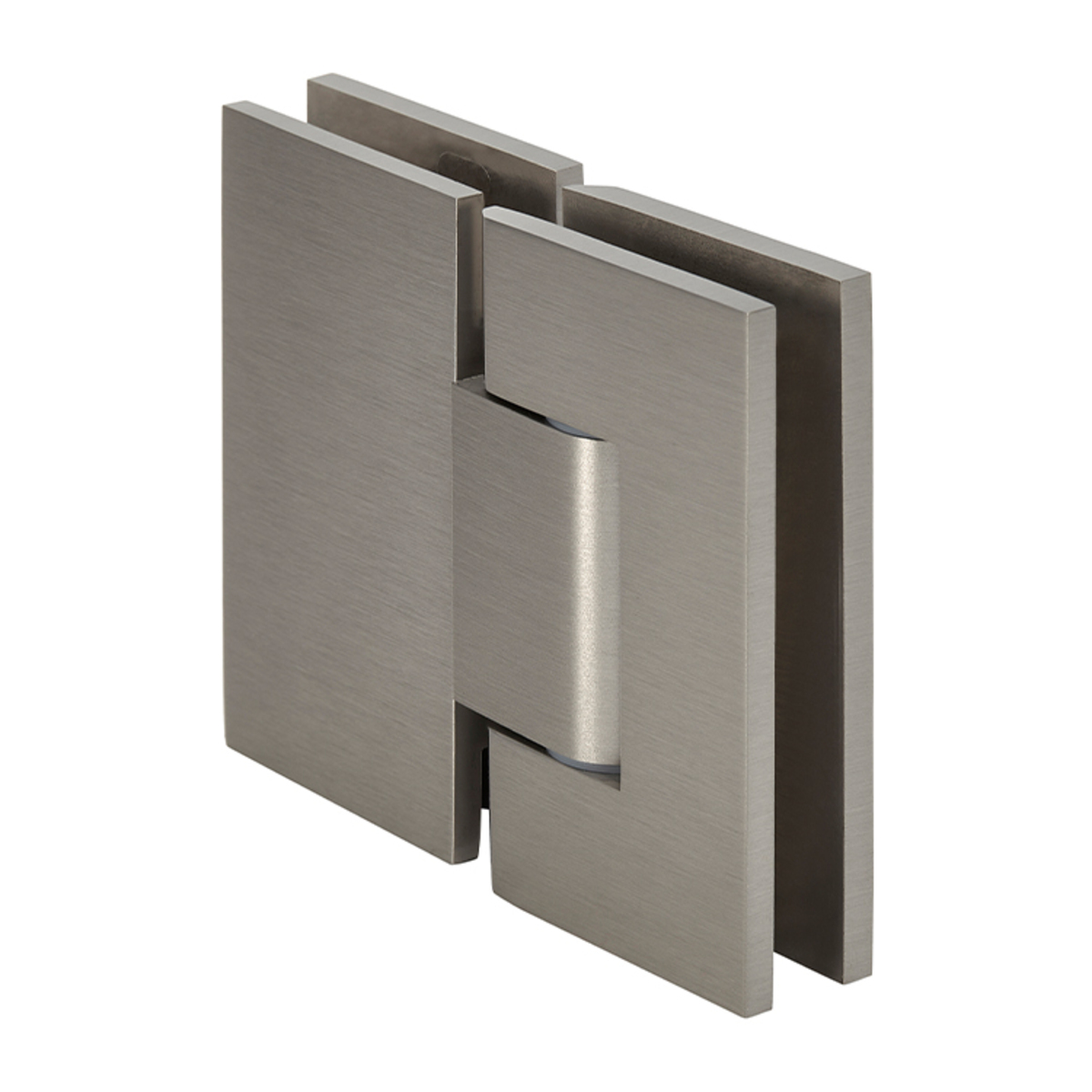

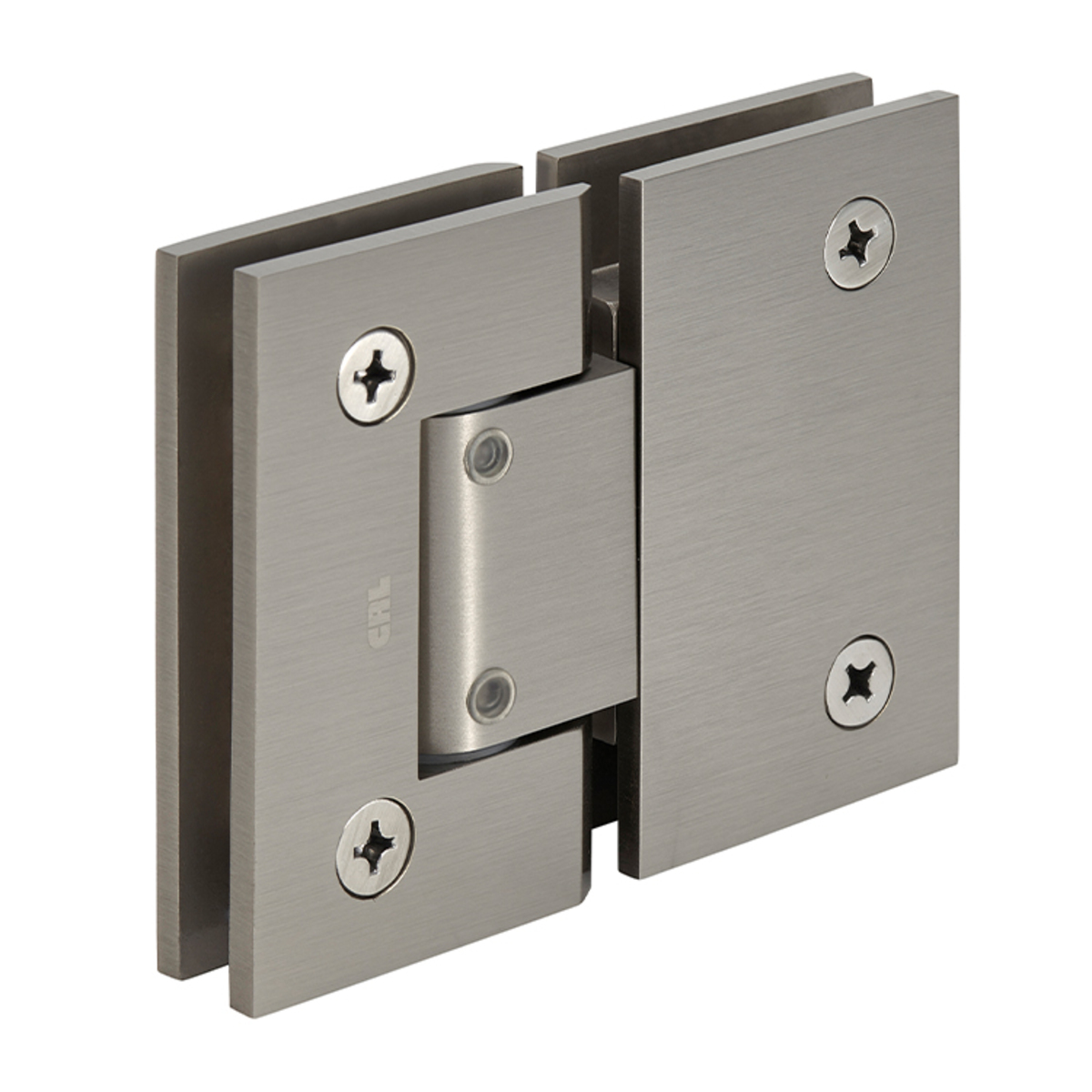

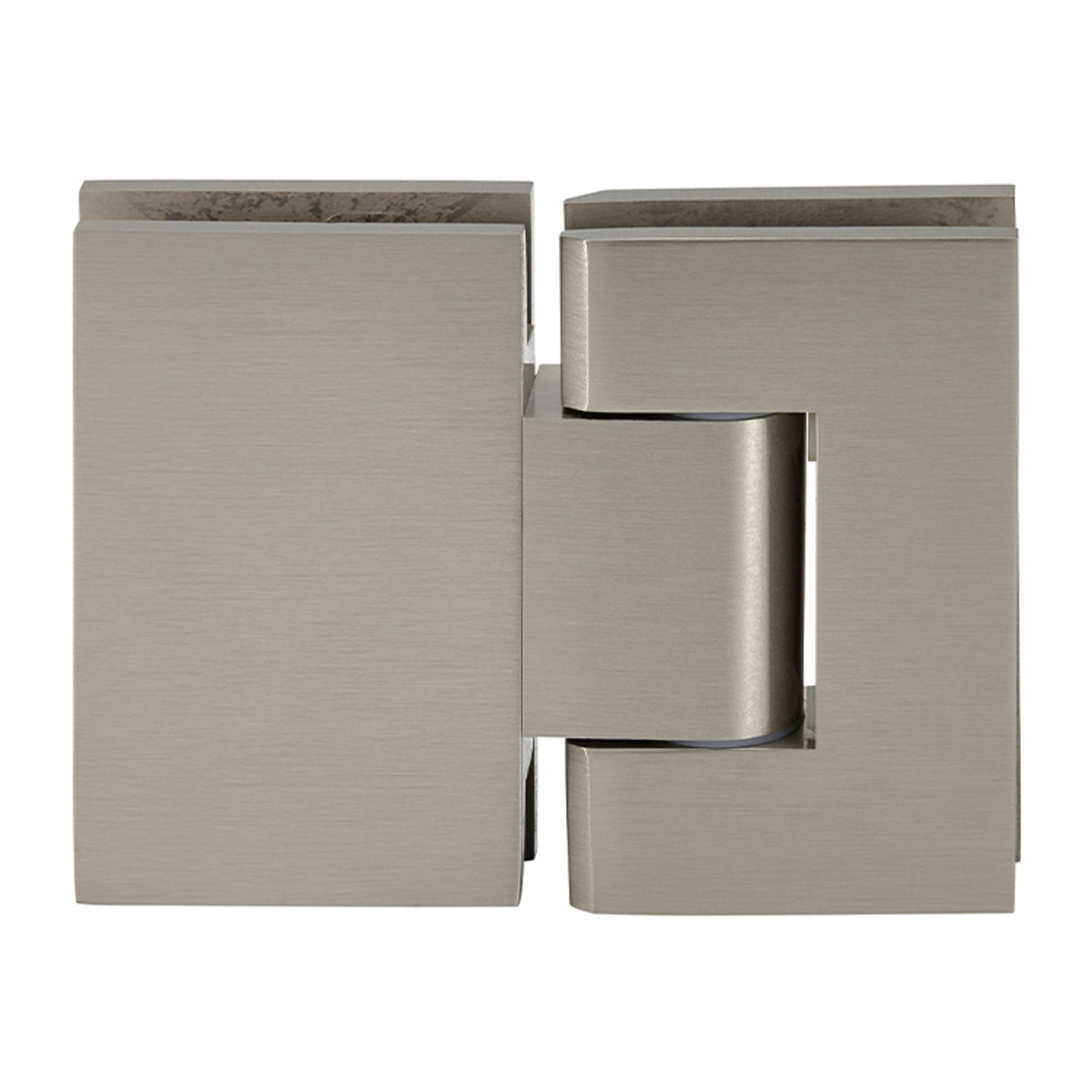

CRL GEN380BN Brushed Nickel Geneva 380 Adjustable 180 Glass-to-Glass Hinge

CRL GEN380BN Brushed Nickel Geneva 380 Adjustable 180 Glass-to-Glass Hinge

C.R. Laurence GEN380BN Brushed Nickel Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge is designed to elevate your shower door experience. This innovative hinge allows for adjustment to any angle up to 90 degrees without the need to remove the door, making installation and alignment effortless. Once installed, simply loosen the Allen set screws, adjust to the desired position, and retighten for a self-centering closure, ensuring a perfect fit every time. Crafted from solid brass and available in a stunning brushed nickel finish, the Geneva hinge not only offers durability but also enhances the aesthetic of any bathroom. It accommodates monolithic tempered glass with a thickness ranging from 5/16" (8 mm) to 1/2" (12 mm). Depending on the configuration, it can support doors weighing up to 120 lbs. (54 kg) with a maximum width of 32" (813 mm) when using three hinges. For an added touch of customization, the hinge can be finished in various styles upon request. Note that proper installation requires the use of the specified gasket pack (Cat. No. GEN13) for optimal performance. Elevate your glass door installations with the reliability and elegance of the C.R. Laurence Geneva hinge.

Brushed Nickel Geneva 380 Series Adjustable 180 Degree Glass-to-Glass Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• Three Year Warranty
• Adjustable 180 Degree Glass-to-Glass
• Use Monolithic Tempered Glass

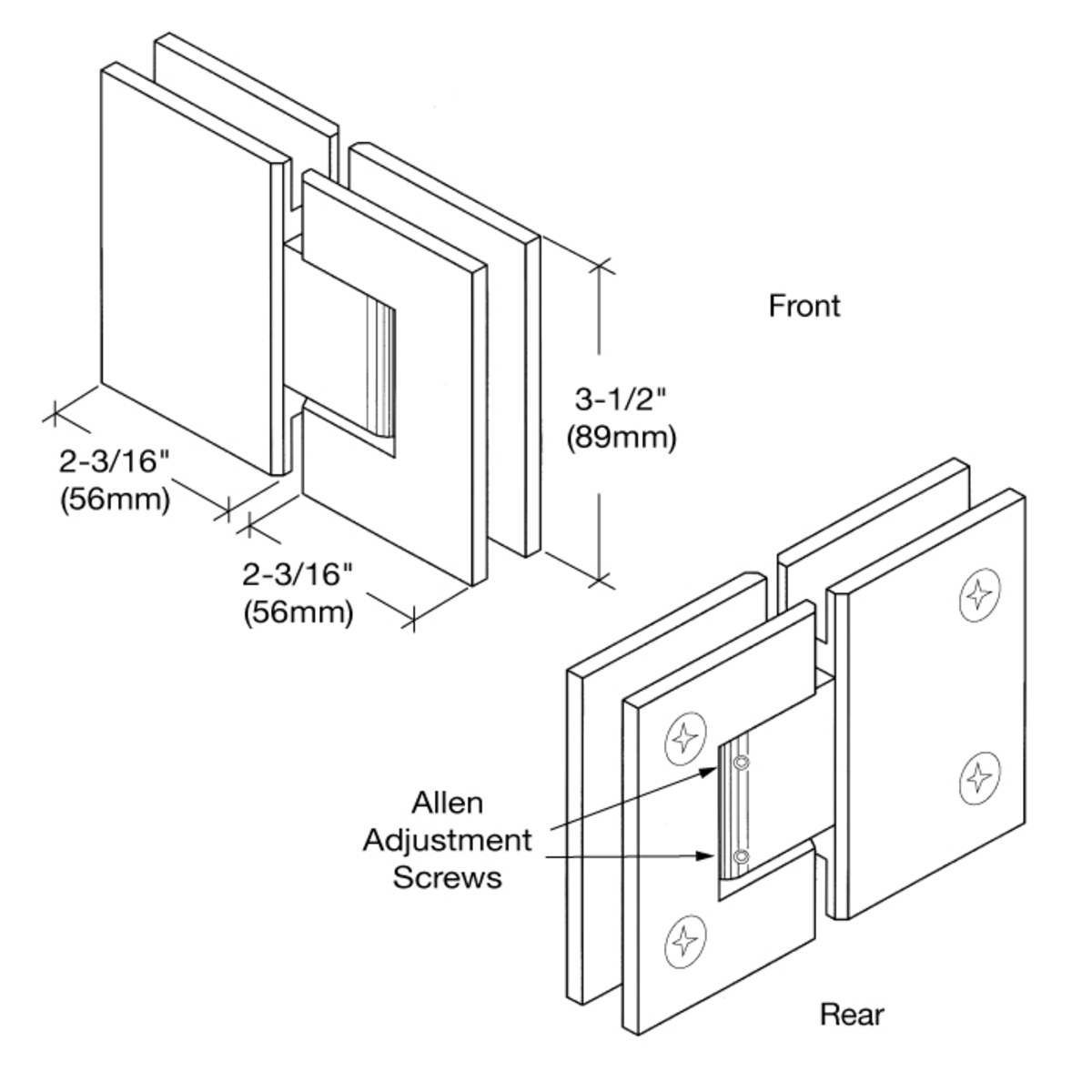

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.


Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
